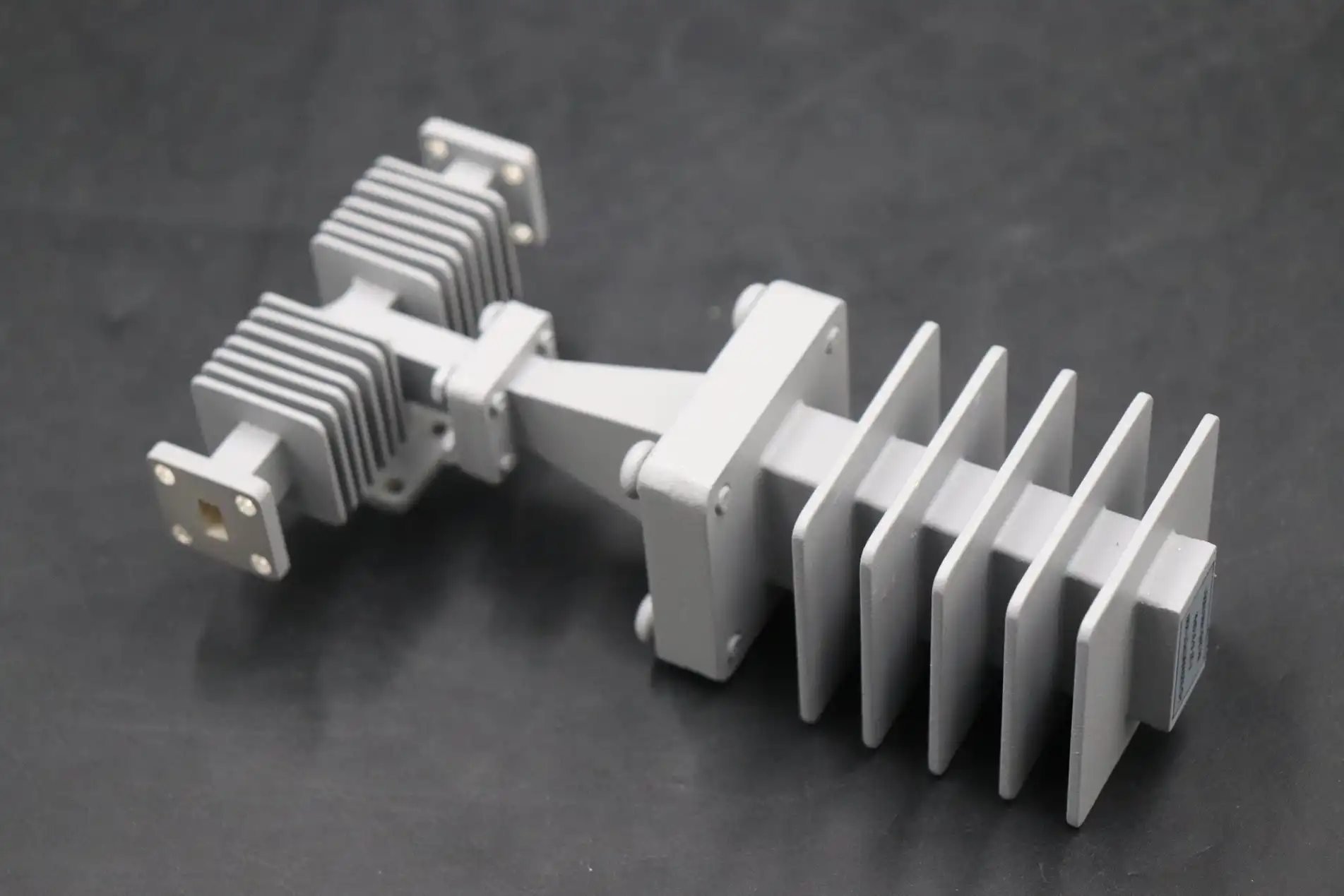

Magic Hybrid Tee
Magic Hybrid Tee Introduction
The Magic Hybrid Tee is a cutting-edge microwave component designed for precise power division and combining in communication and radar systems. Leveraging advanced technology and over 30 years of expertise, our delivers superior performance in a compact form, making it ideal for high-frequency applications in satellite communications, defense systems, and aerospace industries. With ISO:9001:2008 certification and RoHS compliance, you can trust our products for quality and reliability.

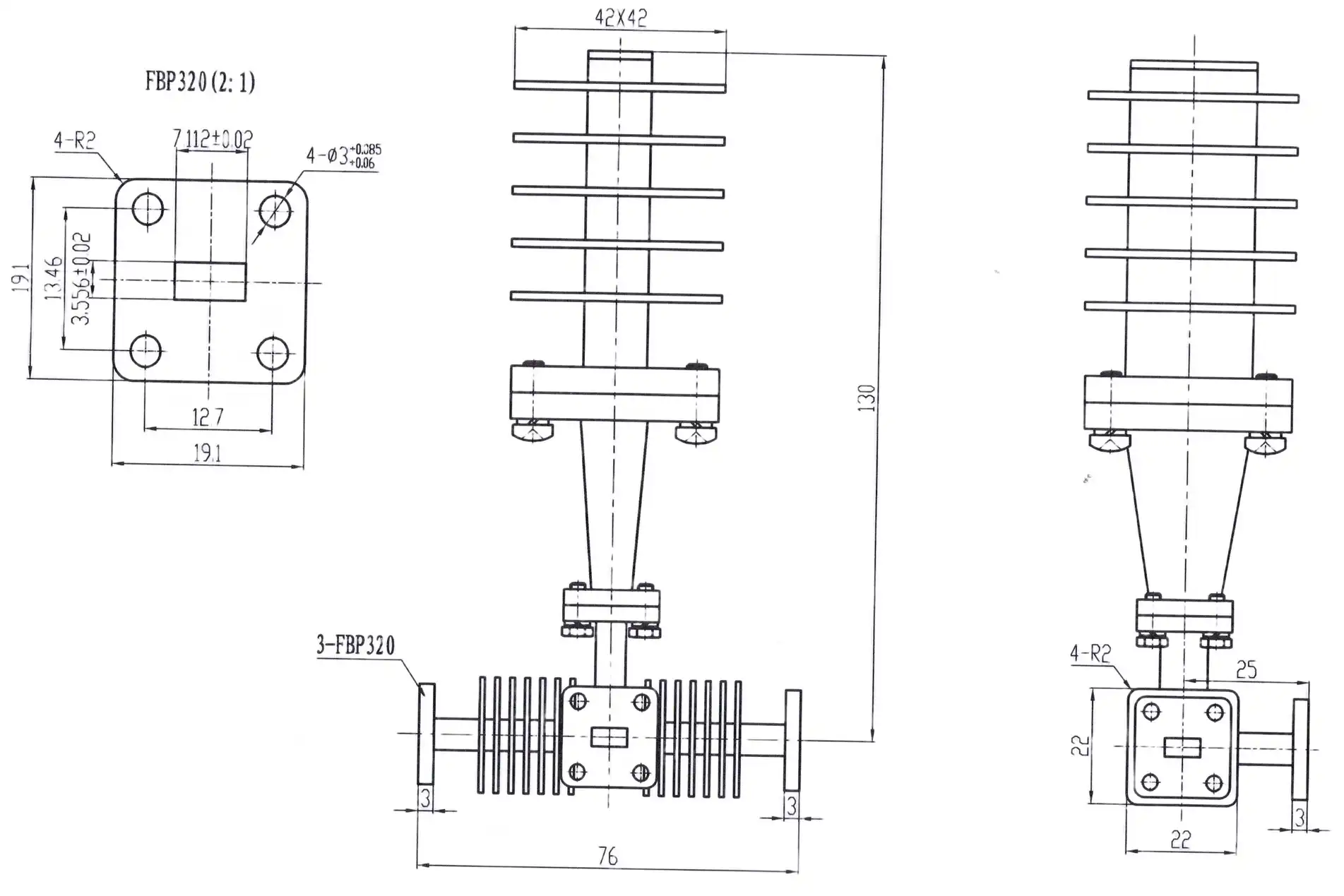

Product Specifications
Model No* | Freq Range(GHz) | Working bandwidth | VSWR | Isolation （E-H）(dB) | Unbalance (dB) | Flange | Material | Finish | |
H-Arm | E-Arm | ||||||||
ADM-3WMT | 0.32-0.49 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-4WMT | 0.35-0.53 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-5WMT | 0.41-0.62 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-6WMT | 0.49-0.75 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-8WMT | 0.64-0.98 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-9WMT | 0.75-1.15 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-12WMT | 0.96-1.46 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-14WMT | 1.13-1.73 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-18WMT | 1.45-2.20 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.25 | FDP | Al | Chromate conversion |
ADM-22WMT | 1.72-2.61 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-26WMT | 2.17-3.30 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-32WMT | 2.60-3.95 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-40WMT | 3.22-4.90 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-48WMT | 3.94-5.99 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-58WMT | 4.64-7.05 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Al | Chromate conversion |
ADM-70WMT | 5.38-8.17 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FDP | Cu | Silver Plating |
ADM-84WMT | 6.57-9.99 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-100WMT | 8.20-12.4 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-120WMT | 9.84-15.0 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-140WMT | 11.9-18.0 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-180WMT | 14.5-22.0 | ≤20% | ≤1.20 | ≤1.50 | ≥35 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-220WMT | 17.6-26.7 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-260WMT | 21.7-33.0 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-320WMT | 26.5-40.0 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.4 | FBP | Cu | Silver Plating |
ADM-400WMT | 32.9-50.1 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.5 | FUGP | Cu | Gold Plating |
ADM-500WMT | 39.2-59.6 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.5 | FUGP | Cu | Gold Plating |
ADM-620WMT | 49.8-75.8 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.5 | FUGP | Cu | Gold Plating |
ADM-740WMT | 60.5-91.9 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.5 | FUGP | Cu | Gold Plating |
ADM-900WMT | 73.8-112 | ≤20% | ≤1.20 | ≤1.50 | ≥30 | ≤0.5 | FUGP | Cu | Gold Plating |
Magic Hybrid Tee Benefits
- High-Performance: Low insertion loss and minimal signal reflection for optimal power distribution.
- Broad Frequency Range: Supports frequencies from 1 GHz to 110 GHz, catering to diverse high-frequency applications.
- Durability and Reliability: Built to withstand harsh environments, ensuring long-term performance even in critical applications.
- Compact Design: Space-efficient design, ideal for tight integration in advanced systems.
Technical Features
- Minimal Insertion Loss: With insertion loss as low as 0.2 dB, the Magic Hybrid Tee ensures maximum power transmission and minimal signal degradation.
- Stable Performance Across Frequency Ranges: Whether used in satellite communications or radar systems, the hybrid tee performs reliably across a wide spectrum of frequencies.
- Customizable Options: Tailored solutions to meet specific design and application requirements, including custom frequencies, connector types, and materials.
Product Applications
- Satellite Communications: Enables seamless power distribution in satellite communication systems, enhancing signal strength and stability.
- Aerospace and Defense: Essential for radar, navigation, and advanced weapon systems, where high performance and reliability are critical.
- Telecommunications: Supports base stations and communication networks by ensuring efficient power division and minimal signal loss.
- Radar Systems: Used in military and civilian radar applications for optimal power distribution and system integration.
OEM Services
At Advanced Microwave Technologies, we recognize that every project comes with its own set of challenges and unique requirements. That's why we offer a range of tailored OEM services designed to provide flexible, reliable solutions for your specific needs.Our customization services allow for precise adjustments to key parameters, including frequency ranges, connectors, and materials, ensuring that each product is perfectly suited to your application. Whether you're working with specialized frequencies, unique connector types, or specific environmental conditions, we have the expertise to make it happen.
FAQ
Q1: What is the frequency range of it?
It operates across a broad frequency range from 1 GHz to 110 GHz, making it suitable for a variety of high-frequency applications.
Q2: Can it be customized for specific applications?
Yes, we offer customization options for size, material, frequency range, and connector types to meet your specific requirements.
Q3: Is it RoHS compliant?
Yes, our product is RoHS compliant, ensuring that it meets environmental and safety standards.
Q4: What industries benefit from using the Magic Hybrid Tee?
It is ideal for use in satellite communications, aerospace and defense, radar systems, and telecommunications.
