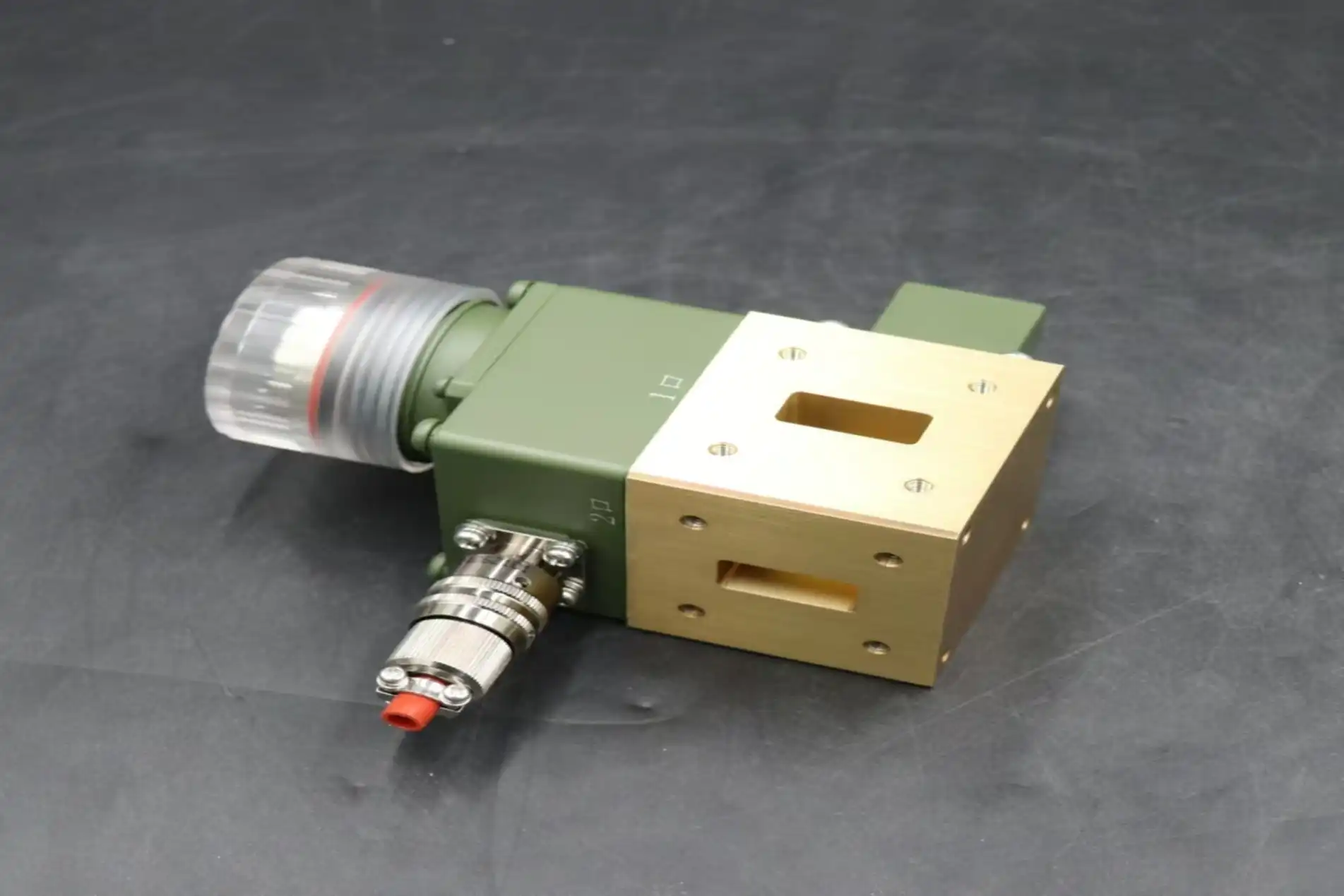

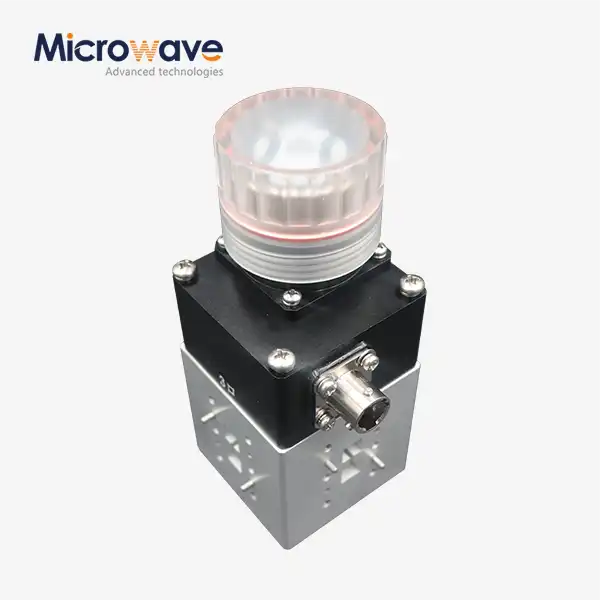

Waveguide Electromechanical Switch introduction

Waveguide Electromechanical Switches are crucial components in modern microwave and RF systems, designed to optimize signal routing with unmatched precision and reliability. At Advanced Microwave Technologies Co., Ltd, we leverage over 30 years of expertise in microwave components to deliver superior-quality switches that meet the rigorous demands of satellite communications, defense, aerospace, and navigation industries. Backed by ISO:9001:2008 certification and RoHS compliance, our switches ensure quality and environmental sustainability.

Product Specifications

WG Electromechanical Switch Product Range
MODEL NO	FREQ RANGE	VSWR	INSERTION LOSS	ISOLATION	SWITCHING TIME	FLANGE TYPE	MATERIAL	WG TYPE (IEC/EIA)
MODEL NO	(GHz)	Max	(dB) Max	(dB) Min	(ms) Max
ADM-22WDESMD	1.72-2.61	1.1	0.1	70	300	UDR	AL	R22/WR430
ADM-32WDESMD	2.60-3.95	1.1	0.1	70	300	UDR	AL	R32/WR284
ADM-40WDESMD	3.22-4.90	1.1	0.1	70	150	UDR	AL	R40/WR229
ADM-48WDESMD	3.94-5.99	1.1	0.1	70	150	UDR	AL	R48/WR187
ADM-58WDESMD	4.64-7.05	1.15	0.15	70	150	UDR	AL	R58/WR159
ADM-70WDESMD	5.38-8.17	1.15	0.15	70	80	UDR	AL	R70/WR137
ADM-84WDESMD	6.57-9.99	1.15	0.15	70	80	UBR	AL	R84/WR112
ADM-100WDESMD	8.20-12.5	1.15	0.15	70	80	UBR	AL	R100/WR90
ADM-120WDESMD	9.84-15.0	1.15	0.15	70	80	UBR	AL	R120/WR75
ADM-140WDESMD	11.9-18.0	1.15	0.15	70	80	UBR	AL	R140/WR62
ADM-180WDESMD	14.5-22.0	1.15	0.2	60	80	UBR	AL	R180/WR51
ADM-220WDESMDC	18-26.5	1.15	0.2	55	80	UBR	Cu/AL	R220/WR42
ADM-260WDESMDC	21.7-33.0	1.15	0.3	55	80	UBR	Cu/AL	R260/WR34
ADM-320WDESMDC	26.5-40.0	1.15	0.3	55	80	UBR	Cu/AL	R320/WR28
ADM-400WDESMD	33-50	1.15	0.3	45	80	UG-383/U	Cu	R400/WR22
ADM-500WDESMD	40-60	1.2	0.5	45	80	UG-383/U-M	Cu	R500/WR22
ADM-620WDESMD	50-75	1.2	0.5	45	80	UG-385/U	Cu	R620/WR22
ADM-740WDESMD	60-90	1.2	0.8	40	80	UG-387/U	Cu	R740/WR22
ADM-900WDESMD	75-110	1.2	1	40	80	UG-387/U-M	Cu	R900/WR22

Waveguide Electromechanical Switch Benefits

High Frequency Support: Enables seamless operation across a broad spectrum, ideal for advanced communication systems.
Low Insertion Loss: Ensures minimal signal degradation for superior transmission quality.
Durable Design: Built for high reliability under extreme environmental conditions.
Customizable Options: Tailored to meet unique application demands for size, material, or frequency range.

Technical Features

Waveguide electromechanical switches are known for their high precision, reliability, and minimal signal loss. They are designed to operate efficiently in microwave and RF systems, with the ability to handle high power levels and frequencies without compromising performance. These switches feature low insertion loss, fast switching speeds, and excellent durability, making them ideal for high-performance applications. Their electromechanical design allows for precise control of signal routing, ensuring stable operation even in harsh environments. Additionally, the products are highly resistant to thermal and mechanical stress, providing long-term reliability in demanding conditions such as aerospace, defense, and telecommunications systems.

Advanced Actuation Mechanism: Ensures precise and rapid switching with low power consumption.
Robust Material Construction: Manufactured using premium-grade materials to withstand high power and environmental stress.
Wide Compatibility: Supports diverse frequency bands and integrates seamlessly with waveguides, couplers, and flanges.
Enhanced Stability: Maintains stable performance under high-temperature variations.

Waveguide Electromechanical Switch Applications

Our Waveguide Electromechanical Switch is critical components in high-frequency communication systems, radar equipment, and satellite technologies. These switches are designed to control the flow of electromagnetic signals in waveguide-based systems with high precision and minimal loss. They are extensively used in microwave and RF systems, facilitating signal routing in applications such as telecommunications, aerospace, defense, and scientific research. Their reliability and durability make them ideal for military and space exploration applications, where consistent performance under demanding conditions is essential. These switches also play a key role in improving system efficiency, ensuring seamless operation in complex electronic and communication infrastructures.

Satellite Communications: Ensures reliable signal routing in satellite ground stations and on-orbit systems.
Defense and Aerospace: Supports navigation, radar, and advanced weapon systems with precision switching capabilities.
Telecommunication Infrastructure: Optimizes base station and signal relay performance in modern networks.

OEM Services

At Advanced Microwave Technologies, we offer comprehensive OEM services to meet specific client needs. Our capabilities include:

Customization: Tailor designs for unique size, frequency, or power requirements.
Technical Support: Installation guidance, product integration assistance, and fault diagnosis.
Global Delivery: Efficient logistics to ensure timely delivery across the globe.
