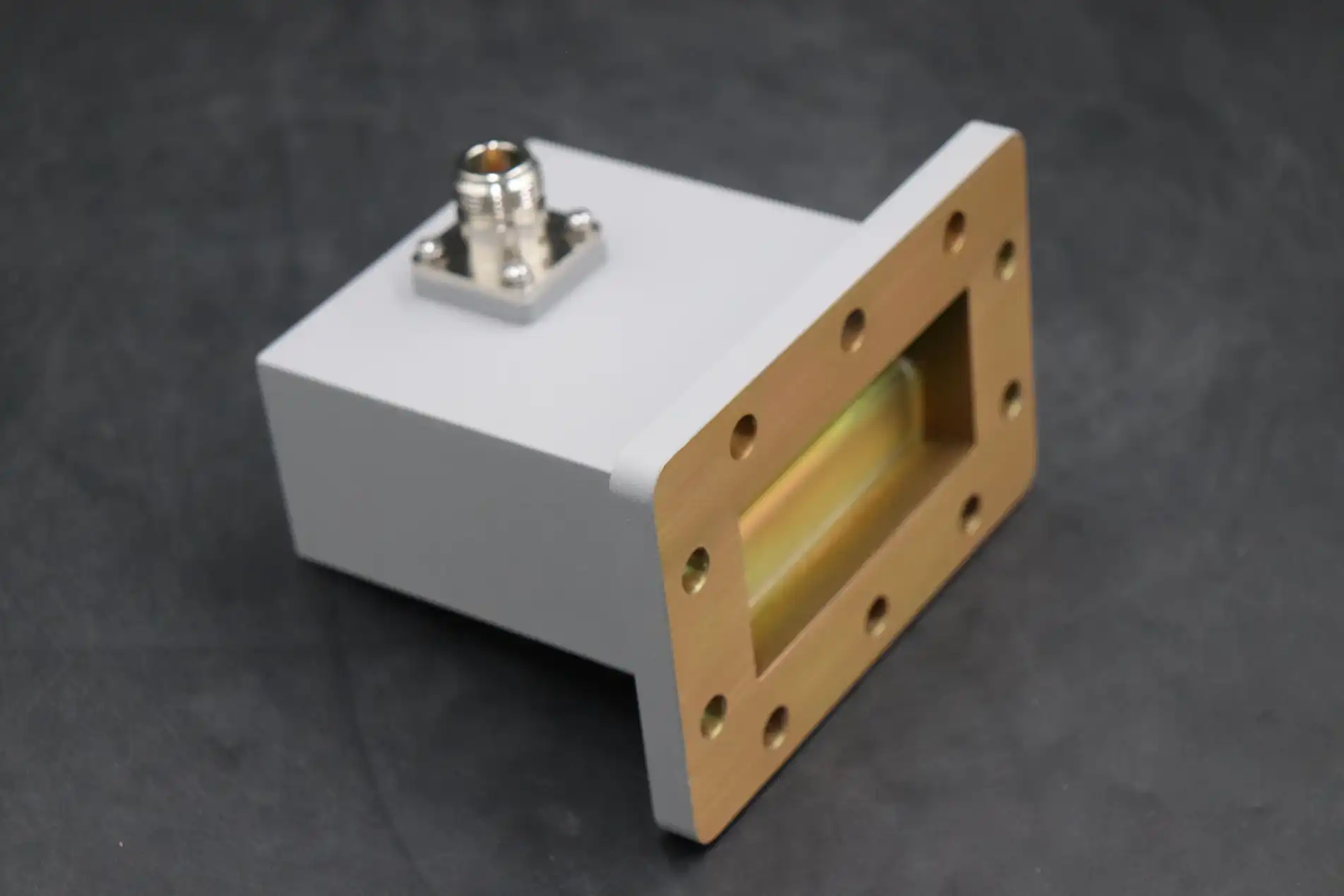

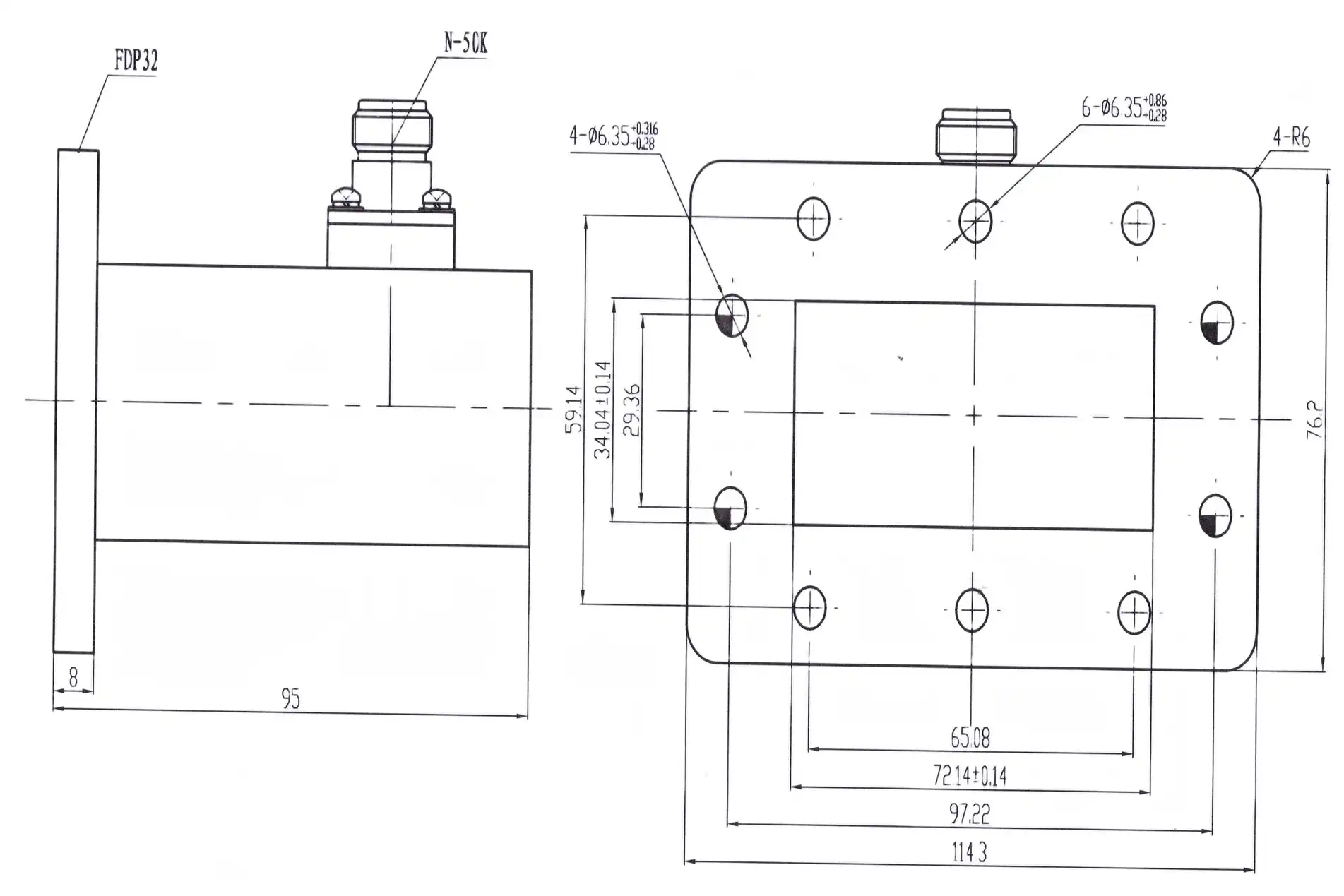

Right Angle Waveguide to Coaxial Adapter

The Right Angle Waveguide to Coaxial Adapter bridges the gap between waveguide and coaxial transmission lines, offering a seamless connection that ensures efficient signal transfer. This specialized component is ideal for industries like satellite communications, aerospace, and defense, where precision and performance are paramount. At Advanced Microwave Technologies Co., Ltd, we bring over 30 years of expertise in designing and manufacturing cutting-edge microwave components. Our adapters meet ISO:9001:2008 standards, are RoHS compliant, and support customization to cater to diverse application needs.

Product Specifications

Model No*	Freq Range (GHz)	VSWR	IL（dB）	Connector	Avg Power（W）	Length L（mm)	Flange	Material	Finish
ADM-3WCAN	0.32-0.49	≤1.25	≤0.2	N-K	100	500	FDP	Al	Chromate conversion
ADM-4WCAN	0.35-0.53	≤1.25	≤0.2	N-K	100	450	FDP	Al	Chromate conversion
ADM-5WCAN	0.41-0.62	≤1.25	≤0.2	N-K	100	400	FDP	Al	Chromate conversion
ADM-6WCAN	0.49-0.75	≤1.25	≤0.2	N-K	100	350	FDP	Al	Chromate conversion
ADM-8WCAN	0.64-0.98	≤1.25	≤0.2	N-K	100	240	FDP	Al	Chromate conversion
ADM-9WCAN	0.75-1.15	≤1.25	≤0.2	N-K	100	209	FDP	Al	Chromate conversion
ADM-12WCAN	0.96-1.46	≤1.25	≤0.2	N-K	100	166	FDP	Al	Chromate conversion
ADM-14WCAN	1.13-1.73	≤1.25	≤0.2	N-K	100	150	FDP	Al	Chromate conversion
ADM-18WCAN	1.45-2.20	≤1.25	≤0.2	N-K	100	120	FDP	Al	Chromate conversion
ADM-22WCAN	1.72-2.61	≤1.25	≤0.2	N-K	100	100	FDP	Al	Chromate conversion
ADM-26WCAN	2.17-3.30	≤1.25	≤0.2	N-K	100	85	FDP	Al	Chromate conversion
ADM-32WCAN	2.60-3.95	≤1.25	≤0.2	N-K	100	72	FDP	Al	Chromate conversion
ADM-40WCAN	3.22-4.90	≤1.25	≤0.2	N-K	100	65	FDP	Al	Chromate conversion
ADM-48WCAN	3.94-5.99	≤1.25	≤0.2	N-K	100	54	FDP	Al	Chromate conversion
ADM-48WCAS	3.94-5.99	≤1.25	≤0.2	SMA-K	50	67	FDP	Al	Chromate conversion
ADM-58WCAN	4.64-7.05	≤1.25	≤0.2	N-K	100	50	FDP	Al	Chromate conversion
ADM-58WCAS	4.64-7.05	≤1.25	≤0.2	SMA-K	50	52	FDP	Al	Chromate conversion
ADM-70WCAN	5.38-8.17	≤1.25	≤0.3	N-K	100	48	FDP	Cu	Silver Plating
ADM-70WCAS	5.38-8.17	≤1.25	≤0.3	SMA-K	50	45	FDP	Cu	Silver Plating
ADM-84WCAN	6.57-9.99	≤1.25	≤0.3	N-K	100	40	FBP	Cu	Silver Plating
ADM-84WCAS	6.57-9.99	≤1.25	≤0.3	SMA-K	50	35	FBP	Cu	Silver Plating
ADM-100WCAN	8.20-12.4	≤1.25	≤0.3	N-K	100	35	FBP	Cu	Silver Plating
ADM-100WCAS	8.20-12.4	≤1.25	≤0.3	SMA-K	50	33	FBP	Cu	Silver Plating
ADM-120WCAN	9.84-15.0	≤1.25	≤0.3	N-K	100	33	FBP	Cu	Silver Plating
ADM-120WCAS	9.84-15.0	≤1.25	≤0.3	SMA-K	50	30	FBP	Cu	Silver Plating
ADM-140WCAN	11.9-18.0	≤1.25	≤0.3	N-K	100	32	FBP	Cu	Silver Plating
ADM-140WCAS	11.9-18.0	≤1.25	≤0.3	SMA-K	50	27	FBP	Cu	Silver Plating
ADM-180WCAS	14.5-22.0	≤1.25	≤0.3	SMA-K	30	27	FBP	Cu	Silver Plating
ADM-220WCAS	17.6-26.0	≤1.25	≤0.3	SMA-K	30	25	FBP	Cu	Silver Plating
ADM-220WCAK	17.6-26.7	≤1.25	≤0.3	2.92-K	50	30	FBP	Cu	Gold Plating
ADM-220WCAV	17.6-26.7	≤1.25	≤0.3	2.4-K	30	30	FBP	Cu	Gold Plating
ADM-260WCAK	21.7-33.0	≤1.25	≤0.3	2.92-K	50	30	FBP	Cu	Gold Plating
ADM-260WCAV	21.7-33.0	≤1.25	≤0.3	2.4-K	30	30	FBP	Cu	Gold Plating
ADM-320WCAK	26.5-40.0	≤1.25	≤0.3	2.92-K	50	26	FBP	Cu	Gold Plating
ADM-320WCAV	26.5-40.0	≤1.25	≤0.3	2.4-K	30	26	FBP	Cu	Gold Plating
ADM-400WCAV	33.0-50.0	≤1.80	≤0.5	2.4-K	30	25	FUGP	Cu	Gold Plating
ADM-500WCA1.85	40.0-50.0	≤2.0	≤0.8	1.85-K	10	23	FUGP	Cu	Gold Plating
ADM-620WCA1.85	55.0-65.0	≤2.0	≤0.8	1.85-K	10	18	FUGP	Cu	Gold Plating
ADM-740WCA1.0	66.0-86.0	≤2.0	≤0.8	1.0-K	10	23	FUGP	Cu	Gold Plating
ADM-900WCA1.0	90.0-100.0	≤2.0	≤0.8	1.0-K	10	25	FUGP	Cu	Gold Plating

Right Angle Waveguide To Coaxial Adapter Benefits

Superior Performance: Minimized insertion loss and optimized signal stability ensure reliable transmission in critical applications.
Wide Frequency Range: Accommodates applications across telecommunications, radar, and satellite systems.
Durability: Built with high-quality materials to withstand demanding environmental conditions.
Ease of Integration: Precision engineering ensures seamless connectivity between waveguides and coaxial components.

Technical Features

Compact Right-Angle Design: Ideal for tight spaces without compromising performance.
Precision Machining: Ensures minimal signal reflection and low VSWR.
Wide Compatibility: Supports a variety of waveguide sizes and coaxial connectors.
Environmental Stability: Operates effectively in extreme temperatures and high-humidity environments.

Right Angle Waveguide To Coaxial Adapter Applications

Satellite Communications: Reliable signal routing in satellite uplink and downlink systems.
Radar Systems: Enhances signal precision for navigation and defense applications.
Aerospace: Designed for high-performance communication and detection systems in aircraft and spacecraft.
Telecommunications: Right Angle Waveguide To Coaxial Adapter Ensures efficient data transmission in base stations and network infrastructure.

OEM Services

At Advanced Microwave Technologies, we understand the importance of tailored solutions. Our OEM services include:

Custom Design and Manufacturing:OEM services for Right Angle Waveguide to Coaxial Adapters allow for custom design based on specific requirements. Manufacturers can design adapters to meet unique size, shape, and performance criteria tailored to your application. This includes adapting the waveguide and coaxial interface to fit particular standards or equipment.
Prototyping and Testing:OEM services often include prototyping and testing of the adapter before final production. This process ensures that the adapter meets all performance criteria, including low insertion loss, minimal reflections, and adequate power handling. Manufacturers can provide pre-production samples for validation.

FAQ

1. How do I install it?

Installation of the adapter is straightforward but requires care to avoid damaging the components. The waveguide port is typically attached to the waveguide using screws or other fasteners, while the coaxial port is connected using a coaxial cable with the appropriate connector. Always ensure the waveguide is properly aligned to avoid signal distortion.

2. Can I use this adapter for signal testing and measurement?

Yes, they are often used in signal testing environments. They allow for easy connection to test equipment such as spectrum analyzers, network analyzers, and power meters, enabling accurate measurements of RF signals across different stages of the system.

3. What is the typical lifespan of it?

The lifespan of these adapters can vary depending on the material quality, frequency of use, and environmental conditions. Generally, high-quality adapters have a long lifespan, especially if used in environments with controlled temperatures and low mechanical stress.

4. Are there any alternatives to it?

Yes, alternatives include straight waveguide-to-coaxial adapters, which may be preferred in setups where space constraints are less critical. Additionally, other types of coaxial connectors or transition devices could be used depending on the system’s specific needs.

Contact Us

For inquiries about our Right Angle Waveguide to Coaxial Adapter or to request a quote, please feel free to contact us at sales@admicrowave.com. Our team is ready to assit you!
