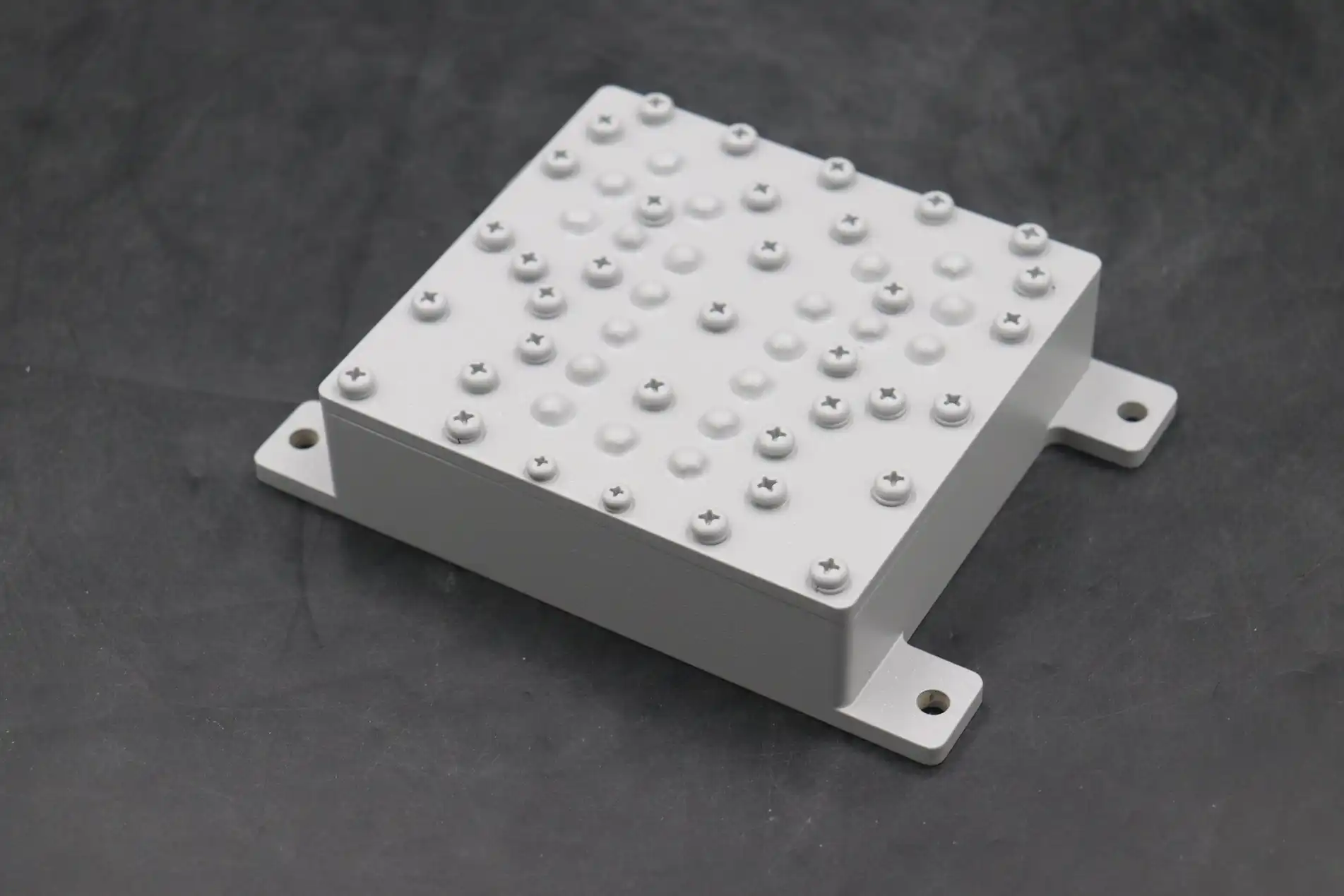

Coaxial Bandpass Filter

Advanced Microwave offers a Coaxial Bandpass Filter including standard coaxial and square cavity coaxial according to the cavity. They have the characteristics of high Q value, low loss, and small size. The operating frequency can range from RF band to microwave band and is widely used in narrow channel, low loss, and high out-of-band suppression occasions.

Coaxial Bandpass Filter Introduction

The Coaxial Bandpass Filter is a highly precise, compact, and reliable solution for managing frequency ranges in advanced microwave systems. Designed for optimal performance, this filter is crucial for applications that require accurate signal filtering while minimizing interference. Backed by over 30 years of expertise in microwave technology, our products meet stringent quality standards, making them ideal for satellite communications, defense, aerospace, and telecommunications. Our ISO 9001:2008-certified filters support frequencies up to 110 GHz and are fully customizable to meet your specific requirements, ensuring unparalleled adaptability and performance.

Product Specifications

Parameter	Description
Frequency Range	10 MHz – 110 GHz
Insertion Loss	≤ 1.0 dB
Return Loss	≥ 20 dB
Bandwidth	Customizable based on application
Power Handling	Up to 100W (dependent on design)
Connector Types	SMA, N-Type, or customizable
Compliance	ISO 9001:2008, RoHS

Coaxial Bandpass Filter Benefits

Superior Performance: The system is designed to deliver exceptional signal clarity, achieving low insertion loss and excellent return loss. These features ensure minimal signal degradation, providing high-quality transmission and superior performance in a wide range of applications.
Customizable Design: The Coaxial Bandpass Filter offers a high degree of flexibility, allowing users to tailor frequency ranges, bandwidth, and connectors to meet the specific needs of their system. This adaptability ensures compatibility with diverse setups, making it a versatile solution for various industries.
Durability: Built with high-grade materials, the system is engineered for long-lasting performance, even in demanding environments. Its robust construction guarantees reliable operation under harsh conditions, offering durability and minimizing maintenance needs.
Certified Quality: The system complies with ISO 9001:2008 standards, ensuring that it meets stringent quality requirements. This certification guarantees the product’s reliability, consistency, and adherence to international quality standards, making it a trusted choice for professional applications.

Technical Features

Wide frequency coverage from 10 MHz to 110 GHz.
Advanced microwave measurement ensures precision and stability.
Compact coaxial design, ideal for space-constrained installations.
Environmentally friendly and RoHS-compliant materials.

Product Applications

Satellite Communications: Filters unwanted signals to enhance data transmission quality, ensuring clear and reliable communication for global networks. These filters are crucial for reducing interference and improving signal clarity, enabling efficient satellite data transfer across long distances.
Aerospace and Defense: Supports radar, navigation, and advanced weapon systems by isolating specific frequencies. This enhances the precision and reliability of systems crucial for national security, including tracking targets, guiding missiles, and ensuring safe flight operations.
Telecommunications: Enhances base station performance by isolating desired frequencies from unwanted noise. This allows for more efficient use of the spectrum, leading to improved voice and data quality in mobile networks, and supports higher data throughput and reduced signal dropouts.

OEM Services

At Advanced Microwave Technologies Co., Ltd, we provide tailored OEM solutions for ours, ensuring they align perfectly with your system requirements. Our services include:

Custom frequency range, bandwidth, and connector design.
Rapid prototyping to accelerate your development timelines.
Ongoing technical support for integration and troubleshooting.

FAQ

Q1: Can the product be customized for specific frequency ranges?
A: Yes, we offer customization to meet your specific frequency, bandwidth, and connector requirements.

Q2: Are these filters suitable for harsh environments?
A: Absolutely. They are built using high-grade, durable materials, making them reliable for extreme conditions.

Q3: What certifications do your filters have?
A: Our filters are ISO 9001:2008-certified and RoHS-compliant.

Q4: How quickly can I receive my customized order?
A: We prioritize fast order processing and reliable global shipping to meet your deadlines.
