Dual Channel Coaxial Rotary Joint
Dual Channel Coaxial Rotary Joint Introduction
Welcome to Advanced Microwave Technologies Co., Ltd, where innovation meets excellence. Our Dual Channel Coaxial Rotary Joint offers superior performance and reliability, making it the go-to choice for industries such as satellite communications, aerospace, and defense. Backed by 30 years of expertise, we design products to meet the exacting standards of modern communication and detection systems.
Product Introduction

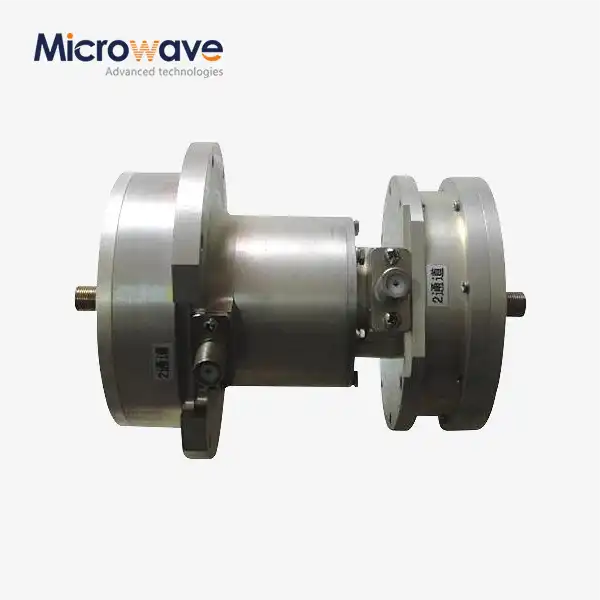

The Dual Channel Coaxial Rotary Joint is a precision-engineered microwave component that enables seamless signal transmission between rotating and stationary parts. With its robust design and high-frequency capability, this rotary joint is essential for applications requiring uninterrupted signal integrity in dynamic systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | DC to 40 GHz |
| Insertion Loss | ≤ 0.2 dB |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.25:1 |
| Power Capacity | Up to 500 W |
| Rotational Speed | Up to 100 rpm |
| Channels | 2 coaxial channels |
| Temperature Range | -40°C to +85°C |
| Compliance | ISO 9001:2008, RoHS |
Product Benefits
- Uninterrupted Signal Transmission: This product ensures stable and lossless signal flow in rotating systems, maintaining consistent performance without signal degradation, even under high-speed motion or vibration.
- High Durability: Built with advanced materials, this product is designed to withstand extreme environments, providing long-lasting reliability and performance in applications exposed to harsh conditions such as extreme temperatures and vibrations.
- Compact Design: Featuring a compact and efficient design, this product is ideal for applications with tight space constraints, ensuring seamless integration into systems where size and space are critical factors.
- Customization Options: With tailored solutions, this product can be adjusted to meet specific frequency and power requirements, offering flexibility to optimize performance for a wide range of applications and industry needs.
Technical Features

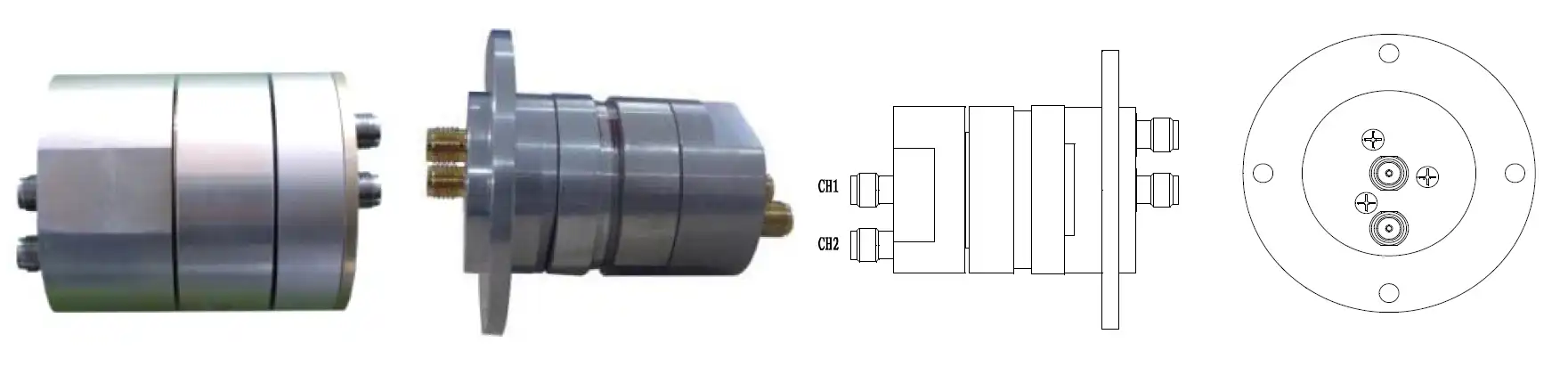

- Dual-Channel Design: This Dual Channel Coaxial Rotary Joint features a dual-channel design, allowing for the simultaneous transmission of two independent signals, enhancing efficiency and flexibility in systems requiring multi-signal support.
- Low Insertion Loss: With a focus on maintaining high signal integrity, the low insertion loss design ensures optimal performance by minimizing energy loss and preserving the quality of transmitted signals over long distances.
- Broad Frequency Range: It accommodates a wide range of frequencies, from low-band to high-band, making it suitable for diverse applications across various industries, ensuring reliable performance in different operating environments.
- Precision Engineering: The product is manufactured with advanced engineering techniques, guaranteeing superior reliability, consistent performance, and an extended lifespan, even under challenging operational conditions.
Dual Channel Coaxial Rotary Joint Applications
- Satellite Communications: Dual Channel Coaxial Rotary Joint ensures reliable and continuous signal flow in satellite systems, providing stable connections for high-data-rate transmissions, essential for both commercial and military satellite operations.
- Aerospace Navigation: It plays a critical role in supporting radar and navigation systems in both aircraft and spacecraft, ensuring accurate positioning and reliable communication in complex and high-speed aerospace environments.
- Defense Systems: Essential for advanced weapon systems and military radar, this product enables secure, high-performance communication, ensuring optimal functionality and reliability in mission-critical defense operations.
- Industrial Robotics: It facilitates efficient and seamless communication in automated industrial systems, enhancing performance and coordination in robotics applications for manufacturing, assembly lines, and precision tasks.
OEM Services
At Advanced Microwave Technologies, we provide comprehensive OEM services:
- Custom Designs: Adjust specifications to meet unique application needs.
- Technical Support: Expert guidance on installation, troubleshooting, and optimization.
- Flexible Manufacturing: Scalable production capacity for both small and large orders.
FAQ
Q: What is the typical lifespan of the Coaxial Rotary Joint?
A: With proper usage and maintenance, our rotary joints are designed to last over 10 years.
Q: Can I request a custom frequency range?
A: Yes, we specialize in customizing products to meet specific requirements.
Q: What certifications does the product hold?
A: It is ISO 9001:2008 certified and RoHS compliant.
Contact Us
Ready to enhance your systems with our Dual Channel Coaxial Rotary Joint? Contact us today for a customized solution!
📧 Email: [sales@admicrowave.com]
