How does a WG Isolator prevent signal reflections and ensure unidirectional signal flow?

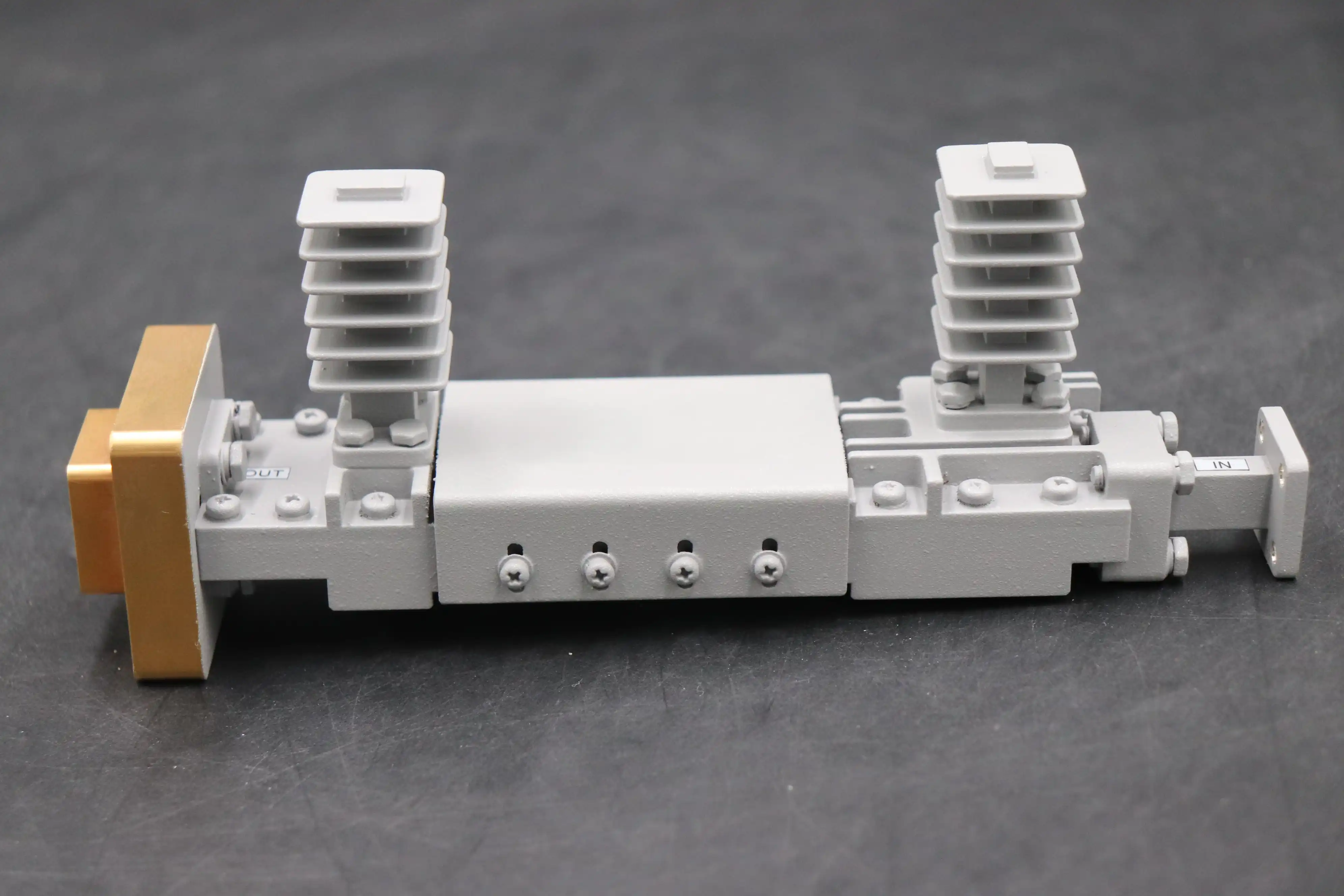

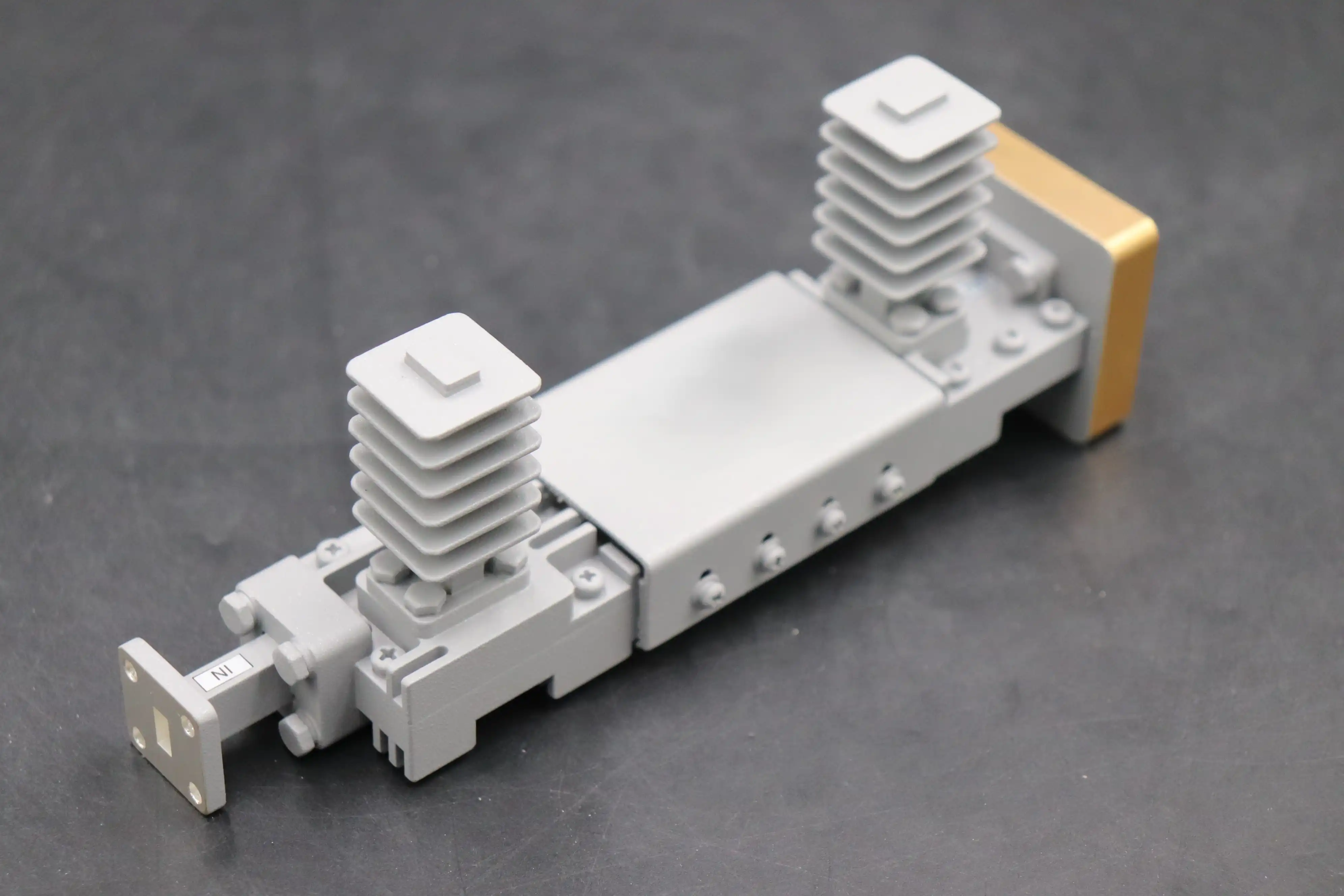

Waveguide (WG) Isolators are critical passive microwave components designed to allow signal transmission in one direction while blocking it in the reverse direction. These specialized devices serve as essential protection mechanisms in RF and microwave systems by effectively preventing signal reflections. A WG Isolator utilizes ferrite materials and magnetic fields to create a non-reciprocal environment where forward-traveling waves pass through with minimal insertion loss, while backward-traveling waves are directed to an internal load where they're absorbed. This unidirectional signal control protects sensitive equipment from reflected power that could cause interference, performance degradation, or even permanent damage to expensive components in radar systems, satellite communications, and other high-frequency applications.
The Working Principles of WG Isolators in Controlling Signal Direction
Ferrite Technology and Faraday Rotation
The fundamental operation of a WG Isolator relies on the remarkable properties of ferrite materials when placed within a waveguide structure. These ferromagnetic compounds, typically composed of iron oxides combined with other metallic elements, exhibit a fascinating phenomenon called Faraday rotation when properly magnetized. Within the WG Isolator, a carefully designed ferrite element is positioned inside the waveguide and subjected to a controlled magnetic field, usually supplied by permanent magnets. This configuration creates a unique electromagnetic environment where the propagation characteristics differ depending on the direction of signal travel. When microwave signals pass through this magnetized ferrite, the plane of polarization rotates due to the interaction between the microwave field and the spin of electrons in the ferrite material. Advanced Microwave Technologies Co., Ltd. manufactures WG Isolators with precisely calibrated ferrite compositions and magnetic field strengths to achieve optimal Faraday rotation for specific frequency bands, ensuring exceptional performance across applications ranging from satellite communications to defense systems. This attention to detail in the ferrite technology enables our WG Isolators to maintain high isolation values even in demanding operational environments, protecting sensitive equipment from the harmful effects of reflected power.
Signal Absorption Mechanisms
When unwanted reflected signals travel in the reverse direction through a WG Isolator, they encounter a sophisticated absorption mechanism that prevents them from reaching sensitive upstream components. This critical feature involves a carefully engineered load section within the isolator that converts the electromagnetic energy of the reflected signals into thermal energy. Advanced Microwave's WG Isolators incorporate high-performance absorptive materials that can efficiently handle substantial power levels without degradation or performance loss. The absorption element is typically designed with specialized geometries and material compositions that maximize the conversion efficiency while minimizing heat concentration. In high-power applications, our WG Isolators often feature additional cooling mechanisms, such as heat sinks or liquid cooling systems, to maintain thermal stability during operation. The absorption capability of a WG Isolator is characterized by its isolation parameter, typically measured in decibels (dB), with higher values indicating superior performance. Advanced Microwave Technologies offers WG Isolators with exceptional isolation specifications, often exceeding 20 dB across broad bandwidths, ensuring that sensitive equipment remains protected even in systems with significant potential for signal reflection. This robust absorption mechanism allows our WG Isolators to serve as reliable guardians in critical applications where signal integrity is paramount.
Magnetic Biasing Configuration
The effectiveness of a WG Isolator in preventing signal reflections heavily depends on its magnetic biasing configuration. Advanced Microwave Technologies employs sophisticated magnetic circuit designs to create precisely controlled magnetic field patterns within our WG Isolators. These magnetic fields interact with the ferrite elements to establish the non-reciprocal transmission properties that define isolator functionality. Our engineering team utilizes both permanent magnet and electromagnetic biasing approaches, depending on the specific application requirements. For compact, maintenance-free operation, rare-earth permanent magnets provide strong, stable fields without requiring external power. In applications needing field adjustment capabilities, electromagnetic biasing offers flexibility at the cost of additional power requirements. The magnetic field must be uniform across the ferrite element to ensure consistent performance across the entire operating bandwidth. Our design process includes detailed electromagnetic simulations and precise manufacturing tolerances to achieve this uniformity. Additionally, Advanced Microwave's WG Isolators feature magnetic shielding to prevent external magnetic interference and protect nearby components from the isolator's own magnetic field. This attention to magnetic biasing configuration contributes significantly to the exceptional performance characteristics of our WG Isolators, ensuring they provide reliable unidirectional signal flow in even the most demanding RF and microwave systems.
Performance Characteristics of High-Quality WG Isolators
Insertion Loss and Isolation Metrics
When evaluating WG Isolators, two critical performance parameters demand particular attention: insertion loss and isolation. Insertion loss measures the attenuation experienced by signals passing through the device in the forward direction, with lower values indicating superior performance. Advanced Microwave Technologies' WG Isolators are engineered to minimize insertion loss, typically maintaining values below 0.5 dB across their specified operating bands. This exceptional performance results from our precision manufacturing processes, optimized ferrite compositions, and advanced matching techniques. Low insertion loss ensures that valuable RF power reaches its intended destination rather than being wasted as heat within the isolator itself. Complementing this, the isolation metric quantifies how effectively the device blocks reverse signals, measured in decibels. Our premium WG Isolators deliver isolation values exceeding 20 dB and often reaching 30 dB or more, representing a power reduction factor of 100 to 1000 times for reflected signals. This remarkable isolation capability protects sensitive components like power amplifiers and oscillators from harmful reflections that could degrade performance or cause damage. The isolation-to-insertion-loss ratio represents a key figure of merit, with higher values indicating superior isolator performance. Advanced Microwave's WG Isolators consistently achieve exceptional ratios through our comprehensive design approach that considers the complex interplay between material properties, magnetic field configuration, and waveguide geometry. These carefully optimized performance characteristics make our WG Isolators ideal solutions for critical applications in satellite communications, radar systems, and advanced telecommunications infrastructure.
Bandwidth and Frequency Response
The bandwidth and frequency response characteristics of WG Isolators significantly influence their applicability in various microwave systems. Advanced Microwave Technologies specializes in designing WG Isolators with exceptional bandwidth capabilities, supporting frequencies up to 110 GHz across various waveguide sizes and configurations. This broad frequency coverage makes our isolators versatile components for numerous applications, from traditional satellite communications to cutting-edge millimeter-wave systems. Within their specified operating bands, our WG Isolators maintain consistent performance parameters, with carefully controlled variations in insertion loss and isolation across the entire frequency range. This uniform frequency response ensures predictable system behavior, simplifying integration and enhancing overall reliability. For applications requiring exceptionally flat frequency response, we offer specialized broadband designs that employ advanced matching techniques and optimized ferrite compositions. Additionally, our engineering team can customize the frequency characteristics to meet specific requirements, such as enhanced performance in particular sub-bands or tailored roll-off characteristics at band edges. The frequency stability of our WG Isolators remains excellent across varied environmental conditions, with minimal drift due to temperature changes or aging effects. This stability stems from our use of premium-grade ferrite materials with well-controlled temperature coefficients and our robust mechanical designs that maintain proper component alignment despite thermal cycling or mechanical stress. For specialized applications with unique bandwidth requirements, Advanced Microwave offers custom-engineered WG Isolators developed through our comprehensive design process, ensuring optimal performance for your specific frequency needs.
Power Handling Capabilities
The power handling capability of a WG Isolator represents a critical specification that determines its suitability for high-power microwave applications. Advanced Microwave Technologies' WG Isolators are engineered to handle substantial power levels while maintaining reliable performance and thermal stability. Our standard product line includes isolators capable of managing average powers from several watts to kilowatts, with peak power capabilities significantly higher depending on the specific model and waveguide size. The power handling limit of a WG Isolator is influenced by multiple factors, including the thermal properties of the ferrite material, the efficiency of the absorption mechanism, and the cooling approach employed. For applications requiring exceptional power handling, Advanced Microwave offers specialized high-power WG Isolator designs featuring enhanced cooling solutions such as forced-air convection, conduction cooling through mounting interfaces, or even liquid cooling for the most demanding scenarios. These cooling approaches effectively dissipate the heat generated when the isolator absorbs reflected power, preventing thermal runaway conditions that could degrade performance or damage the device. The power handling capability also varies with operating frequency, with lower frequency isolators typically capable of handling higher power levels due to their larger physical dimensions. Our engineering team carefully considers all relevant factors when specifying power ratings for our WG Isolators, ensuring they provide reliable protection even under worst-case reflection scenarios. For applications with unique power requirements, we offer customized WG Isolator solutions with optimized thermal management strategies tailored to your specific operational environment, providing the ideal balance of performance, reliability, and power handling capability.
Applications and Selection Criteria for WG Isolators
Critical Applications in Microwave Systems
WG Isolators serve as fundamental components in numerous sophisticated microwave systems where signal integrity and equipment protection are paramount concerns. In satellite communication networks, our WG Isolators play a crucial role in both ground station equipment and space-borne systems, preventing reflected signals from degrading transmission quality while ensuring maximum power efficiency. These isolators maintain clear signal pathways in transponders, amplifier chains, and feed networks, contributing to reliable connectivity even under challenging environmental conditions. In defense and aerospace applications, Advanced Microwave's WG Isolators provide critical protection for sensitive radar systems, electronic warfare equipment, and secure communication networks. Their ability to handle high power levels while maintaining precise electromagnetic characteristics makes them indispensable in applications where performance cannot be compromised. Telecommunications infrastructure represents another vital application area, with our WG Isolators ensuring stable operation in cellular base stations, microwave backhaul links, and broadband distribution systems. The exceptional isolation properties protect expensive power amplifiers from harmful reflections that could reduce their operational lifespan or cause catastrophic failures. Research and development laboratories worldwide rely on our precision-engineered WG Isolators for experimental microwave setups, prototype systems, and testing platforms where accurate measurements and reproducible results are essential. The versatility of Advanced Microwave's WG Isolators extends to medical applications, including microwave imaging systems and therapeutic devices, where their reliable unidirectional signal flow characteristics enable precise control of electromagnetic energy. By preventing signal reflections and ensuring stable operation across these diverse applications, our WG Isolators contribute significantly to system reliability, performance optimization, and equipment longevity in critical microwave installations worldwide.
Key Selection Parameters for Optimal Performance
Selecting the appropriate WG Isolator for a specific application requires careful consideration of several interconnected parameters to achieve optimal system performance. The operating frequency range serves as the primary selection criterion, with the isolator's waveguide size and internal dimensions precisely calculated to support the desired frequency band. Advanced Microwave Technologies offers WG Isolators covering frequencies from L-band through W-band (1-110 GHz), with each model optimized for specific portions of the electromagnetic spectrum. Power handling requirements constitute another crucial consideration, encompassing both average and peak power levels anticipated during normal and fault conditions. Our engineering team can guide customers in selecting isolators with appropriate safety margins to ensure reliable operation throughout the system's lifetime. The required isolation level, typically specified in decibels, depends on the sensitivity of upstream components and the potential magnitude of reflections in the particular application. For systems with extremely sensitive components or significant reflection potential, we recommend isolators with higher isolation specifications, sometimes employing cascaded configurations for enhanced protection. Physical constraints, including size, weight, and mounting arrangements, often influence isolator selection, particularly in space-limited applications or portable systems. Advanced Microwave offers various form factors and mounting options to accommodate diverse installation requirements. Environmental considerations such as operating temperature range, humidity tolerance, and exposure to vibration or shock must be evaluated when selecting an appropriate WG Isolator. For harsh environments, we provide ruggedized versions with enhanced mechanical stability and environmental sealing. Interface compatibility represents another key selection parameter, with our WG Isolators available in various standard and custom flange configurations to ensure seamless integration with existing system components. By carefully analyzing these selection parameters and consulting with our experienced technical team, customers can identify the optimal WG Isolator configuration for their specific application requirements.
Customization Options for Specialized Requirements
Advanced Microwave Technologies recognizes that standard isolator configurations may not satisfy all application requirements, particularly in specialized or emerging fields. Our comprehensive customization capabilities allow us to develop tailored WG Isolator solutions that precisely match unique technical specifications and operational constraints. Frequency optimization represents one common customization area, with our engineering team able to fine-tune the magnetic biasing, ferrite composition, and internal geometry to enhance performance in specific sub-bands or to extend operational bandwidth beyond standard specifications. For applications with stringent size or weight limitations, such as satellite payloads or portable communication systems, we offer miniaturized WG Isolator designs that maintain excellent performance characteristics despite reduced dimensions. Temperature stabilization features can be incorporated for applications experiencing wide thermal variations, employing specialized materials with compensating temperature coefficients or active temperature control systems for mission-critical installations. When exceptional isolation performance is required, our custom designs can incorporate cascaded isolation stages within a single housing, achieving isolation values exceeding 40 dB while minimizing the overall footprint and insertion loss. For high-reliability applications in aerospace, defense, or critical infrastructure, we offer enhanced qualification testing and documentation packages that verify performance under extreme conditions and provide complete traceability of materials and processes. Interface customization ensures seamless integration with non-standard waveguide components, with our manufacturing capabilities supporting virtually any flange configuration or specialized mounting arrangement. Advanced Microwave's flexible manufacturing processes and experienced design team enable rapid prototyping of custom WG Isolator configurations, allowing customers to evaluate and refine specialized designs before committing to production quantities. This comprehensive customization capability ensures that even the most demanding or unusual isolator requirements can be satisfied with high-performance, reliable solutions tailored to each customer's unique application environment.
Conclusion
WG Isolators stand as essential components in microwave systems, providing unidirectional signal flow that protects sensitive equipment and ensures optimal performance. Advanced Microwave Technologies Co., Ltd. delivers premium isolators with exceptional isolation properties, minimal insertion loss, and customizable features to meet your exact specifications. Our solutions combine cutting-edge ferrite technology with precision engineering to address the most demanding applications in satellite communications, defense, and telecommunications.
Ready to enhance your microwave system performance with industry-leading WG Isolators? Contact our expert team today for personalized consultation on the ideal solution for your application. With our perfect supply chain system, rich production experience, and professional R&D capabilities, we deliver superior products with quick turnaround times and competitive pricing. Experience the Advanced Microwave difference – contact us at sales@admicrowave.com to discuss your requirements.
