What are the key advantages of using a Double Ridge Waveguide Load over other types of waveguide loads?

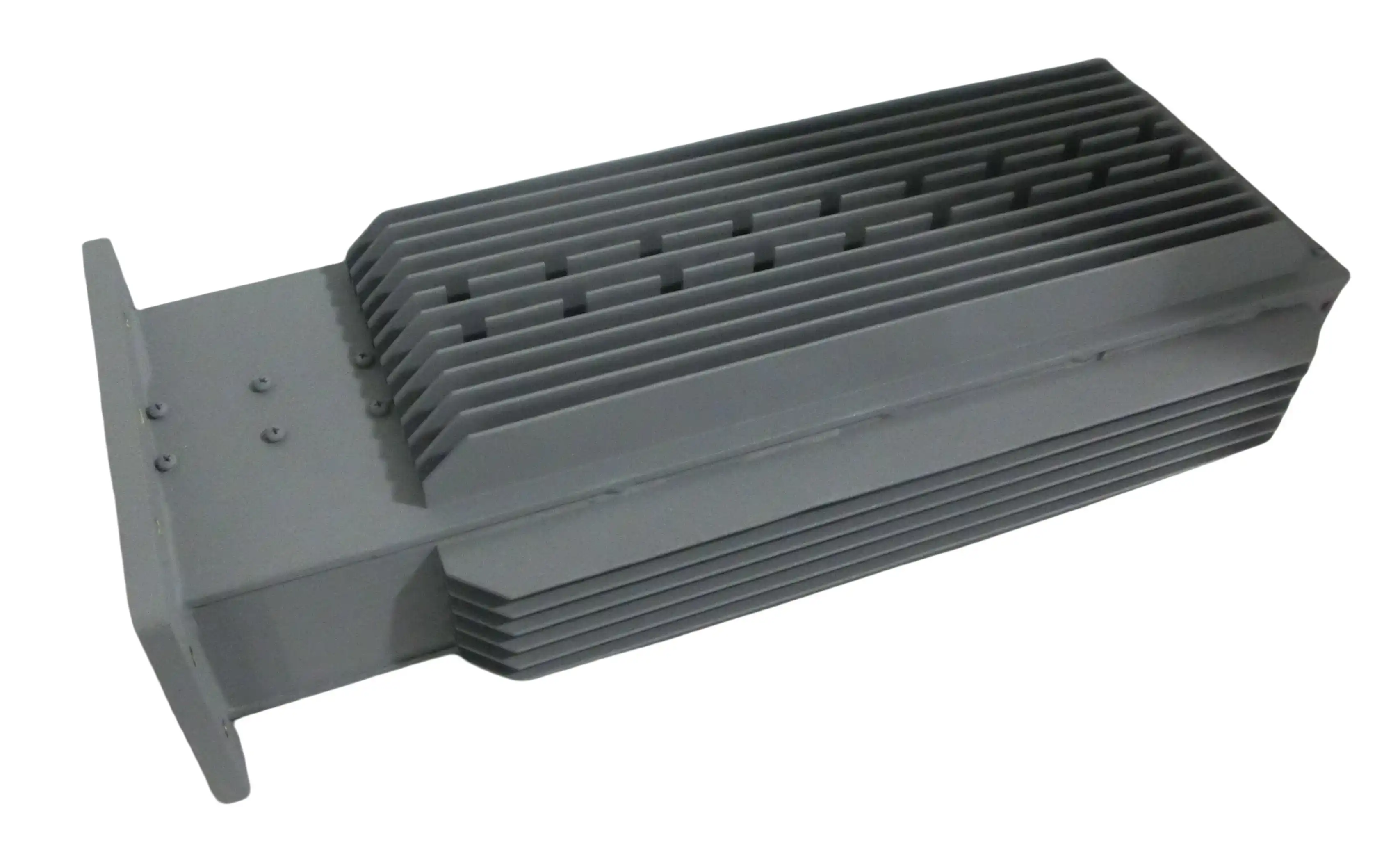

Double Ridge Waveguide Loads represent a significant advancement in microwave technology, offering numerous advantages over conventional waveguide loads. These specialized components are crucial in high-frequency applications where precision and reliability are paramount. Double Ridge Waveguide Loads feature an innovative design with two ridges extending into the waveguide, creating a uniquely optimized electromagnetic environment that delivers superior performance characteristics. When comparing Double Ridge Waveguide Loads to traditional rectangular or circular waveguide loads, the difference becomes apparent in their enhanced bandwidth capabilities, improved power handling, and more compact design profile. For engineers and technicians working in satellite communications, defense systems, or advanced testing environments, understanding these advantages is essential for selecting the optimal components for their specific applications.

Superior Performance Characteristics of Double Ridge Waveguide Loads

• Enhanced Bandwidth Capabilities

Double Ridge Waveguide Loads offer remarkably expanded bandwidth compared to conventional waveguide terminations, a critical advantage in modern microwave systems. The unique ridge configuration fundamentally alters the electromagnetic field distribution within the waveguide, effectively lowering the cutoff frequency while maintaining excellent performance at higher frequencies. This translates to a single Double Ridge Waveguide Load being capable of replacing multiple conventional loads in systems requiring broad frequency coverage. Advanced Microwave Technologies' Double Ridge Waveguide Loads exemplify this advantage, operating efficiently across an impressive spectrum from 2.6 GHz to 110 GHz. This expanded bandwidth capability proves invaluable in applications like multiband satellite communications and wideband radar systems, where different frequency bands must be accommodated without component changes. The elimination of multiple waveguide transitions and adapters not only simplifies system architecture but also minimizes potential points of failure and signal degradation. Engineers working with complex systems particularly appreciate how the enhanced bandwidth capabilities of Double Ridge Waveguide Loads reduce inventory requirements and streamline testing procedures across multiple frequency bands without sacrificing performance or precision.

• Improved Power Dissipation Efficiency

The innovative design of Double Ridge Waveguide Loads dramatically enhances power dissipation efficiency, a crucial factor in high-power microwave applications. The ridge structure creates an optimized path for electromagnetic energy absorption, resulting in superior heat distribution throughout the load material. Advanced Microwave Technologies' Double Ridge Waveguide Loads utilize precision conical load elements specifically engineered to handle up to 100W of power while maintaining thermal stability. The advanced thermal management properties prevent hot spots that can lead to material degradation and performance issues common in conventional waveguide loads. This improved power dissipation translates directly to longer operational lifespans and greater reliability in demanding applications like satellite communication uplinks and high-power radar systems. The Double Ridge Waveguide Load's efficient energy absorption mechanism ensures minimal reflected power back into the system, maintaining a consistently low VSWR of ≤1.25 across the entire operating frequency range. This characteristic is particularly valuable in sensitive measurement systems where even small reflections can introduce significant errors. For engineers working with high-power microwave systems, the exceptional power handling capabilities of Double Ridge Waveguide Loads provide a substantial margin of safety and operational stability that conventional waveguide loads simply cannot match.

• Compact Size and Integration Advantages

Double Ridge Waveguide Loads offer remarkable space efficiency advantages compared to traditional waveguide loads, a critical benefit in today's increasingly miniaturized electronic systems. The ridge configuration allows for significantly reduced cross-sectional dimensions while maintaining equivalent performance characteristics. Advanced Microwave Technologies' Double Ridge Waveguide Loads leverage this design advantage to deliver components that can be up to 30% smaller than their conventional counterparts operating at the same frequencies. This size reduction proves invaluable in space-constrained applications such as airborne radar systems, satellite payloads, and portable testing equipment. Beyond mere space savings, the compact nature of Double Ridge Waveguide Loads simplifies integration into complex assemblies and reduces overall system weight—a crucial consideration in aerospace applications where every gram matters. The customizable dimensions offered by Advanced Microwave Technologies enable system designers to optimize space utilization without compromising electrical performance. The smaller form factor also contributes to improved mechanical stability, reducing vulnerability to vibration and physical stress in harsh operating environments. For system integrators working with limited space budgets, the compact size advantage of Double Ridge Waveguide Loads represents a significant design enabler, allowing for more sophisticated functionality within existing spatial constraints while maintaining the high-performance characteristics required for critical applications.

Technical Superiority and Engineering Excellence

• Advanced Electromagnetic Design Principles

Double Ridge Waveguide Loads incorporate sophisticated electromagnetic design principles that fundamentally elevate their performance above conventional waveguide loads. The carefully engineered ridge structures create a controlled impedance environment that optimizes energy transfer throughout the operating frequency range. Advanced Microwave Technologies' Double Ridge Waveguide Loads leverage precision-manufactured ridge geometries that maintain consistent impedance characteristics across their entire 2.6 GHz to 110 GHz operating range. This advanced design approach results in exceptional field uniformity and minimal mode conversion issues that can plague simpler waveguide loads. The electromagnetic field concentration between the ridges creates an ideal environment for controlled energy absorption, directly contributing to the load's superior VSWR performance of ≤1.25.

This technical sophistication is particularly evident in applications requiring phase stability and minimal group delay variations, such as coherent radar systems and precision measurement setups. The advanced electromagnetic design also contributes to improved isolation between adjacent signal paths in complex systems, reducing crosstalk and interference that can compromise system performance. Modern simulation-driven optimization techniques allow Advanced Microwave Technologies to fine-tune Double Ridge Waveguide Load designs for specific application requirements, ensuring ideal performance characteristics under actual operating conditions. For engineers requiring absolute confidence in load performance across challenging frequency ranges, the advanced electromagnetic design principles embodied in Double Ridge Waveguide Loads provide a level of technical excellence that conventional approaches simply cannot achieve.

• Premium Materials and Construction Quality

Double Ridge Waveguide Loads benefit significantly from the use of premium materials and exceptional construction quality, establishing a clear advantage over standard waveguide loads. Advanced Microwave Technologies employs high-conductivity metals with precisely controlled surface finishes to ensure optimal electromagnetic performance and long-term stability. Each Double Ridge Waveguide Load undergoes rigorous manufacturing processes, including precision CNC machining and specialized plating techniques that maintain dimensional accuracy to within microns. This extraordinary attention to detail results in components that deliver consistent performance over thousands of thermal cycles and years of operation in demanding environments. The internal load elements utilize advanced composite materials specifically formulated to maximize energy absorption while resisting thermal degradation, ensuring stable performance even at the maximum rated power of 100W.

Advanced Microwave Technologies' ISO 9001:2008 certified manufacturing processes and RoHS compliance reflect an unwavering commitment to quality and environmental responsibility. The company's extensive experience in microwave component manufacturing is evident in the exceptional build quality of each Double Ridge Waveguide Load, with flawless internal finishes and precise alignment of critical components. This superior construction quality translates directly to improved reliability and extended operational lifespans in applications where component failure is simply not an option, such as in satellite communication systems and critical defense infrastructure. The premium materials and meticulous construction practices employed in Double Ridge Waveguide Loads provide a level of confidence and performance consistency that makes them the preferred choice for applications where absolute reliability is non-negotiable.

• Precision Testing and Quality Assurance Protocols

Double Ridge Waveguide Loads from Advanced Microwave Technologies undergo exceptionally rigorous testing and quality assurance protocols that set them apart from standard waveguide loads available in the market. Each unit is individually characterized using network analyzers capable of measurements up to 110 GHz, ensuring performance verification across the entire specified frequency range. This comprehensive testing includes detailed VSWR measurements at multiple frequency points, power handling verification, and thermal stability analysis under varying environmental conditions. The company's advanced laboratories are equipped with state-of-the-art microwave measurement systems that can detect even subtle performance variations that might affect system operation in sensitive applications.

Advanced Microwave Technologies' Double Ridge Waveguide Loads are subjected to extensive environmental testing, including thermal cycling, humidity exposure, and mechanical stress evaluations to validate their performance under real-world conditions. This meticulous approach to quality assurance has established a proven track record of reliability in mission-critical applications across satellite communications, defense systems, and aerospace platforms. The company maintains detailed performance data for each Double Ridge Waveguide Load, allowing for complete traceability and confidence in component consistency. Their quality control team employs statistical process control methodologies to continuously monitor manufacturing processes, ensuring consistent performance across production batches. For engineers responsible for system reliability in high-stakes applications, the comprehensive testing and quality assurance protocols applied to Double Ridge Waveguide Loads provide peace of mind and confidence that cannot be matched by components subjected to less rigorous evaluation processes.

Application Versatility and System Implementation

• Critical Role in Satellite Communication Systems

Double Ridge Waveguide Loads play an essential role in satellite communication systems, offering unique advantages that make them indispensable in this demanding application space. These specialized components serve as critical termination points in satellite transponders, feed networks, and ground station equipment, where their exceptional performance characteristics directly impact overall system reliability. Advanced Microwave Technologies' Double Ridge Waveguide Loads excel in satellite applications thanks to their ability to maintain stable performance across the wide frequency ranges commonly utilized in multi-band satellite systems. The exceptional power handling capability of up to 100W is particularly valuable in satellite uplink ground equipment, where high transmit powers are often required. The precision-engineered ridge structure ensures consistent impedance matching across operating conditions, maintaining the low VSWR of ≤1.25 that is essential for minimizing signal reflections that could cause interference or degrade communication quality.

For satellite system engineers, the lightweight and compact nature of Double Ridge Waveguide Loads provides significant advantages in space segment designs where mass and volume constraints are critical considerations. The robust construction and premium materials used in these components ensure they can withstand the harsh environmental conditions of space, including vacuum exposure, extreme temperature variations, and radiation effects. Advanced Microwave Technologies' Double Ridge Waveguide Loads have demonstrated exceptional reliability in numerous satellite communication systems globally, providing the performance stability required for continuous operation over multi-year missions. Their customizable flange options facilitate seamless integration with existing satellite hardware, making them the preferred choice for system designers seeking to optimize performance without compromising reliability in these mission-critical applications.

• Advantages in Radar and Defense Applications

Double Ridge Waveguide Loads offer significant advantages in radar and defense applications, where their superior technical characteristics directly translate to enhanced system performance and reliability. In modern radar systems, these specialized components serve as precision termination points in power dividers, beam-forming networks, and measurement subsystems. Advanced Microwave Technologies' Double Ridge Waveguide Loads provide the exceptional phase stability and low reflection characteristics essential for maintaining radar system calibration and accuracy. Their ability to operate effectively across the extended frequency range from 2.6 GHz to 110 GHz makes them particularly valuable in multi-band radar systems and electronic warfare applications that must function across diverse frequency bands. The high power handling capacity of up to 100W ensures these components can reliably manage the substantial power levels often encountered in defense systems without degradation or failure.

The compact form factor of Double Ridge Waveguide Loads provides significant advantages in space-constrained military platforms such as aircraft, naval vessels, and mobile ground systems, where every millimeter of space must be optimized. Defense system engineers particularly value the rugged construction and environmental resilience of Advanced Microwave Technologies' Double Ridge Waveguide Loads, which are designed to maintain performance integrity under extreme conditions including high vibration, shock, and temperature fluctuations common in military operations. The company's ISO 9001:2008 certification ensures consistent manufacturing quality crucial for defense applications, where component reliability directly impacts mission success and operational safety. For radar and defense system integrators, the combination of superior electrical performance, mechanical robustness, and long-term reliability makes Double Ridge Waveguide Loads the optimal choice for applications where system failure is simply not an option.

• Precision Measurement and Laboratory Applications

Double Ridge Waveguide Loads excel in precision measurement and laboratory applications, where their exceptional electrical characteristics provide significant advantages over conventional waveguide loads. These specialized components serve as reference terminations in network analyzers, signal generators, and other sophisticated test equipment requiring highly stable load impedances. Advanced Microwave Technologies' Double Ridge Waveguide Loads are particularly valued in metrology laboratories for their ability to maintain consistent performance across the extensive 2.6 GHz to 110 GHz frequency range, eliminating the need for multiple conventional loads when conducting broadband measurements. The precisely engineered ridge structure ensures exceptional impedance stability and repeatability, critical factors when establishing calibration standards or conducting comparative measurements where consistency is paramount.

The extremely low VSWR of ≤1.25 across the entire operating band makes these components ideal for applications requiring minimal reflection interference, such as antenna pattern measurements, material characterization studies, and electromagnetic compatibility testing. Research facilities particularly benefit from the Double Ridge Waveguide Load's ability to handle continuous-wave, pulsed, and modulated signals with equal precision, allowing for versatile experimental setups without changing termination components. Advanced Microwave Technologies' comprehensive testing and characterization of each Double Ridge Waveguide Load provides researchers with detailed performance data traceable to recognized standards, enhancing measurement confidence and experimental reproducibility. For laboratory managers and metrology specialists, the exceptional stability, precision, and versatility of Double Ridge Waveguide Loads make them an invaluable tool in maintaining measurement accuracy and experimental integrity across a wide range of scientific and engineering investigations.

Conclusion

Double Ridge Waveguide Loads represent the pinnacle of microwave termination technology, offering superior bandwidth, enhanced power handling, and compact design advantages that conventional waveguide loads simply cannot match. Their advanced electromagnetic performance makes them indispensable in satellite communications, defense systems, and precision measurement applications where reliability and accuracy are non-negotiable. Advanced Microwave Technologies Co., Ltd delivers these high-performance components with unmatched quality and customization options to meet your specific requirements.

Ready to experience the performance difference of our Double Ridge Waveguide Loads? Our team of expert engineers is prepared to help you find the perfect solution for your application challenges. With our perfect supply chain system, professional R&D team, strict quality control, and strong after-sales support, we deliver excellence at competitive prices with rapid delivery worldwide. Contact us today at sales@admicrowave.com to discuss your specific requirements!
