What are the unique geometric characteristics of Elliptical WG compared to traditional rectangular waveguides?
Elliptical waveguides (Elliptical WG) represent a significant advancement in waveguide technology, distinguished primarily by their unique cross-sectional geometry. Unlike traditional rectangular waveguides that feature four straight sides meeting at right angles, Elliptical WG utilizes an oval-shaped cross-section defined by two focal points. This fundamental geometric difference creates distinct electromagnetic field distributions within the waveguide, resulting in superior performance characteristics for specific applications. The elliptical shape offers enhanced bandwidth capabilities, better power handling, and reduced signal loss compared to rectangular counterparts, making Elliptical WG an increasingly preferred choice for high-frequency microwave applications requiring exceptional transmission efficiency and reliability.
Fundamental Geometric Properties of Elliptical Waveguides
Mathematical Definition and Parameters

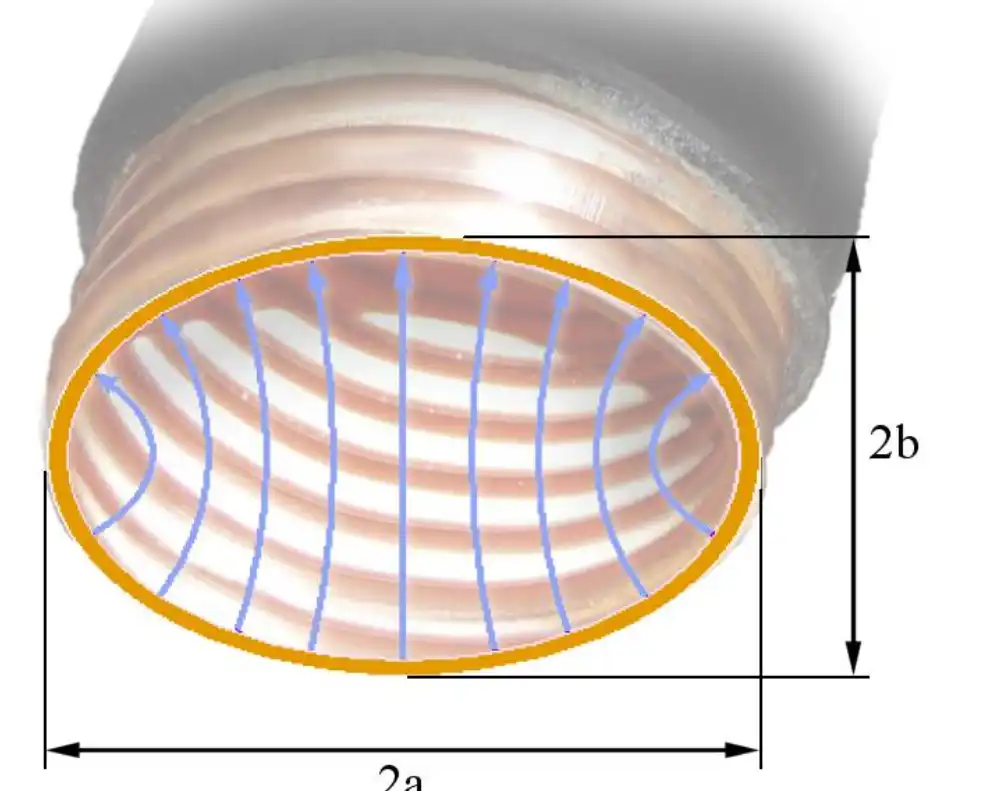

The geometry of Elliptical WG is fundamentally defined by mathematical parameters that differentiate it from traditional rectangular designs. An ellipse is characterized by two principal axes: the major axis (2a) and the minor axis (2b), where 'a' represents the semi-major axis length and 'b' represents the semi-minor axis length. The eccentricity (e) of the ellipse, calculated as e = √(1-b²/a²), determines how much the elliptical cross-section deviates from a circular shape. This parameter plays a crucial role in determining the waveguide's electromagnetic properties and performance characteristics. Advanced Microwave Technologies Co., Ltd specializes in manufacturing precision Elliptical WG with precisely controlled dimensional parameters to ensure optimal signal transmission. Our elliptical corrugated copper tubes encased in UV-resistant black polyethylene jackets maintain strict adherence to these geometric specifications, allowing for consistent performance across various applications. The mathematical precision in manufacturing ensures that each Elliptical WG provides the expected electromagnetic behavior, making them ideal for critical applications in satellite communications and other high-frequency systems.
Structural Comparison with Rectangular Waveguides
When examining the structural differences between Elliptical WG and rectangular waveguides, several key distinctions become apparent. Traditional rectangular waveguides consist of four flat surfaces joined at right angles, creating internal corners that can affect signal propagation. In contrast, Elliptical WG features a smoothly varying curved cross-section without sharp corners or discontinuities. This fundamental difference in geometry creates a more uniform distribution of current along the inner surface of the waveguide, minimizing energy concentration at specific points. The absence of corners in Elliptical WG reduces the likelihood of voltage breakdown at high power levels, a common limitation in rectangular designs. Advanced Microwave Technologies Co., Ltd manufactures Elliptical WG with precise dimensional control, ensuring consistent performance across their entire product range. The corrugated copper tube design provides structural integrity while maintaining the critical elliptical profile that supports optimal electromagnetic performance. This structural advantage makes our Elliptical WG a cost-effective alternative to traditional rectangular waveguides, particularly in applications requiring enhanced power handling capabilities.
Manufacturing Techniques and Material Considerations
The production of high-quality Elliptical WG demands specialized manufacturing techniques that differ significantly from those used for rectangular waveguides. Advanced Microwave Technologies Co., Ltd employs precision forming processes to create elliptical corrugated copper tubes with exacting dimensional tolerances. The corrugated design provides mechanical flexibility while maintaining the critical elliptical cross-section necessary for proper wave propagation. Our manufacturing process includes multi-stage quality control measures to verify geometric consistency throughout the waveguide length. The outer jacket, made of UV-resistant black polyethylene, provides environmental protection without affecting the electromagnetic properties of the copper conductor. This combination of materials ensures long-term performance stability even in challenging environmental conditions. As a leading manufacturer with over 20 years of experience, Advanced Microwave Technologies has refined these production techniques to deliver Elliptical WG that meets ISO 9001:2008 standards and RoHS compliance requirements. Our manufacturing capabilities allow us to produce customized Elliptical WG configurations tailored to specific customer requirements, making our products suitable for applications ranging from terrestrial communications to aerospace systems. The precision manufacturing processes ensure that each waveguide delivers consistent performance at frequencies up to 110 GHz.
Electromagnetic Performance Characteristics
Field Distribution Patterns
The elliptical geometry of Elliptical WG creates unique electromagnetic field distribution patterns that differ significantly from those observed in rectangular waveguides. In rectangular waveguides, the electromagnetic fields form standing wave patterns with clearly defined nodes and anti-nodes along the straight boundaries. Conversely, Elliptical WG produces a more complex field distribution that follows the curved contours of the elliptical cross-section. This results in a more uniform energy distribution throughout the waveguide volume, reducing hot spots and potential power handling limitations. The elliptical cross-section supports both transverse electric (TE) and transverse magnetic (TM) modes, but with different cutoff frequencies and propagation characteristics compared to rectangular waveguides. Advanced Microwave Technologies Co., Ltd's Elliptical WG products are designed to optimize these field distribution patterns, ensuring efficient energy transfer with minimal distortion. The corrugated structure of our copper tubes enhances the stability of these field patterns across a wide frequency range, making them ideal for applications requiring precise signal transmission characteristics. Our technical experts carefully analyze the field distribution requirements for each application, allowing us to recommend the optimal Elliptical WG configuration for specific customer needs. This attention to electromagnetic detail ensures that our waveguides deliver consistent performance in critical communication systems.
Bandwidth and Frequency Response
One of the most significant advantages of Elliptical WG over rectangular waveguides lies in their superior bandwidth and frequency response characteristics. The unique geometric properties of elliptical cross-sections create a wider separation between the fundamental mode and higher-order modes, effectively expanding the single-mode operating bandwidth. This expanded bandwidth capability makes Elliptical WG particularly valuable in applications requiring broad frequency coverage without mode conversion issues. Advanced Microwave Technologies Co., Ltd manufactures Elliptical WG optimized for frequencies up to 110 GHz, suitable for a wide range of modern communication systems. The frequency response of our Elliptical WG exhibits lower dispersion compared to rectangular alternatives, resulting in more consistent signal transmission across the operational bandwidth. This characteristic becomes increasingly important in high-data-rate applications where signal integrity must be maintained across substantial frequency ranges. Our elliptical corrugated copper design maximizes these bandwidth advantages while providing mechanical flexibility for installation in complex systems. The optimized impedance matching across frequency bands ensures minimal reflection losses, further enhancing the overall system performance. As communication technologies continue to demand greater bandwidth efficiency, our Elliptical WG products offer a cost-effective solution that delivers superior frequency response characteristics compared to traditional rectangular waveguides.
Power Handling Capabilities
The elliptical geometry of Elliptical WG confers significant advantages in power handling capabilities compared to rectangular waveguides. The absence of sharp corners eliminates points of electric field concentration that often limit the power handling capacity of rectangular designs. This geometric advantage allows Elliptical WG to support higher power levels without the risk of voltage breakdown or corona discharge. The curved inner surface of the elliptical cross-section distributes current more evenly, reducing localized heating and improving thermal management during high-power operation. Advanced Microwave Technologies Co., Ltd's Elliptical WG features an elliptical corrugated copper tube design that further enhances power handling by providing efficient heat dissipation while maintaining electromagnetic performance. Our products are engineered to maintain their electrical characteristics even during temperature fluctuations caused by high-power operation. The UV-resistant black polyethylene outer jacket provides additional thermal insulation while protecting the copper conductor from environmental factors. This combination of geometric advantages and material selection makes our Elliptical WG an ideal choice for high-power transmission applications in satellite communications, radar systems, and broadcasting equipment. The superior power handling capability represents a critical performance advantage in systems where signal integrity must be maintained at elevated power levels, offering customers a reliable solution for demanding applications.
Application-Specific Benefits and Implementation
Satellite Communication Systems
The unique geometric characteristics of Elliptical WG make them particularly well-suited for satellite communication systems where performance, reliability, and weight considerations are paramount. The elliptical cross-section provides an optimal balance between signal transmission efficiency and physical dimensions, allowing for more compact installation without sacrificing performance. In satellite uplink and downlink systems, the superior bandwidth capabilities of Elliptical WG enable simultaneous transmission of multiple frequency bands with minimal signal degradation. Advanced Microwave Technologies Co., Ltd supplies high-performance Elliptical WG specifically designed for satellite communication applications, featuring precision-manufactured elliptical corrugated copper tubes that maintain signal integrity even over extended transmission distances. Our products offer excellent resistance to environmental factors common in satellite installations, including temperature extremes and UV exposure, thanks to the protective black polyethylene jacket. The reduced weight of our Elliptical WG compared to equivalent rectangular waveguides provides additional benefits in satellite systems where every gram matters. Many leading satellite communication providers choose our Elliptical WG for their critical infrastructure due to their proven reliability and performance advantages. The customization options we offer allow system designers to specify exact dimensional parameters to match their specific frequency requirements and physical installation constraints. This application-specific approach ensures optimal performance in satellite communication systems operating across various frequency bands.
Long-Distance Transmission Networks
When designing long-distance microwave transmission networks, the geometry of Elliptical WG offers distinct advantages that translate into improved system performance and reduced operational costs. The elliptical cross-section minimizes attenuation losses over extended distances, allowing signals to maintain integrity with fewer repeater stations compared to rectangular waveguide implementations. This characteristic is particularly valuable in backbone communication networks spanning challenging terrains where infrastructure installation is difficult and expensive. Advanced Microwave Technologies Co., Ltd's Elliptical WG products feature precisely controlled dimensional parameters that ensure consistent performance across entire transmission networks. The corrugated copper design provides mechanical flexibility for installation along various routes while maintaining the critical elliptical geometry that supports optimal signal propagation. Our waveguides deliver exceptional performance in long-distance applications, with attenuation characteristics that remain stable over years of operation. The UV-resistant outer jacket protects against environmental degradation, ensuring long-term reliability in outdoor installations. As a cost-effective alternative to more expensive waveguide options, our Elliptical WG helps network operators optimize their infrastructure investments while maintaining high-quality service levels. The combination of performance advantages and economic benefits makes our products an intelligent choice for long-distance transmission networks requiring reliable, high-capacity links. Our technical support team works closely with network designers to determine the optimal Elliptical WG configuration for specific distance requirements and frequency bands.
Integration with Modern Antenna Systems
The geometric characteristics of Elliptical WG create significant advantages when integrating with modern antenna systems, particularly in applications requiring precise signal delivery with minimal distortion. The elliptical cross-section facilitates smoother transitions between the waveguide and various antenna feed structures, reducing impedance mismatches and associated reflection losses. This geometric compatibility is especially valuable in high-gain antenna systems where feed efficiency directly impacts overall system performance. Advanced Microwave Technologies Co., Ltd manufactures Elliptical WG with specialized end treatments designed specifically for direct integration with various antenna types, simplifying installation and enhancing system reliability. Our products include compatible connectors and transition components that maintain the electromagnetic field characteristics when interfacing between the Elliptical WG and antenna elements. The precision manufacturing of our elliptical corrugated copper tubes ensures consistent performance across production batches, allowing system designers to predict and optimize antenna performance with confidence. In phased array applications, the superior phase stability of our Elliptical WG contributes to more accurate beam forming and steering capabilities. Our engineering team provides comprehensive support for antenna integration projects, offering specialized adapters and custom transitions when standard configurations don't meet specific requirements. This application-focused approach ensures that our Elliptical WG delivers optimal performance in complex antenna systems operating across various frequency bands up to 110 GHz. The combination of geometric advantages and precision manufacturing makes our products ideal for advanced antenna applications in radar, communications, and radio astronomy.
Conclusion
The unique elliptical geometry of Elliptical WG represents a significant advancement over traditional rectangular waveguides, offering superior electromagnetic performance through optimized field distribution, enhanced bandwidth, and improved power handling. These geometric advantages translate directly into system-level benefits across satellite communications, long-distance networks, and advanced antenna applications. Advanced Microwave Technologies Co., Ltd's precision-manufactured Elliptical WG provides these benefits while maintaining cost-effectiveness and reliability.
Looking to optimize your microwave system performance with high-quality Elliptical WG? Our team of experts is ready to help you select the perfect solution for your specific application requirements. With our perfect supply chain system, professional R&D team, and strict quality control processes, we deliver superior products with fast turnaround times and competitive pricing. Contact us today at sales@admicrowave.com to discuss how our Elliptical WG can enhance your system performance!
