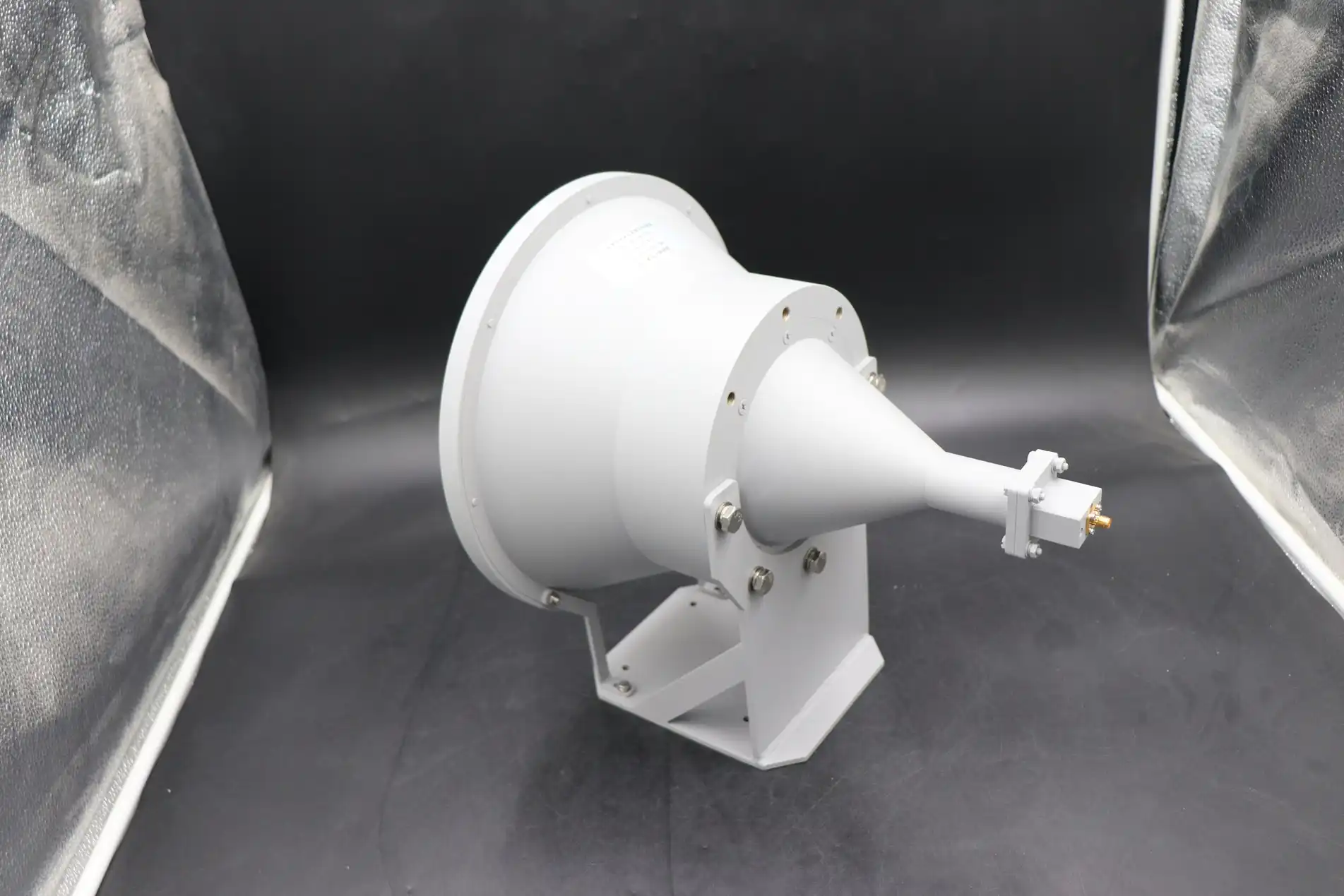

Conical Horn Lens Antenna Introduction

At Advanced Microwave Technologies Co., Ltd., we specialize in delivering cutting-edge Conical Horn Lens Antenna, and systems. With over 30 years of experience in satellite communications, defense, aerospace, and navigation, we provide innovative solutions that support critical applications. Among our product offerings is the Conical Horn Lens Antenna, a sophisticated device designed for high-performance applications requiring precision and reliability. Our product provides optimal signal transmission with low loss and high efficiency, making it the ideal choice for industries such as telecommunications, aerospace, and defense.

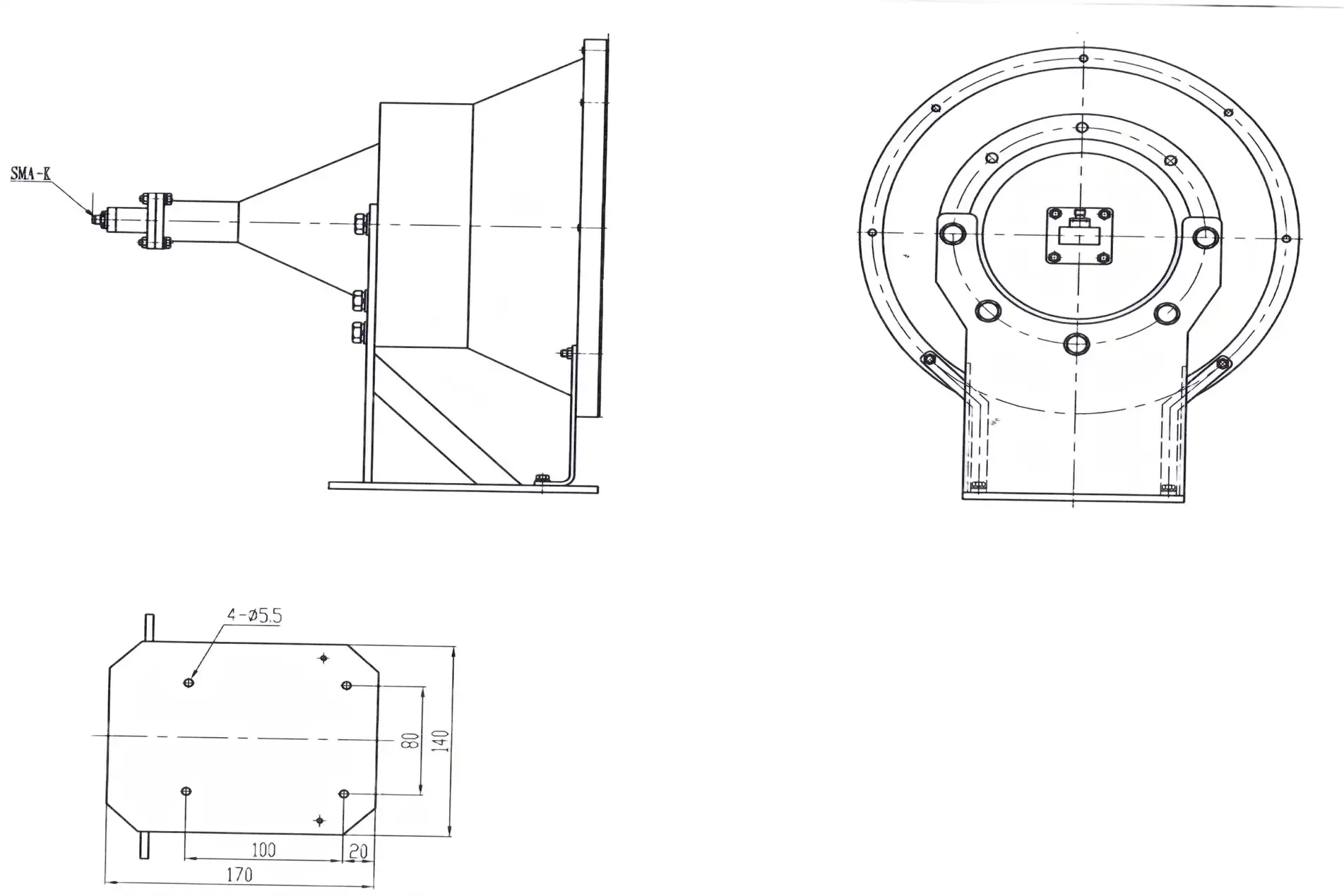

Product Specifications

Model No*	Freq Range(GHz)	Gain(dB)	Sidelobe Level(dB)		Beam Width（°）	VSWR	Interface	Antenna Aperture(Φmm)	Length(mm)
Model No*	Freq Range(GHz)	Gain(dB)	E plane	H plane	Beam Width（°）	VSWR	Interface	Antenna Aperture(Φmm)	Length(mm)
ADM－100LHA250	8.2-12.4	25	≤-15	≤-26	7~10	≤2.5	FBP-100	250	270
ADM－120LHA250	10.0-15.0	26	≤-15	≤-26	7~10	≤2.5	FBP-120	250	270
ADM－140LHA150	12.5-18.0	23	≤-15	≤-26	7~10	≤2.5	FBP-140	150	170
ADM－140LHA200	12.5-18.0	26	≤-15	≤-26	5~8	≤2.5	FBP-140	200	220
ADM－140LHA250	12.4-18.0	28	≤-15	≤-26	3~6	≤2.5	FBP-140	250	270
ADM－180LHA100	14.5-22.0	22	≤-15	≤-26	9~12	≤2.5	FBP-180	100	120
ADM－180LHA150	14.5-22.0	25	≤-15	≤-26	6~9	≤2.5	FBP-180	150	170
ADM－180LHA200	14.5-22.0	28	≤-15	≤-26	4~7	≤2.5	FBP-180	200	220
ADM－220LHA80	18.0-26.5	21	≤-15	≤-26	9~12	≤2.5	FBP-220	80	100
ADM－220LHA100	18.0-26.5	23	≤-15	≤-26	7~10	≤2.5	FBP-220	100	120
ADM－220LHA150	18.0-26.5	27	≤-15	≤-26	4~7	≤2.5	FBP-220	150	170
ADM－220LHA200	18.0-26.5	29	≤-15	≤-26	3~6	≤2.5	FBP-220	200	220
ADM－260LHA50	22.0-33.0	19	≤-15	≤-26	12~16	≤2.5	FBP-260	50	80
ADM－260LHA80	22.0-33.0	23	≤-15	≤-26	7~10	≤2.5	FBP-260	80	100
ADM－260LHA100	22.0-33.0	25	≤-15	≤-26	6~9	≤2.5	FBP-260	100	120
ADM－260LHA150	22.0-33.0	29	≤-15	≤-26	3~6	≤2.5	FBP-260	150	170
ADM－260LHA200	22.0-33.0	31	≤-15	≤-26	2~4	≤2.5	FBP-260	200	220
ADM－320LHA50	26.5-40.0	21	≤-15	≤-26	10~13	≤2.5	FBP-320	50	80
ADM－320LHA80	26.5-40.0	25	≤-15	≤-26	6~9	≤2.5	FBP-320	80	100
ADM－320LHA100	26.5-40.0	27	≤-15	≤-26	4~7	≤2.5	FBP-320	100	120
ADM－320LHA150	26.5-40.0	31	≤-15	≤-26	3~5	≤2.5	FBP-320	150	170
ADM－320LHA200	26.5-40.0	33	≤-15	≤-26	2~4	≤2.5	FBP-320	200	220

Conical Horn Lens Antenna Benefits

High Efficiency: The Conical Horn Lens Antenna is designed for optimal signal transmission with minimal loss, ensuring superior performance in various applications.
Low Transmission Loss: Designed to minimize power loss during signal transmission, which is crucial for communication and radar systems.
Customizable Options: Tailored to specific frequency ranges, materials, and sizes to meet the exact needs of our clients.
Wide Frequency Support: Supports both high and low frequencies, making it versatile for different industrial applications.

Technical Features

High Gain Performance: With a gain of up to 45 dB, our antennas provide enhanced performance, ensuring long-distance and reliable communication.
Low VSWR (Voltage Standing Wave Ratio): The design of the antenna results in a low VSWR, minimizing signal reflection and improving overall system efficiency.
Compact and Lightweight Design: Ideal for integration into tight spaces while maintaining high durability and performance.
Custom Polarization Options: Choose between linear or circular polarization to meet specific system requirements, optimizing performance for different communication scenarios.

Product Applications

The Conical Horn Lens Antenna is widely used in the following sectors:

Telecommunications & Satellite Communications: Ensuring stable signal reception and transmission in satellite ground stations and communication systems.
Aerospace & Defense: Used in radar and missile guidance systems, providing reliable signal reception over long distances with low transmission loss.
Navigation Systems: Crucial in aviation and marine applications, offering precision in navigation signals.
Scientific Research & Development: Employed in advanced research environments that require precise measurement and analysis.

OEM Services

We offer customized OEM services to meet the specific requirements of our clients:

Custom Designs: Tailor the antenna's size, frequency range, and material to your unique needs.
Flexible Manufacturing: Adjust production to accommodate varying quantities, from small prototypes to large-scale manufacturing runs.
Expert Consultation: Our team of engineers provides expert guidance on integration, installation, and troubleshooting.
Fast Turnaround: With our robust supply chain, we ensure timely delivery to meet your project deadlines.

Frequently Asked Questions (FAQ)

Q1: What is the frequency range of the product?
The antenna supports a frequency range from 1 GHz to 110 GHz, with customization options available to meet specific needs.

Q2: Can I get a custom design for my project?
Yes, we offer OEM services to design antennas that meet your specific technical and physical requirements.

Q3: What industries use It?
Our antennas are used in telecommunications, defense, aerospace, and scientific research.

Q4: Are the antennas compliant with international standards?
Yes, our antennas are ISO 9001:2008 certified and RoHS compliant, ensuring the highest quality and environmental safety.

Contact Us

If you’re interested in learning more about our Conical Horn Lens Antenna or need a customized solution for your project, Advanced Microwave Technologies Co., Ltd. is here to help. We pride ourselves on providing expert guidance and top-tier products.
Contact us today at sales@admicrowave.com to discuss your needs and get a tailored quote.
