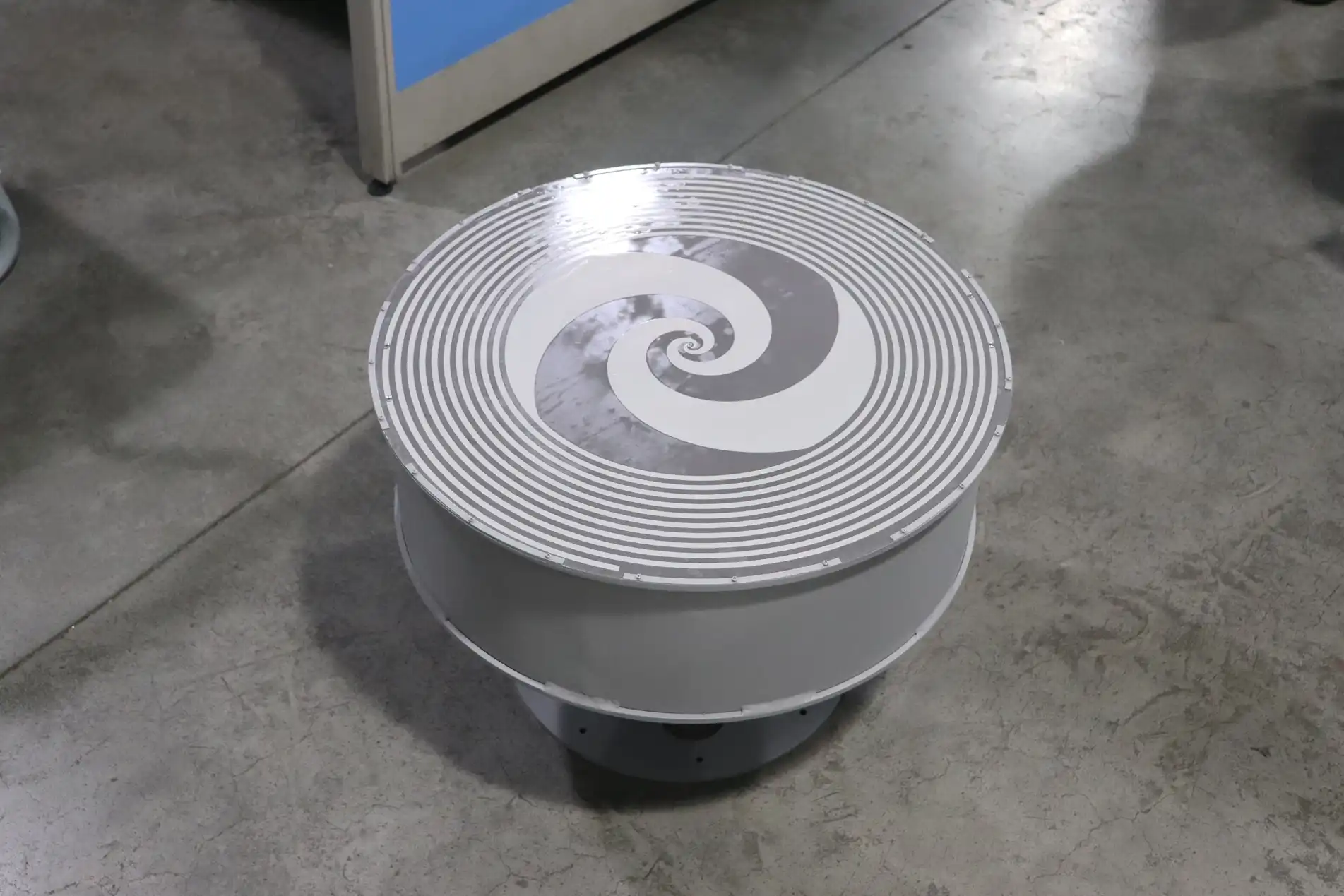

Planar Spiral Antenna

Advanced Microwave offers a planar spiral antenna an ultra-wideband circularly polarized antenna scheme, and its rotation direction is determined by the spiral direction. It can work in an extremely wide frequency band, radiating most of the power in an effective working area, and no radiation in its structure extension direction. The disadvantage is the antenna efficiency is low and cannot withstand a slightly larger microwave power due to the influence of the absorbing material in the cavity. It is often used as a receiving antenna or a receiving antenna feed in electronic reconnaissance.

Planar Spiral Antenna Introduction

The Planar Spiral Antenna from Advanced Microwave Technologies Co., Ltd. is a high-performance antenna solution designed for a wide range of applications in telecommunications, aerospace, and defense sectors. Known for its exceptional bandwidth, compact design, and multi-frequency capabilities, this antenna is ideal for satellite communication, radar systems, and advanced navigation technologies. Built with precision and reliability in mind, our Antenna is engineered to meet the needs of both large multinational corporations and R&D-driven enterprises.

Product Specifications

Feature	Specification
Frequency Range	1 GHz to 40 GHz
Bandwidth	Wideband (Low VSWR across range)
Impedance	50 Ohms
Polarization	Circular
Gain	3 dBi to 8 dBi
Material	High-Quality, Durable Materials
Size	Customizable
Weight	Light & Compact
Mounting Options	Easy integration with mounting kits

Product Benefits

Wideband Performance: The Antenna offers a broad frequency range, providing reliable performance across various applications such as satellite communications and radar systems.
Compact Design: Despite its wide frequency range, this antenna maintains a small, lightweight form factor, making it easy to integrate into existing systems without occupying much space.
Durability: Built with high-quality materials, it withstands harsh environments, making it ideal for aerospace, defense, and military applications.
Low VSWR: Ensures minimal signal loss, optimizing performance across different frequency bands.
Customizable: Tailored to meet your specific requirements, whether it's adjusting the frequency, material, or size.

Technical Features

Broadband Operation: Capable of supporting various frequencies, the Planar Spiral Antenna ensures seamless communication even in challenging environments.
Circular Polarization: Ideal for satellite and radar communication where multi-path interference reduction is crucial.
Lightweight and Rugged: Designed to be robust and easy to handle, it’s perfect for deployment in mobile, aerospace, and defense platforms.
Low Profile: Its flat design makes it a perfect choice for systems with space constraints, without compromising on performance.

Planar Spiral Antenna Applications

Satellite Communications: Excellent for satellite communication systems, ensuring stable signal transmission over long distances.
Aerospace & Defense: Planar Spiral Antenna provides essential communication and detection capabilities for navigation, radar, and defense systems.
Telecommunications: Ideal for base stations and communication systems requiring reliable, high-frequency antenna solutions.
Research and Development: Favored by R&D-driven enterprises looking for flexible antenna solutions for new technology development.

OEM Services

At Advanced Microwave Technologies, we understand that one size doesn’t fit all. That’s why we offer comprehensive OEM services to tailor the Antenna to your specific needs:

Custom frequency ranges, materials, and sizes
Full integration support and technical advice
Quick turn-around times for prototypes and production orders
Global supply chain management to ensure timely delivery

FAQ

Q: What industries can benefit from the Antenna?
A: The Antenna is ideal for industries such as telecommunications, aerospace, defense, and satellite communications.

Q: How do I choose the right Antenna for my application?
A: Consider factors such as required frequency range, bandwidth, and size. Our team can help you select or customize the perfect antenna for your needs.

Q: Is the Antenna customizable?
A: Yes, we offer full customization options, including adjustments to frequency, size, and materials to meet specific application requirements.

Q: Does the antenna support high-frequency communication?
A: Yes, the Antenna is designed to support frequencies ranging from 1 GHz to 40 GHz, making it suitable for high-frequency communication.
