Ultra Double-ridged Horn Antenna

Advanced Microwave manufactures Octave Double-ridged Horn Antennas that use the international standard of double-ridged waveguide interface, working frequency range covers allband double ridged waveguide. Within 0.5-40 GHz, each corresponding double ridged waveguide frequencies, VT has a corresponding broadband horn antenna and matches the different gain requirements. Each horn antenna will provide a gain vs frequency calibration curve, the gain value error is less than 0.7 dB.This series of antennae has three gain specifications of 10dB, 13dB, and 15 dB. It can be customized according to requirements.
Send Inquiry
Product Description

Ultra Double-ridged Horn Antenna Introduction

The Ultra Double-ridged Horn Antenna is designed to provide superior performance in high-frequency applications. Known for its broad bandwidth and minimal distortion, this antenna is ideal for use in industries like satellite communications, aerospace, defense, and telecommunications. Manufactured with precision to meet the most demanding specifications, the product ensures high-quality signal transmission with reliable performance.

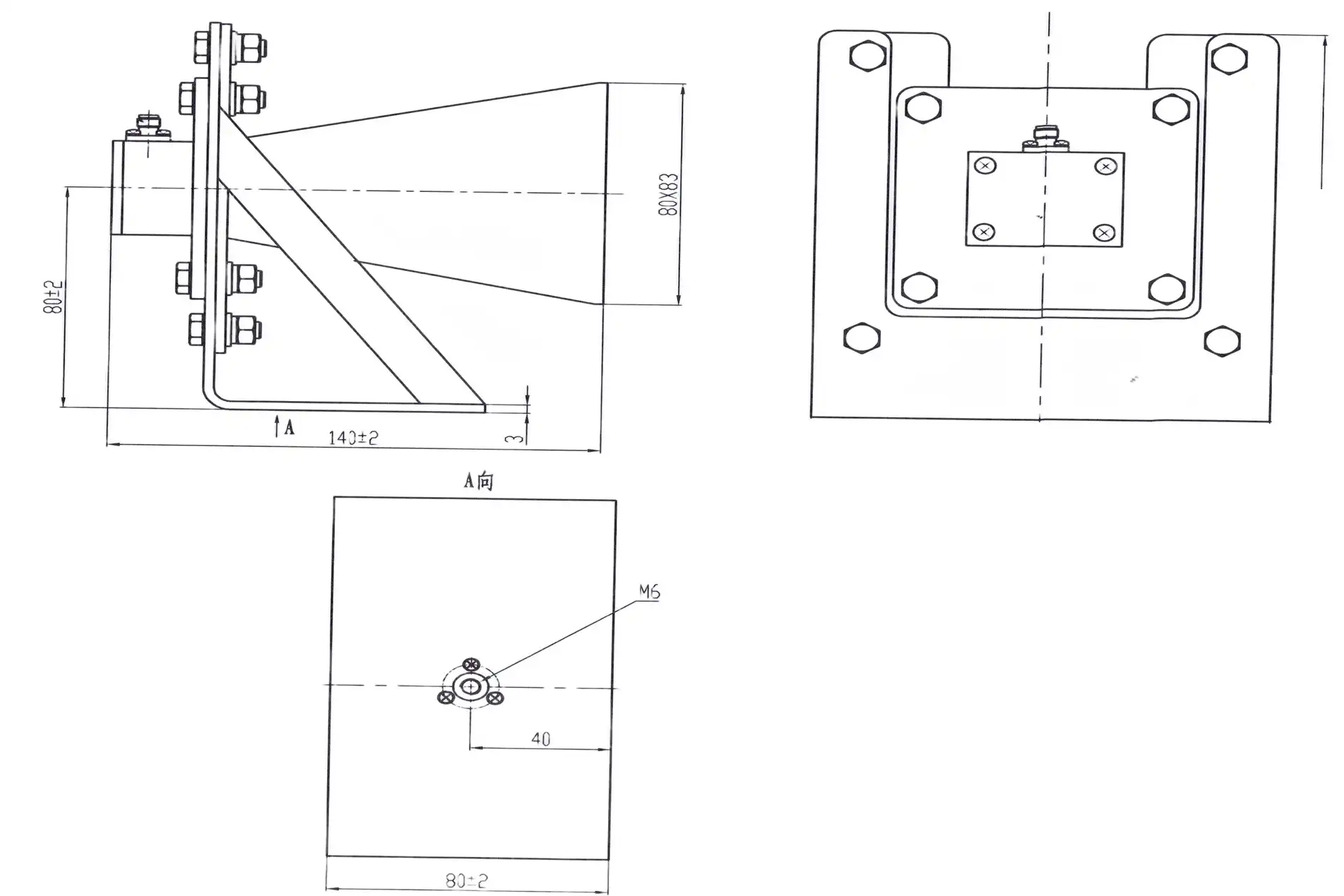

Ultra Double-ridged Horn Antenna

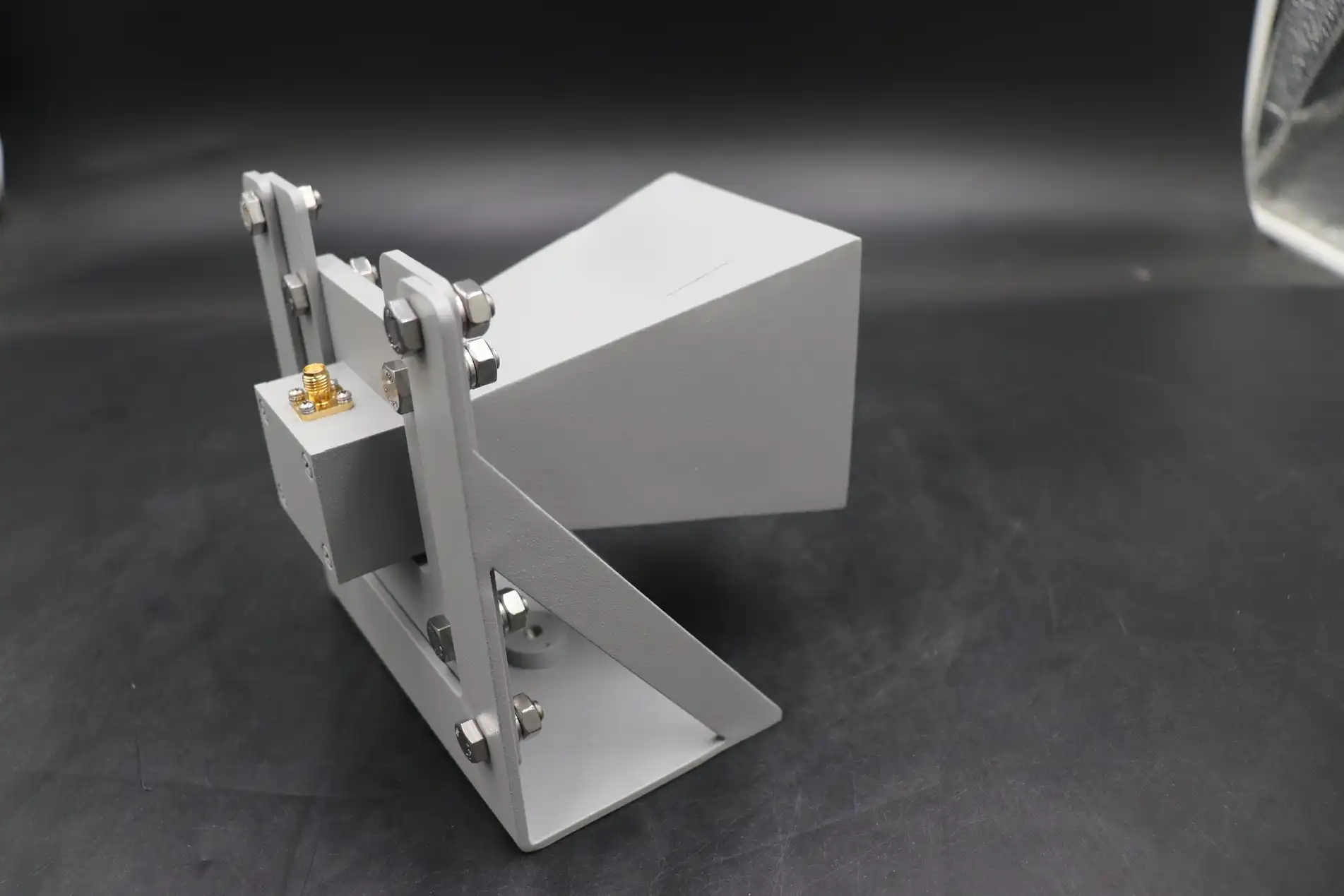

Ultra Double-ridged Horn Antenna

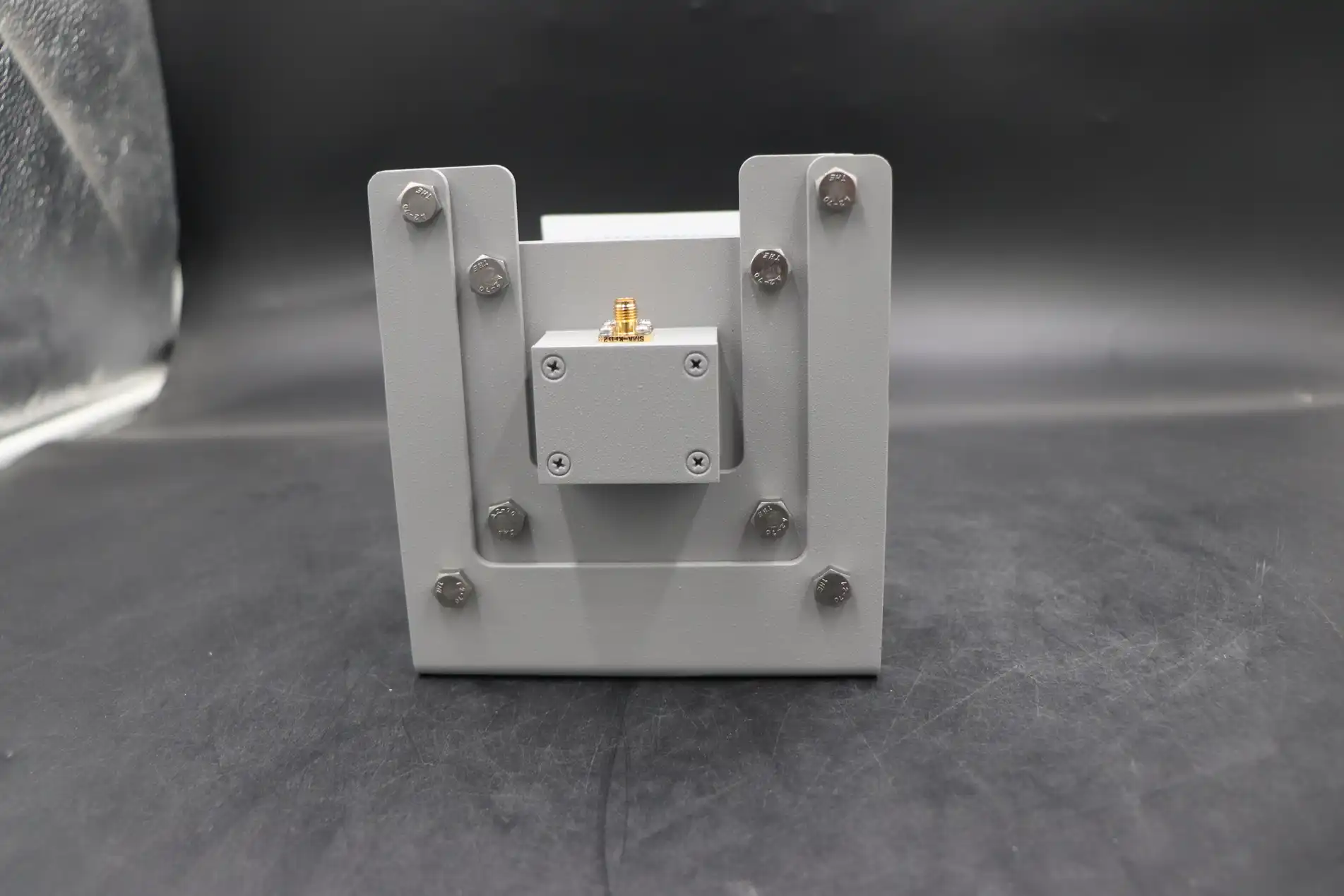

Ultra Double-ridged Horn Antenna

Product Specifications

Model No*

Freq Range (GHz)

Gain (dB)

Beam Width

Dimensions (mm)

VSWR

Connector

Material

Finish

W

H

L

ADM-0110DRHA8N

0.1-1

3~10

30°~80°

2154

1423

2250

≤2.5

N-K

Al

Chromate conversion

ADM-0220DRHA8N

0.2-2

8~13

10°~65°

933

780

960

≤2.5

N-K

Al

Chromate conversion

ADM-0660DRHA10N

0.6-6

4~15

10°~80°

306

221

415

≤2.5

N-K

Al

Chromate conversion

ADM-0840DRHA7N

0.8-4

6~14

35°~65°

225

155

290

≤2.0

N-K

Al

Chromate conversion

ADM-1060DRHA10N

1-6

6~13

20°~90°

164

114

158

≤2.5

N-K

Al

Chromate conversion

ADM-10180DRHA10S

1-18

7~13

30°~80°

160

284

245

≤2.5

SMA-K

Al

Chromate conversion

ADM-10200DRA10S

1-20

7~15

11°~80°

163

241

243

≤2

SMA-K

Al

Chromate conversion

ADM-20180DRHA17S

2-18

8~17

20°~50°

179

149

200

≤2.5

SMA-K

Al

Chromate conversion

ADM-60180DRHA10S

6-18

10~14

30°~55°

63

43

140

≤2.5

SMA-K

Al

Chromate conversion

ADM-80400DRHA15K

8-40

7~13

10°~30°

28

23

105

≤3.0

2.92-K

Al

Chromate conversion

ADM-180400DRHA16K

18-40

15~20

10°~20°

50

38

132

≤2.5

2.92-K

Al

Chromate conversion

Ultra Double-ridged Horn Antenna Benefits

  • Broad Frequency Range: Capable of supporting frequencies from 1 GHz to 110 GHz, this versatility makes it suitable for diverse, high-performance communication applications.
  • Enhanced Signal Integrity: With a low Voltage Standing Wave Ratio (VSWR), it minimizes signal reflection, ensuring optimal signal transmission and improved communication reliability.
  • Compact and Lightweight: Designed for easy installation and integration, this antenna maintains excellent performance while being lightweight and space-efficient for various setups.
  • Durability: Built with high-quality, robust materials, this antenna is specifically engineered to endure challenging environments, making it ideal for aerospace and defense applications.

Technical Features

  • Low Loss Performance: Provides minimized transmission loss, ensuring efficient signal operation in high-frequency applications, contributing to overall system reliability and performance.
  • Multi-Directional Coverage: Featuring a double-ridged design, it offers excellent performance for both linear and circular polarization, providing versatile signal reception and transmission capabilities.
  • Environmental Resistance: Engineered for resilience, the antenna can be customized to withstand extreme environmental conditions, such as high/low temperatures and corrosive environments, ensuring long-term reliability.

Product Applications

  • Satellite Communications: Vital for ensuring stable, uninterrupted communication links in satellite systems, facilitating global coverage and long-distance data transmission.
  • Radar Systems: Critical for radar systems, ensuring precise signal transmission and reception for accurate detection, tracking, and monitoring in various applications.
  • Aerospace: Designed for aircraft and spacecraft communication systems, offering minimal interference and extensive high-frequency coverage for reliable performance in extreme environments.
  • Telecommunications: Perfect for base stations and telecom operators seeking robust, high-performance antennas to maintain reliable and efficient communication across various networks.

OEM Services

We provide extensive OEM (Original Equipment Manufacturer) services for the Ultra Double-ridged Horn Antenna. Our customization options include:

  • Tailored frequency ranges
  • Size and material adjustments
  • Custom connectors and mounting options
  • Specialized coatings for environmental protection

Advanced Microwave Technologies Co., Ltd. is committed to delivering high-performance solutions that meet your exact specifications, ensuring seamless integration with your existing systems.

FAQ

  1. What is the frequency range of the Ultra Double-ridged Horn Antenna?
  2. The antenna supports a frequency range from 1 GHz to 110 GHz, making it suitable for a wide array of applications across various industries.
  3. Can the antenna be customized for specific applications?
  4. Yes, we offer customization options for size, material, frequency range, and connectors to meet your unique requirements.
  5. What industries can benefit from the Horn Antenna?
  6. This antenna is used in satellite communications, radar systems, aerospace, defense, and telecommunications industries.
  7. How does the antenna ensure minimal signal loss?
  8. The Horn Antenna is designed for low VSWR and high gain, minimizing signal reflection and ensuring efficient transmission.
  9. Is technical support available for installation?
  10. Yes, we provide comprehensive technical support, including installation guidance, fault diagnosis, and system integration.

Contact Us

To learn more about how the Ultra Double-ridged Horn Antenna can enhance your system's performance or to request a quote, please contact us today.
