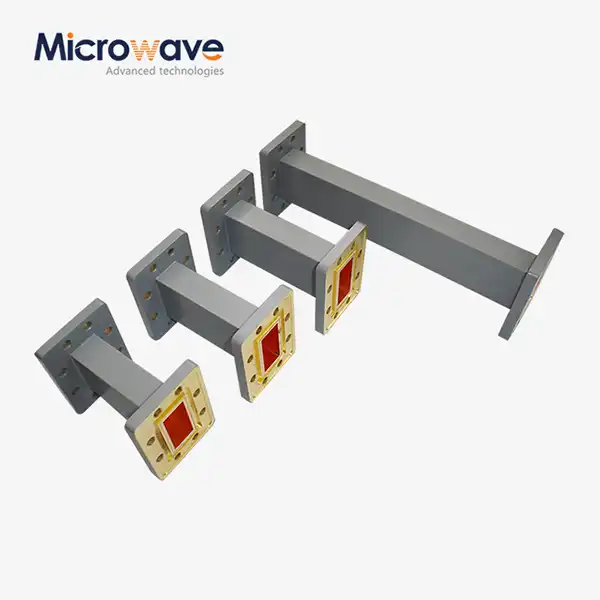

Rectangular Straight Waveguide

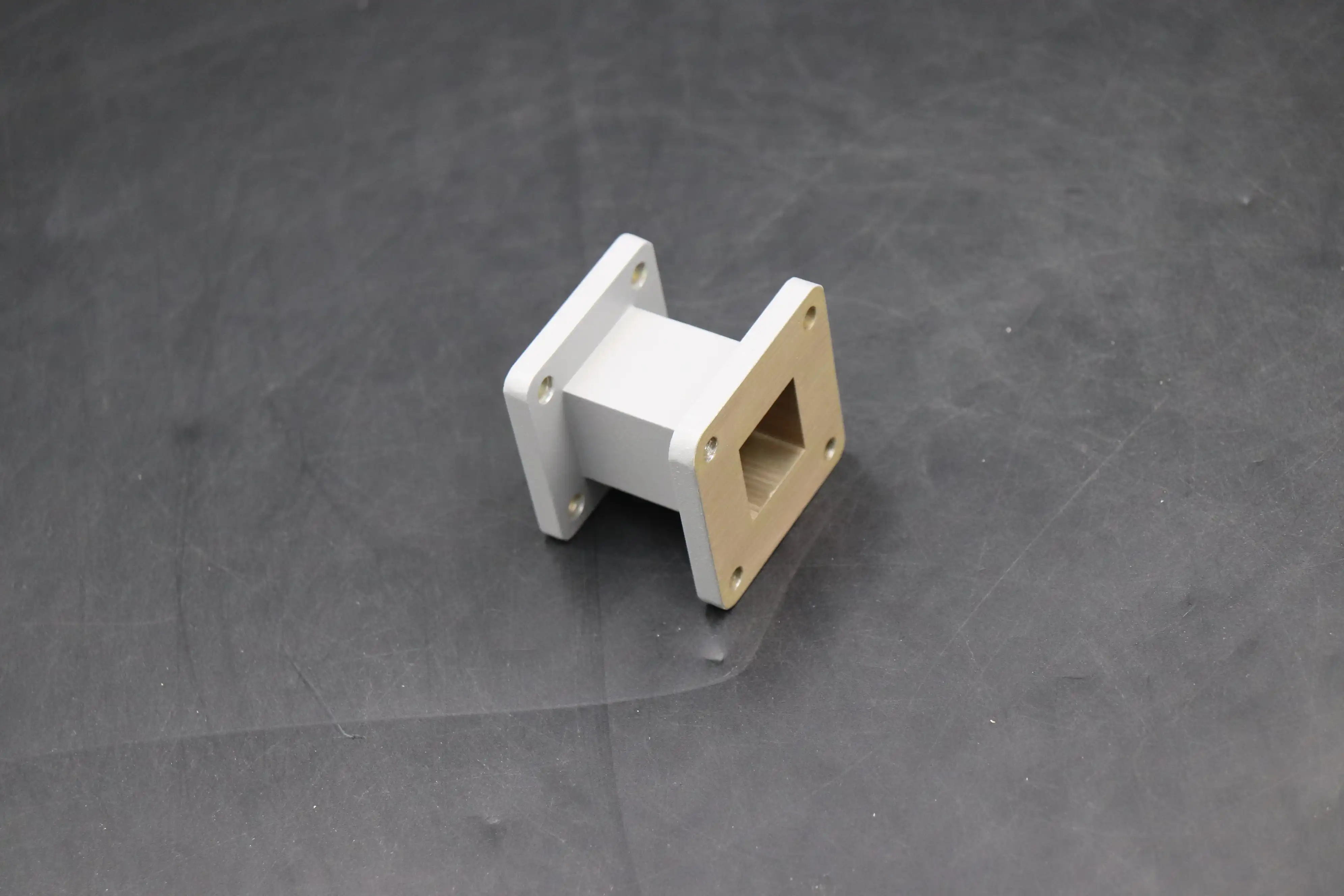

Rectangular Straight Waveguide Introduction
Our rectangular straight waveguides are designed for high-efficiency transmission of electromagnetic waves in microwave systems. Key features include:
High Power Handling: Capable of supporting high-power signals, ideal for radar and satellite applications.
Low Loss: Minimizes signal loss, ensuring efficient wave transmission.
Wide Frequency Range: Operates effectively across a broad frequency spectrum.
Durability: Constructed from high-quality conductive materials, ensuring reliability in demanding environments.
These waveguides offer superior performance in applications like microwave communication, antenna feeding, and radar systems.

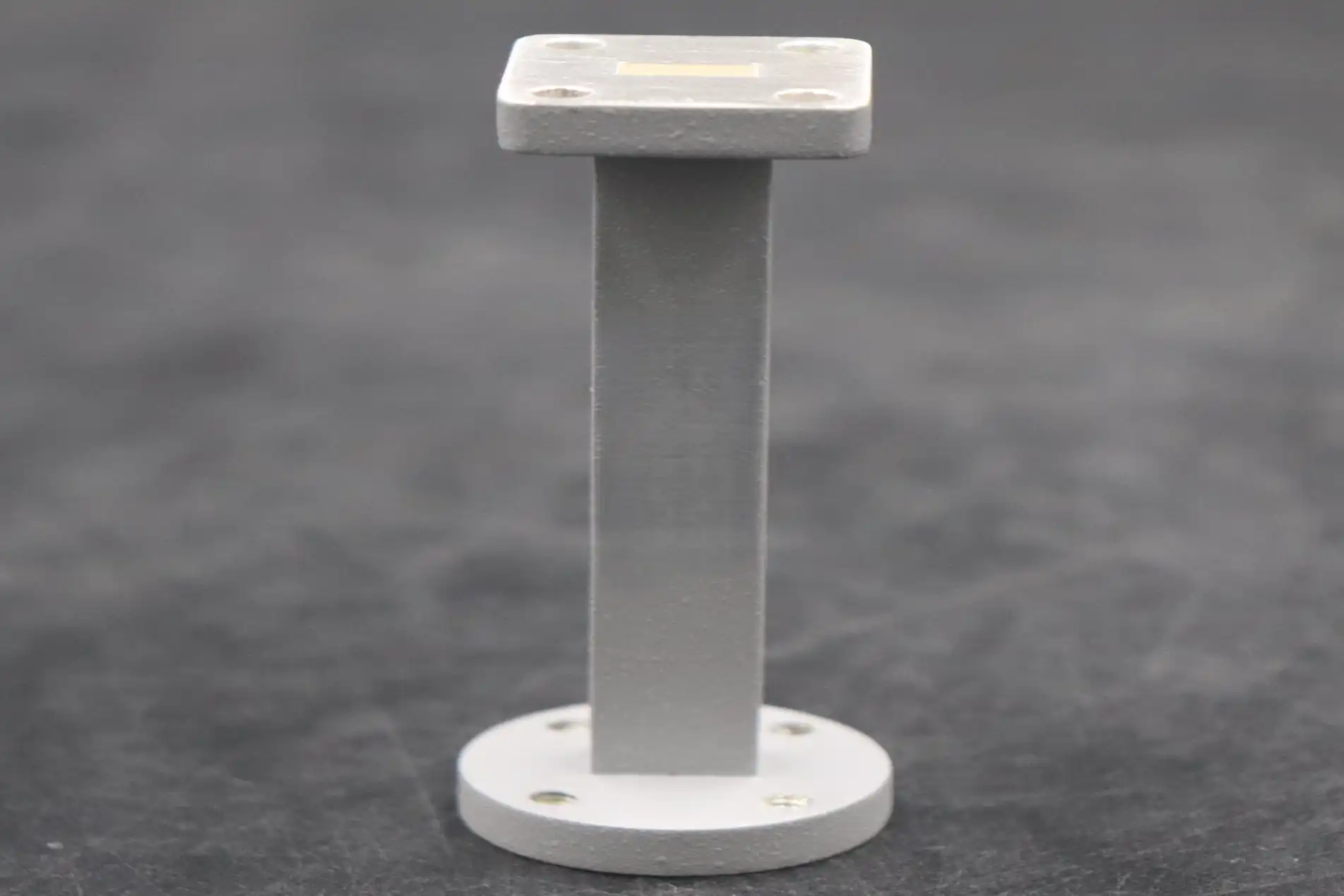

Product Introduction
Rectangular straight waveguides are key for microwave transmission. They come in various types, covering 0.3 - 1100 GHz, like WR2300 - WR10. With a rectangular cross-section, their width and height determine the operating frequency. Made of copper or aluminum, they contain waves effectively. Waves propagate in TE and TM modes. They feature low losses, can handle high power, and are customizable. Widely used in microwave comms, antenna setups, and cavity resonance.

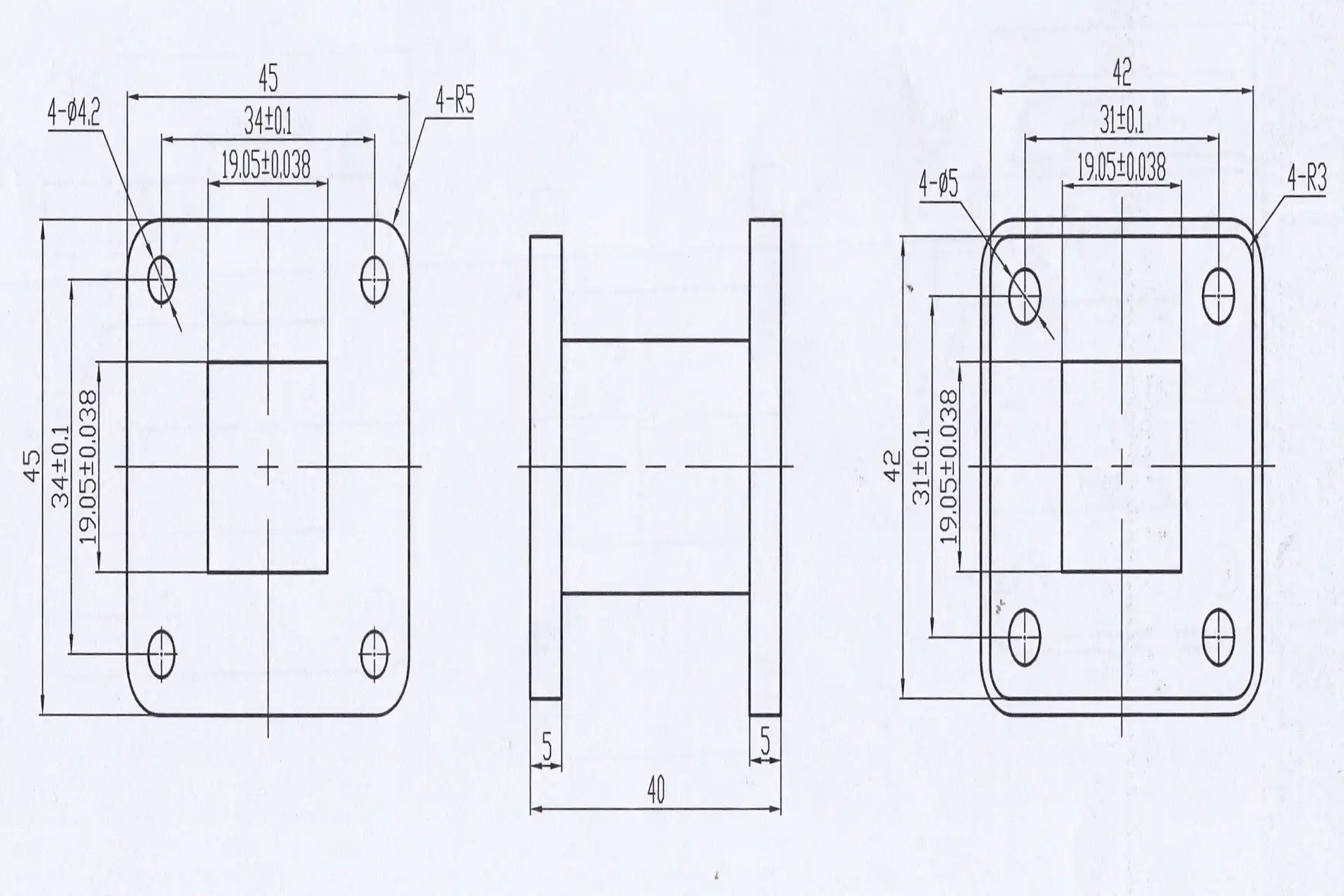

Product Specifications
Model No* | Freq Range (GHz) | VSWR | Standard Length Range …（mm) | Flange | Material | IEC | EIA |
ADM-3WAL…PM | 0.32-0.49 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R3 | WR2300 |
ADM-4WAL…PM | 0.35-0.53 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R4 | WR2100 |
ADM--5WAL…PM | 0.41-0.62 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R5 | WR1800 |
ADM--6WAL…PM | 0.49-0.75 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R6 | WR1500 |
ADM--8WAL…PM | 0.64-0.98 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R8 | WR1150 |
ADM--9WAL…PM | 0.75-1.15 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R9 | WR975 |
ADM--12WAL…PM | 0.96-1.46 | ≤1.05 | 0.2-500 | FDP/FDM | Al | R12 | WR770 |
ADM--14WAL…PM | 1.13-1.73 | ≤1.05 | 0.2-2000 | FDP/FDM | Al | R14 | WR650 |
ADM--18WAL…PM | 1.45-2.20 | ≤1.05 | 0.2-2000 | FDP/FDM | Al | R18 | WR510 |
ADM--22WAL…PM | 1.72-2.61 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R22 | WR430 |
ADM--26WAL…PM | 2.17-3.30 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R26 | WR340 |
ADM--32WAL…PM | 2.60-3.95 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R32 | WR284 |
ADM--40WAL…PM | 3.22-4.90 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R40 | WR229 |
ADM--48WAL…PM | 3.94-5.99 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R48 | WR187 |
ADM--58WAL…PM | 4.64-7.05 | ≤1.05 | 0.1-2000 | FDP/FDM | Al | R58 | WR159 |
ADM--70WAL…PM | 5.38-8.17 | ≤1.10 | 0.1-2000 | FDP/FDM | Cu | R70 | WR137 |
ADM--84WAL…PM | 6.57-9.99 | ≤1.10 | 0.1-2000 | FBP/FBM | Cu | R84 | WR112 |
ADM--100WAL…PM | 8.20-12.40 | ≤1.10 | 0.1-2000 | FBP/FBM | Cu | R100 | WR90 |
ADM--120WAL…PM | 9.84-15.0 | ≤1.10 | 0.1-2000 | FBP/FBM | Cu | R120 | WR75 |
ADM--140WAL…PM | 11.9-18.0 | ≤1.10 | 0.1-1000 | FBP/FBM | Cu | R140 | WR62 |
ADM--180WAL…PM | 14.5-22.0 | ≤1.10 | 0.1-1000 | FBP/FBM | Cu | R180 | WR51 |
ADM--220WAL…PM | 17.6-26.7 | ≤1.10 | 0.1-600 | FBP/FBM | Cu | R220 | WR42 |
ADM--260WAL…PM | 21.7-33.0 | ≤1.10 | 0.1-600 | FBP/FBM | Cu | R260 | WR34 |
ADM--320WAL…PM | 26.5-40.0 | ≤1.10 | 0.1-500 | FBP/FBM | Cu | R320 | WR28 |
ADM--400WAL… | 32.9-50.1 | ≤1.15 | 0.1-300 | FUGP | Cu | R400 | WR22 |
ADM--500WAL… | 39.2-59.6 | ≤1.15 | 0.1-300 | FUGP | Cu | R500 | WR19 |
ADM--620WAL… | 49.8-75.8 | ≤1.15 | 0.1-300 | FUGP | Cu | R620 | WR15 |
ADM--740WAL… | 60.5-91.9 | ≤1.15 | 0.1-300 | FUGP | Cu | R740 | WR12 |
ADM--900WAL… | 73.8-112 | ≤1.15 | 0.1-300 | FUGP | Cu | R900 | WR10 |
ADM--1200WAL… | 92.2-140 | - | 0.1-100 | FUGP | Cu | R1200 | WR8 |
ADM--1400WAL… | 113-173 | - | 0.1-100 | FUGP | Cu | R1400 | WR7 |
ADM--1800WAL… | 145-220 | - | 0.1-100 | FUGP | Cu | R1800 | WR5 |
ADM--2200WAL… | 172-261 | - | 0.1-50 | FUGP | Cu | R2200 | WR4 |
ADM--2600WAL… | 217-330 | - | 0.1-50 | FUGP | Cu | R2600 | WR3 |
Rectangular Straight Waveguide Benefits
- Low Transmission Loss: Rectangular Straight Waveguide provide the best possible signal quality over long distances.
- Support demanding applications in satellite communications, radar, and aerospace systems with high power handling.
- Sturdy Construction: Designed to withstand challenging conditions, guaranteeing enduring dependability.
- Customizable Features: Surface treatments and dimensions can be changed to satisfy particular operational requirements.
Technical Specifications
- Wide Frequency Range: Fits both millimeter-wave and microwave bands, making it suitable for a variety of applications.
- Accurate waveguide dimensions and improved performance are guaranteed by precision machining.
- Advanced Finishes: Conductive coatings to prevent environmental damage and minimize loss.
- Compliance Standards: Complies with RoHS and ISO:9001:2008 standards for environmental responsibility and quality.
Product Applications
- Numerous industries make extensive use of our Rectangular Straight Waveguide:
- Satellite communications: Make data transfer reliable and effective.
- Radar systems, navigational aids, and cutting-edge weaponry depend on the aerospace and defense industries.
- Telecommunications: Essential to microwave relay systems and base stations.
- Research and Development: Provides funding for innovative initiatives in academic institutions and research facilities.
OEM Services
To meet the specific needs of each client, we specialize in OEM services. Our team works closely with clients to create specialized solutions, from material selection to particular frequency ranges and flange designs. Fast prototyping and adaptable production procedures guarantee that we provide precisely what you require at the appropriate time.
FAQ
Q: Can the waveguide be customized to fit specific dimensions?
A: Yes, we provide customization services to adjust size, material, and performance parameters to your specifications.
Q: Are your waveguides suitable for outdoor environments?
A: Absolutely! Our products feature durable finishes and materials designed to withstand harsh conditions.
Q: What is the typical delivery time for orders?
A: We have the regular products in stock and can arrange the shipment within one week.
Contact Us
Ready to optimize your signal transmission?
Reach out to our expert team today at sales@admicrowave.com. Let us provide the high-quality Rectangular Straight Waveguide you need to excel in your industry.
