What are the common connector types for Right Angle Waveguide To Coaxial Adapter?

Right Angle Waveguide To Coaxial Adapters are crucial components in microwave systems, serving as the bridge between rectangular waveguide transmission lines and coaxial cables. These adapters facilitate the transition of electromagnetic waves between the two different transmission media while maintaining signal integrity at a 90-degree angle. When selecting the appropriate Right Angle Waveguide To Coaxial Adapter for your application, understanding the various connector types is essential for ensuring optimal performance and compatibility. The most common connector types include SMA, Type-N, TNC, 2.92mm/3.5mm/2.4mm (K/Ka-band connectors), and waveguide flanges such as UG, CMR, and CPR styles. Each connector type offers specific frequency ranges, power handling capabilities, and mechanical characteristics that make them suitable for different applications across telecommunications, radar systems, satellite communications, and defense.

Popular Coaxial Connector Types for Waveguide Adapters

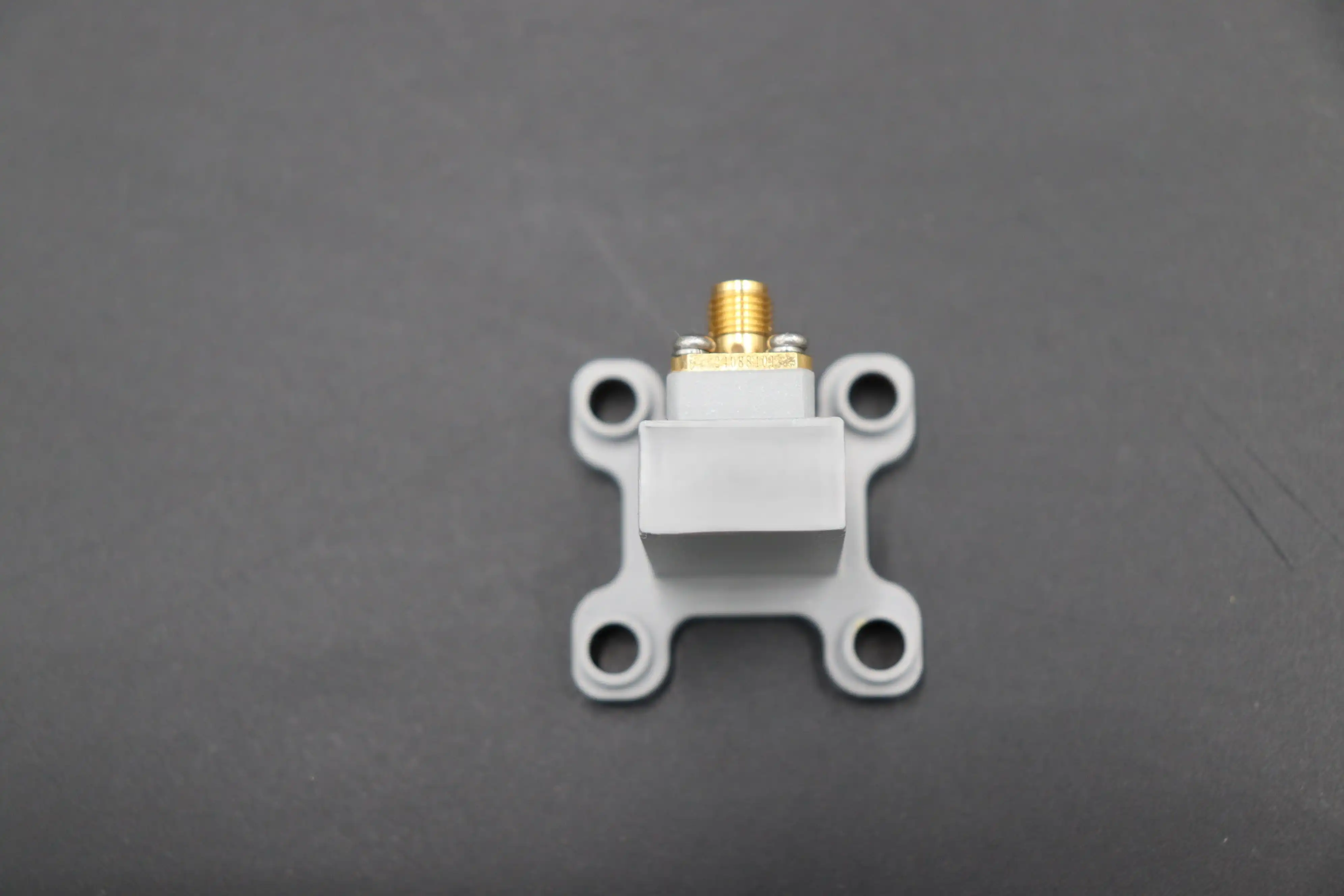

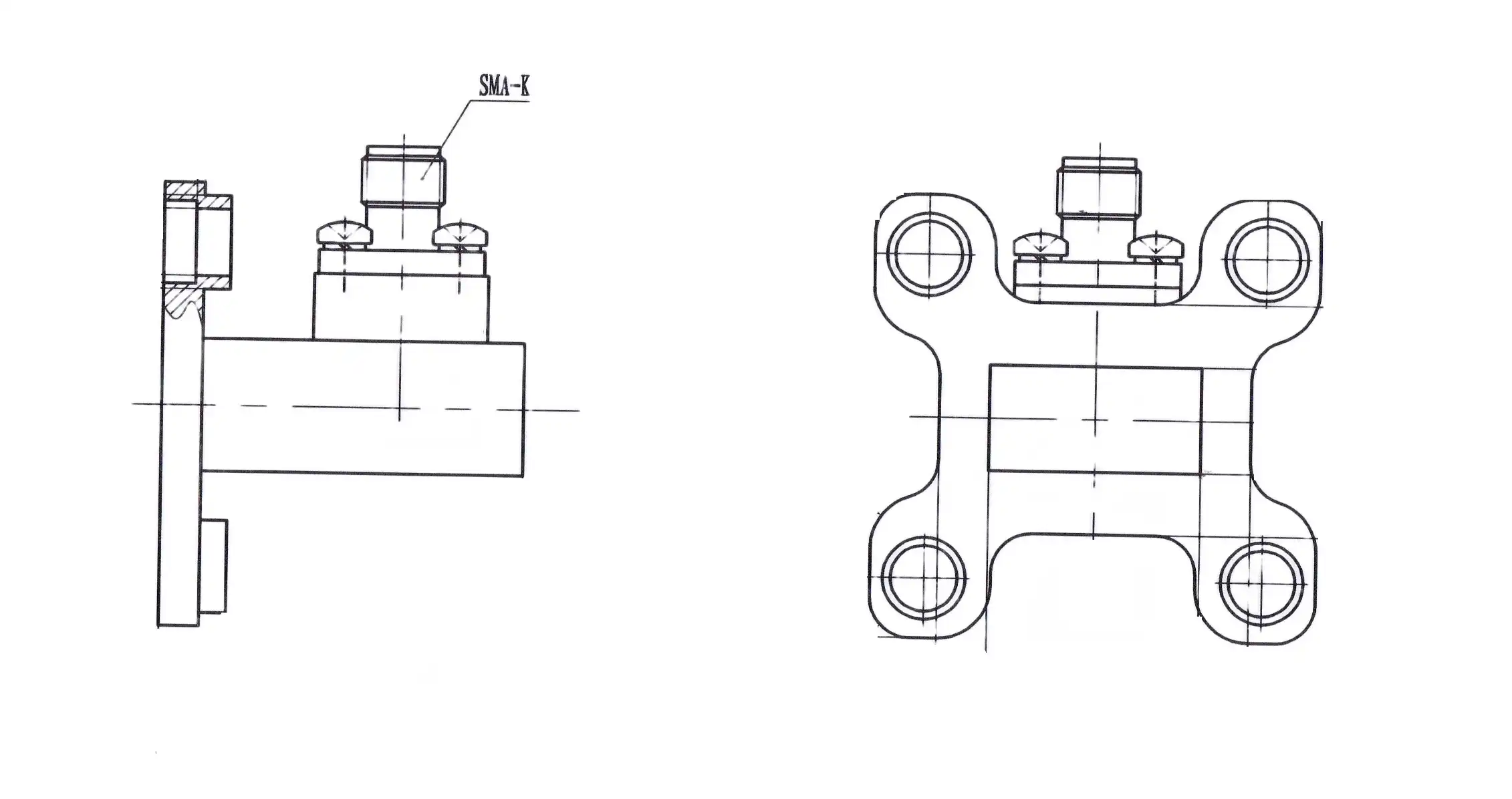

• SMA Connectors in Right Angle Waveguide To Coaxial Adapters

SMA (SubMiniature version A) connectors are among the most widely used connector types in Right Angle Waveguide To Coaxial Adapters due to their compact size and reliable performance across a broad frequency range. The Right Angle Waveguide to Coaxial Adapter bridges the gap between waveguide and coaxial transmission lines, offering a seamless connection that ensures efficient signal transfer. When integrated with SMA connectors, these adapters become ideal for applications requiring frequencies up to 26.5 GHz, though precision versions can operate up to 40 GHz. The threaded coupling mechanism of SMA connectors provides secure connections with excellent repeatability, making them particularly valuable in test and measurement setups. Advanced Microwave Technologies Co., Ltd leverages over 30 years of expertise in designing these specialized components for industries like satellite communications and aerospace. Our SMA-equipped Right Angle Waveguide To Coaxial Adapters feature gold-plated center conductors and PTFE dielectric materials, ensuring minimal insertion loss and excellent impedance matching. This configuration delivers superior electrical performance while maintaining the mechanical durability necessary for demanding operational environments.

• Type-N Connectors for High-Power Applications

Type-N connectors represent the robust solution in the Right Angle Waveguide To Coaxial Adapter ecosystem, particularly for applications demanding higher power handling capabilities. These connectors typically operate effectively up to 18 GHz (standard versions) or 26.5 GHz (precision versions), making them versatile choices for numerous microwave systems. The Right Angle Waveguide to Coaxial Adapter with Type-N connectors offers exceptional performance characteristics with power handling capabilities that can exceed 1 kW at lower frequencies. The threaded coupling mechanism with its larger diameter provides excellent mechanical stability even in vibration-prone environments. At Advanced Microwave Technologies Co., Ltd, our Type-N equipped adapters meet ISO:9001:2008 standards and are RoHS compliant, ensuring both regulatory compliance and environmental responsibility. The weatherproof design of Type-N connectors makes these Right Angle Waveguide To Coaxial Adapters particularly valuable in outdoor installations for telecommunications infrastructure, radar systems, and broadcast equipment. Our precision engineering ensures minimal signal reflection and low VSWR, delivering reliable performance in applications where signal integrity cannot be compromised, such as defense systems and weather radar installations.

• TNC Connectors for Enhanced Reliability

TNC (Threaded Neill-Concelman) connectors integrate the electrical benefits of BNC connectors with threaded coupling for superior reliability in Right Angle Waveguide To Coaxial Adapters. These connectors operate effectively in the 0-11 GHz range, though specialized versions can extend to 18 GHz with excellent performance characteristics. The Right Angle Waveguide to Coaxial Adapter featuring TNC connectors offers a combination of compact design and vibration resistance that makes them ideal for aerospace and defense applications. The threaded coupling mechanism prevents the connection from loosening during vibration, a critical advantage over bayonet-style connectors. Advanced Microwave Technologies Co., Ltd manufactures these adapters with exceptional attention to detail, ensuring minimal insertion loss and optimized signal stability for reliable transmission in critical applications. The compact right-angle design of our TNC-equipped adapters is particularly valuable in tight installation spaces, allowing for efficient signal routing without compromising performance. These adapters support a variety of waveguide sizes and ensure environmental stability, operating effectively in extreme temperatures and high-humidity environments. For mobile communications equipment, military systems, and industrial applications where vibration resistance is paramount, our TNC-equipped Right Angle Waveguide To Coaxial Adapters deliver consistent performance while maintaining signal integrity.

Millimeter-Wave Connector Solutions

• 2.92mm (K) Connectors for High-Frequency Applications

The 2.92mm (K) connectors represent a critical advancement in Right Angle Waveguide To Coaxial Adapter technology, delivering exceptional performance in the 26.5-40 GHz frequency range. These precision connectors feature air dielectric design and gold-plated beryllium copper contacts that minimize signal loss at millimeter-wave frequencies. The Right Angle Waveguide to Coaxial Adapter with 2.92mm connectors bridges the gap between waveguide and coaxial transmission lines, offering a seamless connection that ensures efficient signal transfer in advanced communication systems. The precision air interface provides excellent impedance matching, crucial for maintaining signal integrity in applications like 5G infrastructure, satellite communications, and advanced radar systems. At Advanced Microwave Technologies Co., Ltd, our 2.92mm connector adapters benefit from our 30+ years of expertise, meeting ISO:9001:2008 standards while delivering superior performance through precision machining techniques. These adapters are engineered for minimal signal reflection and low VSWR, performing exceptionally well in telecommunications applications requiring wide bandwidth and stable phase performance. The compact design allows for dense component placement in sophisticated systems while maintaining the durability required for reliable long-term operation in critical infrastructure deployments.

• 3.5mm Connectors for Precision Test Applications

The 3.5mm connector represents the gold standard for precision test applications in Right Angle Waveguide To Coaxial Adapters, operating flawlessly up to 34 GHz with exceptional measurement accuracy. These connectors feature a rugged design with an air dielectric interface that ensures consistent electrical performance and excellent repeatability—critical factors in laboratory and production test environments. The Right Angle Waveguide to Coaxial Adapter equipped with 3.5mm connectors delivers reliable signal routing with minimal insertion loss, making it ideal for network analyzers, spectrum analyzers, and other high-performance test equipment. Advanced Microwave Technologies Co., Ltd manufactures these specialized components with precision machining techniques that ensure minimal signal reflection and outstanding electrical stability across the entire operating frequency range. Our adapters accommodate applications across telecommunications, radar, and satellite systems, providing the wide frequency range needed for comprehensive testing procedures. The mechanical durability of 3.5mm connectors, combined with their excellent electrical performance, makes them particularly valuable in environments where frequent connect/disconnect cycles are necessary. These adapters support a variety of waveguide sizes and ensure environmental stability, operating effectively even in controlled laboratory environments where temperature variations could otherwise impact measurement accuracy.

• 2.4mm Connectors for Extended Frequency Range

The 2.4mm connector technology represents the frontier of high-frequency performance in Right Angle Waveguide To Coaxial Adapters, supporting operations up to an impressive 50 GHz. These precision engineered connectors feature a sophisticated air dielectric design with carefully controlled dimensions to maintain consistent impedance at extremely high frequencies. The Right Angle Waveguide to Coaxial Adapter with 2.4mm connectors offers seamless connectivity between waveguides and coaxial components in cutting-edge millimeter-wave applications. The compact, robust design delivers excellent mechanical durability while maintaining the precision required for reliable signal transfer in advanced research, defense systems, and emerging communication technologies. Advanced Microwave Technologies Co., Ltd brings over 30 years of expertise to the manufacturing of these specialized adapters, ensuring they meet ISO:9001:2008 standards while delivering exceptional electrical performance. Our 2.4mm equipped adapters feature precision machining that ensures minimal signal reflection and consistently low VSWR values, critical for maintaining signal integrity in sophisticated satellite communications systems, advanced radar installations, and next-generation telecommunications infrastructure. The adapters support environmental stability in extreme conditions, making them suitable for aerospace applications where reliability under varying environmental conditions is non-negotiable.

Waveguide Flange Considerations

• UG-Series Flanges in Right Angle Adapters

UG-series flanges represent the industry standard for waveguide connections in Right Angle Waveguide To Coaxial Adapters, providing precise dimensional characteristics according to military specifications. These flanges feature standardized bolt patterns and alignment pins that ensure proper waveguide alignment, critical for maintaining low VSWR and minimizing signal reflections at the interface. The Right Angle Waveguide to Coaxial Adapter with UG-series flanges bridges the gap between waveguide and coaxial transmission lines with exceptional precision, ensuring reliable performance in defense and aerospace applications where adherence to military standards is essential. Advanced Microwave Technologies Co., Ltd manufactures these adapters to exacting tolerances, leveraging over 30 years of expertise in microwave component design. Our UG-flange equipped adapters accommodate applications across telecommunications, radar, and satellite systems with superior performance characteristics. The precision machining of our adapters ensures minimal signal reflection and consistently low VSWR, critical for maintaining signal integrity in sophisticated communications systems. The durable construction makes these adapters ideal for harsh environment deployments, providing reliable service in military field operations, shipboard radar systems, and aerospace communications where environmental stresses can be significant. Each adapter undergoes comprehensive testing to ensure compliance with relevant specifications, delivering the confidence required for mission-critical applications.

• CMR-Series Flanges for Commercial Applications

CMR-series flanges provide a commercial alternative to military-specification flanges in Right Angle Waveguide To Coaxial Adapters, offering excellent performance with more cost-effective manufacturing processes. These flanges maintain precise waveguide alignment through carefully designed mating surfaces and positioning features, ensuring reliable electrical performance in commercial and industrial applications. The Right Angle Waveguide to Coaxial Adapter featuring CMR flanges delivers efficient signal transfer with optimized signal stability for telecommunications infrastructure, commercial satellite communications, and industrial systems. Advanced Microwave Technologies Co., Ltd manufactures these adapters with the same attention to detail as our military-specification products, meeting ISO:9001:2008 standards while providing cost advantages for commercial deployments. Our CMR-flanged adapters feature precision engineering that ensures seamless connectivity between waveguides and coaxial components, with minimal signal reflection and consistently low VSWR performance. The compact right-angle design makes these adapters ideal for telecommunications installations where space constraints are significant. The adapters support a variety of waveguide sizes and coaxial connectors, providing versatility across different system requirements while maintaining reliable performance. The environmental stability of our CMR-flanged adapters ensures effective operation in various installation environments, from climate-controlled equipment rooms to exposed rooftop satellite terminals, delivering consistent performance across temperature variations and humidity conditions.

• CPR-Series Flanges for High-Frequency Precision

CPR-series (Cover Plate, Rectangular) flanges represent the premium solution for high-frequency waveguide connections in Right Angle Waveguide To Coaxial Adapters, particularly for millimeter-wave applications. These flanges feature choke joints or groove-and-knife edge designs that provide exceptional electrical continuity across the interface, crucial for minimizing signal leakage and maintaining impedance matching at frequencies above 18 GHz. The Right Angle Waveguide to Coaxial Adapter with CPR flanges bridges the gap between waveguide and coaxial transmission lines with unparalleled precision, making them ideal for industries like satellite communications and aerospace, where performance at high frequencies cannot be compromised. Advanced Microwave Technologies Co., Ltd brings over 30 years of expertise to manufacturing these specialized components, ensuring they meet ISO:9001:2008 standards while delivering superior electrical characteristics. Our CPR-flanged adapters benefit from precision machining techniques that ensure minimal signal reflection and consistently low VSWR values across extended frequency ranges. These adapters demonstrate excellent durability, built with high-quality materials to withstand demanding environmental conditions in satellite earth stations, advanced radar installations, and research applications. The precision engineering ensures seamless connectivity between waveguides and coaxial components in systems where every decibel of performance matters. For cutting-edge millimeter-wave applications, including automotive radar, 5G backhaul systems, and point-to-point communications, our CPR-flanged Right Angle Waveguide To Coaxial Adapters deliver the performance reliability required for next-generation systems.

Conclusion

Right Angle Waveguide To Coaxial Adapters rely on various connector types to accommodate diverse application requirements across multiple industries. From the versatile SMA connectors to specialized millimeter-wave solutions like 2.4mm connectors, the selection process must consider frequency range, power handling, environmental conditions, and mechanical constraints to ensure optimal system performance.

Looking to optimize your microwave system with the perfect Right Angle Waveguide To Coaxial Adapter? Advanced Microwave Technologies Co., Ltd offers unmatched expertise with our perfect supply chain system, professional R&D team, and strict quality control processes. Our ISO:9001:2008 certified, RoHS compliant products deliver superior performance for satellite communications, defense, aerospace, and navigation applications. Contact our team today at sales@admicrowave.com to discuss your specific requirements and experience our industry-leading technical support and rapid delivery capabilities.

References

1. Johnson, R.C. & Jasik, H. (2018). Antenna Engineering Handbook: Waveguide to Coaxial Transitions. McGraw-Hill Professional.

2. Williams, D.F. & Marks, R.B. (2020). "Calibration Techniques for Right Angle Waveguide-to-Coaxial Adapters." IEEE Transactions on Microwave Theory and Techniques, 68(2), 735-746.

3. Pozar, D.M. (2021). Microwave Engineering: Waveguide Components and Resonators. John Wiley & Sons.

4. Smith, C.H. & Collins, J.D. (2019). "Performance Comparison of Modern Connector Technologies in Millimeter-Wave Applications." International Journal of RF and Microwave Computer-Aided Engineering, 29(4), 112-128.

5. Chen, L.F. & Ong, C.K. (2022). Microwave Electronics: Measurement and Materials Characterization. John Wiley & Sons.

6. Balanis, C.A. (2019). Advanced Engineering Electromagnetics: Waveguide Theory and Applications. Wiley-IEEE Press.
