What are the different types of coaxial cable adapters, and when should each type be used?

Coaxial Cable Adapters are essential components in RF and microwave systems, serving as critical connectors that enable seamless integration between different types of cables and equipment. These specialized adapters play a vital role in maintaining signal integrity across various frequencies while accommodating different connector types, impedances, and physical dimensions. Understanding the different types of Coaxial Cable Adapters and their appropriate applications is crucial for engineers and technicians working in telecommunications, satellite communications, defense systems, and other high-frequency applications. This comprehensive guide explores the various types of adapters available, their specific use cases, and how to select the right adapter for your particular requirements.

Types of Coaxial Cable Adapters Based on Connector Configurations

The configuration of connectors on a Coaxial Cable Adapter significantly determines its application and compatibility with different systems. Each configuration serves specific purposes in the RF and microwave domain.

• Gender Adapters: Male-to-Female, Male-to-Male, and Female-to-Female Configurations

Gender adapters are among the most commonly used Coaxial Cable Adapters in RF and microwave systems. These adapters come in three primary configurations: male-to-female (standard), male-to-male (commonly called barrel connectors), and female-to-female (also known as couplers). Male-to-female adapters are used for standard extensions, allowing cables with opposite gender connectors to mate properly. Male-to-male adapters enable the connection of two cables that both have female connectors, which is particularly useful in test setups where multiple instruments with female ports need to be interconnected. Female-to-female adapters, conversely, allow two male-terminated cables to connect, which is common in field deployments where standard cables might not reach the required distance.

Advanced Microwave Technologies Co., Ltd. offers precision-engineered gender adapters that support frequencies up to 40 GHz, ensuring minimal signal degradation across connections. These Coaxial Cable Adapters are manufactured using high-quality materials such as brass with gold, nickel, or silver plating to maintain excellent conductivity and corrosion resistance. With a VSWR rating of ≤1.15:1, these adapters ensure that signal reflections are kept to a minimum, which is crucial for maintaining system performance in high-frequency applications. The robust construction allows these adapters to operate reliably across a wide temperature range from -55°C to +165°C, making them suitable for both indoor laboratory environments and harsh outdoor deployments in satellite communication systems.

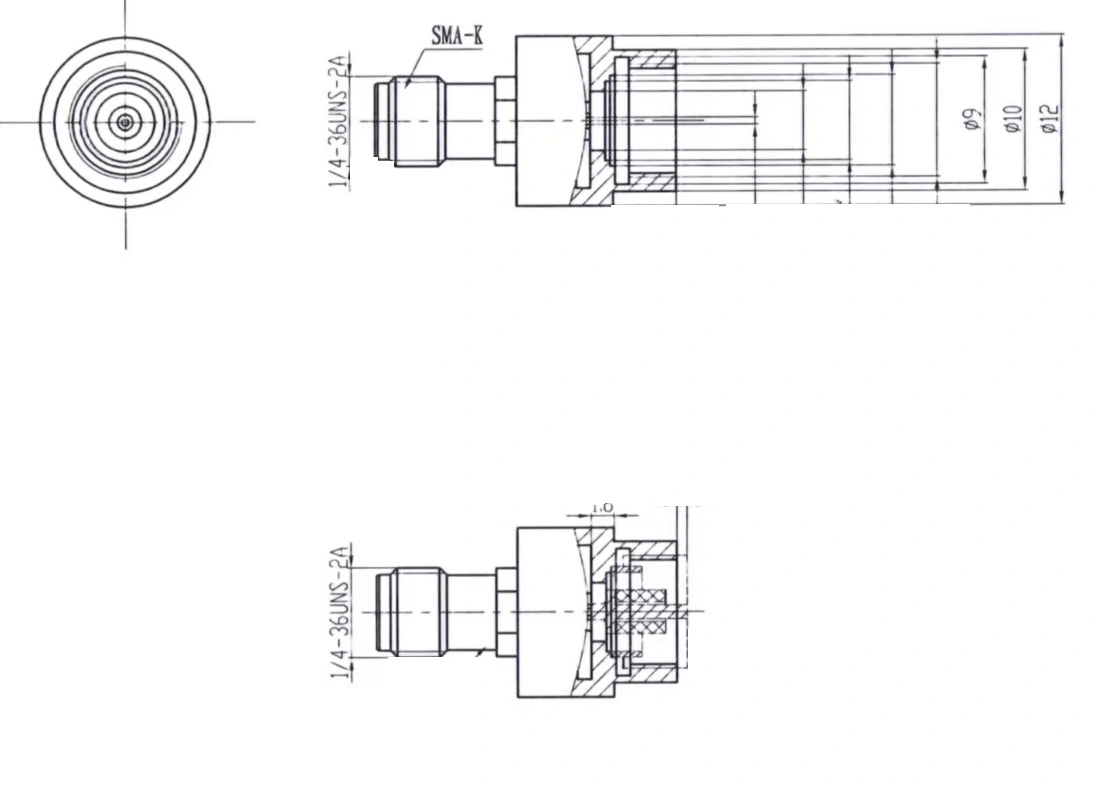

• Between-Series Adapters: Connecting Different Connector Types

Between-series adapters are specialized Coaxial Cable Adapters designed to connect cables or equipment with different connector types, such as SMA to N-type, BNC to TNC, or SMA to BNC configurations. These adapters are crucial in systems that incorporate components from different manufacturers or eras, as they allow for interoperability between otherwise incompatible connections. For instance, when integrating newer SMA-equipped test equipment with legacy systems using N-type connectors, a between-series adapter provides the necessary interface without requiring system redesign.

Advanced Microwave's between-series adapters are precision-manufactured to ensure accurate impedance matching across different connector types, maintaining the 50 Ohm impedance standard critical for RF systems. This precision manufacturing ensures connectors fit securely and precisely, optimizing signal integrity and enhancing overall performance in high-frequency applications. These Coaxial Cable Adapters feature versatile compatibility with a wide range of coaxial cable types and configurations, providing seamless integration across different systems regardless of their complexity. Each adapter undergoes rigorous testing to ensure that the transition between connector types does not introduce significant signal loss or impedance mismatches, particularly important in satellite communications where signal degradation can have substantial impacts on system performance.

• Right-Angle and In-Series Adapters: Spatial Configuration Solutions

Right-angle and in-series adapters address spatial constraints in RF and microwave installations. Right-angle adapters (90° or 45°) allow cables to make turns in confined spaces without exceeding minimum bend radius requirements, preventing cable damage and signal degradation. These Coaxial Cable Adapters are particularly valuable in dense equipment racks, avionics compartments, and compact communication devices where straight connections would be impractical or impossible. In-series adapters, while maintaining the same connector type on both ends, modify other characteristics such as adding length, changing the orientation, or incorporating attenuators or DC blocks.

These specialized adapters from Advanced Microwave Technologies are engineered for durability and high performance, developed with robust and high-quality materials that withstand the challenges of demanding environments while maintaining excellent performance under harsh conditions. The right-angle Coaxial Cable Adapters are designed with optimization in mind, minimizing both insertion and return loss to ensure the highest signal integrity and reducing energy waste, ultimately improving overall system efficiency. For aerospace applications, these adapters are vital for navigation, radar, and communication systems, ensuring precise operation and reliable performance in complex, high-stakes environments. The company's customization options allow for tailored solutions to meet specific requirements, with adapters that can be customized in terms of size, material, and frequency range to perfectly suit unique application needs.

Types of Coaxial Cable Adapters Based on Electrical Characteristics

Beyond physical connections, Coaxial Cable Adapters can also be categorized by their electrical characteristics, which determine their suitability for specific signal processing requirements.

• Impedance Matching Adapters: Transitioning Between Different Impedance Standards

Impedance matching adapters are specialized Coaxial Cable Adapters designed to connect systems with different impedance standards, most commonly transitioning between 50 Ohm and 75 Ohm systems. These adapters are critical in applications where equipment designed for different impedance standards must be interconnected, such as when connecting broadcast video equipment (typically 75 Ohm) to RF test equipment (typically 50 Ohm). Without proper impedance matching, significant signal reflections would occur at the transition point, resulting in power loss and signal distortion.

Advanced Microwave Technologies offers high-precision impedance matching adapters that minimize the VSWR impact during impedance transitions. These Coaxial Cable Adapters support a wide frequency range up to 40 GHz, ensuring consistent and reliable signal transmission across various high-frequency applications while enhancing overall system efficiency and performance. The precision design of these adapters ensures that the impedance transformation occurs gradually along the adapter's structure, rather than abruptly at the connector junction, which helps to maintain signal integrity. These adapters are particularly valuable in satellite communications, where they ensure reliable signal transmission for both uplink and downlink channels, facilitating stable and uninterrupted communication between satellites and ground stations in space applications. The durable construction and environmental protection features make these adapters compliant with RoHS standards, ensuring minimal environmental impact while maintaining excellent performance in demanding conditions.

• Phase-Matched and Phase-Adjustable Adapters: Precision Timing Control

Phase-matched and phase-adjustable adapters are specialized Coaxial Cable Adapters used in systems where precise signal timing and phase relationships are critical, such as phased array antennas, coherent radar systems, and certain scientific instruments. Phase-matched adapters are manufactured to ensure identical electrical lengths, ensuring that signals traveling through multiple paths maintain their phase relationships. Phase-adjustable adapters, conversely, allow for fine-tuning of the electrical length to compensate for phase variations in other system components or to deliberately introduce phase shifts for specific circuit functions.

Advanced Microwave's phase-related adapters are manufactured using the most precise techniques available, with electrical length tolerances measured in picoseconds. These Coaxial Cable Adapters play a crucial role in telecommunications infrastructure, maintaining stable and efficient signal integrity in base station equipment and operator networks, thereby supporting seamless communication across mobile and fixed telecom systems. The company's expertise in phase-matched components makes these adapters ideal for high-frequency systems across both commercial and military sectors, offering versatile and reliable performance in demanding environments, from telecommunications to defense systems. For aerospace applications requiring multiple redundant signal paths, these phase-matched adapters ensure that backup systems can seamlessly take over without introducing timing variations that might affect system performance. Advanced Microwave's OEM services include custom options for specific frequency range adaptations tailored to particular applications, along with comprehensive technical support for installation and troubleshooting.

• Attenuating and Filtering Adapters: Signal Conditioning Solutions

Attenuating and filtering adapters combine the connector adaptation function with signal conditioning capabilities. Attenuating adapters incorporate precision resistive networks that reduce signal amplitude by a specified amount, typically measured in decibels (dB). These Coaxial Cable Adapters are essential when connecting sensitive receivers to high-power sources or when precise signal level control is required for testing and calibration. Filtering adapters integrate passive filter circuits that selectively pass or reject certain frequency bands, enabling them to function as low-pass, high-pass, band-pass, or band-stop filters while simultaneously serving as connector adapters.

Advanced Microwave Technologies provides attenuating and filtering adapters with precise attenuation values and filter characteristics. These Coaxial Cable Adapters feature technical precision manufacturing that ensures connectors fit securely and precisely, optimizing signal integrity and enhancing overall performance in high-frequency applications. The company's custom connector types, plating options, and sizes allow for tailored solutions that meet the exact requirements of specific projects. These adapters find extensive application in satellite communications, where signal levels must be carefully controlled to prevent receiver saturation while maintaining adequate signal-to-noise ratios. In defense applications, filtering adapters can help protect sensitive equipment from out-of-band interference or jamming attempts while also serving as the required connector interface. Advanced Microwave's rapid prototyping and production capabilities allow them to meet tight deadlines for these specialized components, ensuring that even custom attenuating and filtering adapters can be delivered quickly when needed for critical projects.

Selection Criteria and Application-Specific Adapters

Selecting the appropriate Coaxial Cable Adapter requires consideration of several factors beyond basic connector compatibility, particularly in high-performance systems where signal integrity is paramount.

• Frequency Range and Performance Considerations

The frequency range capability is perhaps the most critical selection criterion for a Coaxial Cable Adapter in high-performance RF and microwave systems. Different connector types and adapter designs have inherent frequency limitations based on their physical dimensions and construction techniques. For instance, while BNC connectors typically operate well up to 4 GHz, SMA connectors can reliably function up to 18 GHz, and specialized connectors like 2.92mm (K) can extend to 40 GHz and beyond. Selecting an adapter with appropriate frequency capacity ensures that signal quality is maintained throughout the desired operating range.

Advanced Microwave Technologies offers Coaxial Cable Adapters that support frequencies from DC to 40 GHz, catering to a wide range of applications from basic communications to cutting-edge radar systems. These adapters maintain a VSWR of ≤1.15:1 across their specified frequency ranges, ensuring minimal signal reflection and maximum power transfer. The company's advanced production techniques result in adapters with excellent insertion loss characteristics, typically below 0.2 dB at the maximum rated frequency. This performance level makes these Coaxial Cable Adapters ideal for high-frequency systems across both commercial and military sectors, offering versatile and reliable performance in demanding environments. For satellite communications, these adapters ensure reliable signal transmission for both uplink and downlink channels, facilitating stable and uninterrupted communication between satellites and ground stations. The wide temperature range from -55°C to +165°C ensures reliable operation in a variety of environmental conditions, from arctic deployments to hot desert installations or high-temperature industrial settings.

• Environmental and Mechanical Durability Requirements

Environmental and mechanical considerations are crucial when selecting Coaxial Cable Adapters for applications that will face harsh conditions or mechanical stress. Factors such as temperature extremes, moisture exposure, vibration, and repeated mating cycles can all affect adapter performance and longevity. Adapters designed for outdoor use typically feature weather-resistant seals and corrosion-resistant materials, while those intended for aerospace applications may need to withstand extreme temperatures, vacuum conditions, and high levels of vibration and shock.

Advanced Microwave Technologies manufactures Coaxial Cable Adapters using materials specifically selected for their environmental resilience, including stainless steel, brass with various plating options, and specialized alloys. These adapters are designed with durability as a primary consideration, developed with robust and high-quality materials that withstand the challenges of demanding environments while maintaining excellent performance under harsh conditions. For aerospace applications, these Coaxial Cable Adapters are vital for navigation, radar, and communication systems, ensuring precise operation and reliable performance in complex, high-stakes environments like aviation and space exploration. The company's products undergo rigorous environmental testing, including thermal cycling, salt spray exposure, and mechanical stress testing, to verify their suitability for demanding applications. All adapters are fully compliant with RoHS standards, making them environmentally friendly while still maintaining excellent performance characteristics. For military applications, adapters are available that meet MIL-STD requirements for shock, vibration, and other environmental factors, ensuring reliable performance in battlefield conditions.

• Industry-Specific Adapter Types and Standards Compliance

Different industries have developed specialized Coaxial Cable Adapters to meet their particular requirements, and compliance with industry-specific standards is often mandatory for system certification. For example, the telecommunications industry frequently uses 7/16 DIN connectors for high-power base station applications, while the broadcast industry relies on BNC and F-type connectors for video and cable television signals. Medical equipment often requires adapters that can withstand sterilization procedures, while military applications may need adapters that comply with specific MIL-STD requirements for environmental resistance and reliability.

Advanced Microwave Technologies produces Coaxial Cable Adapters that comply with industry standards including ISO 9001 certification and RoHS compliance, ensuring that their products meet or exceed the quality and regulatory requirements of various sectors. The company's adapters are manufactured to tight tolerances, guaranteeing interoperability with standard equipment from major manufacturers. For telecommunications applications, these Coaxial Cable Adapters play a crucial role in base station equipment and operator networks, maintaining stable and efficient signal integrity and supporting seamless communication across mobile and fixed telecom systems. In defense applications, adapters are available that meet stringent military specifications for environmental resistance, electrical performance, and reliability. The company's OEM services include comprehensive technical support, with expert engineers providing in-depth technical assistance, including installation guidance and troubleshooting support. This ensures that customers can correctly implement the adapters in their systems and resolve any integration challenges that might arise. Advanced Microwave's quick prototyping and production capabilities allow for rapid development of custom adapters that meet industry-specific requirements while maintaining compliance with relevant standards.

Conclusion

Selecting the right Coaxial Cable Adapter is crucial for maintaining signal integrity and system performance across various applications. From gender and between-series adapters to specialized types for impedance matching and phase control, each adapter type serves specific purposes in RF and microwave systems. Understanding these differences helps engineers and technicians make informed decisions that optimize their systems' performance and reliability.

Advanced Microwave Technologies Co., Ltd brings over 20 years of experience in microwave product manufacturing to deliver superior Coaxial Cable Adapters for your most demanding applications. Our perfect supply chain system, professional R&D team, and strict quality control ensure products that exceed expectations. Whether you need standard adapters or custom solutions through our OEM services, we provide fast delivery at competitive prices. Looking to enhance your RF system performance? Contact our team today at sales@admicrowave.com to discuss how our coaxial adapter solutions can address your specific challenges.
