What are the different types of WG adapters available in the market?

April 7, 2025

Waveguide (WG) adapters are essential components in microwave communication systems, providing crucial connectivity between different transmission line technologies. These precision-engineered devices enable the seamless transition of electromagnetic signals between waveguides and other transmission components such as coaxial cables or microstrip lines. The market offers numerous types of WG adapters, each designed to meet specific frequency ranges, power requirements, and installation configurations. Advanced Microwave Technologies Co., Ltd., with over 20 years of expertise in microwave products, manufactures a comprehensive range of WG adapters catering to various industry needs, from radar systems to satellite communications and beyond.

Classification of Waveguide Adapters by Interface Configuration

Understanding the various interface configurations of waveguide adapters is crucial for selecting the right component for your specific application. The configuration directly impacts installation flexibility, signal integrity, and overall system performance.

End-Launch Waveguide to Coaxial Adapters

End-launch WG adapters represent one of the most commonly utilized configurations in the market, providing a direct in-line connection between waveguides and coaxial cables. These adapters are designed to maintain signal integrity by aligning the propagation axes of both transmission mediums. The WG adapter produced by Advanced Microwave Technologies features an ultra-wide frequency range, spanning from low frequencies to millimeter waves, making it suitable for numerous applications. With insertion loss often reaching as low as 0.1dB or even lower, these adapters ensure minimal signal degradation during the transition from waveguide to coaxial line. End-launch models such as the ADM-100WCAST1 operate efficiently in the 10-11GHz frequency range with a maximum VSWR of 1.15, ensuring excellent impedance matching. The design prioritizes power efficiency, with these adapters capable of handling significant power levels—from watts to kilowatts—depending on the specific model and frequency range. This makes them particularly valuable in high-power applications like radar systems and transmission stations where signal integrity at higher power levels is critical. Advanced Microwave's end-launch adapters feature precision-manufactured interfaces including N-type (both male and female), SMA (male and female), K2.92 (male and female), and V2.4 connectors (male and female), accommodating virtually any system requirement. Manufactured using high-quality copper with silver plating on interior surfaces and anticorrosion gray paint externally, these adapters offer exceptional durability even in challenging environmental conditions. This combination of electrical performance and mechanical robustness makes end-launch WG adapters from Advanced Microwave Technologies a preferred choice for applications where straight-line signal paths are possible and simplicity of installation is desired.

Right-Angle Waveguide to Coaxial Adapters

Right-angle WG adapters offer an innovative solution when space constraints or system layout necessitates a 90-degree turn in the signal path. These specialized adapters from Advanced Microwave Technologies are engineered to maintain signal integrity despite the sharp directional change, featuring carefully designed internal structures that minimize reflections and standing waves. Right-angle configurations are particularly valuable in compact systems where straight-line connections would be impractical or impossible due to spatial limitations. With Advanced Microwave's right-angle WG adapters, engineers can design more compact equipment without sacrificing performance, as these components typically maintain a VSWR in the 1.1 to 1.5 range despite the challenging geometry. The right-angle design creates flexibility in system layout that would otherwise be impossible with traditional straight connections. These adapters feature the same high-quality construction as their end-launch counterparts, utilizing materials such as aluminum, brass, and stainless steel that ensure robust performance in various environmental conditions. Advanced Microwave's right-angle adapters undergo rigorous testing to ensure consistent performance across temperature variations, mechanical stress, and extended operation periods. This testing regime guarantees that these adapters maintain their specified electrical characteristics even after installation in complex systems. The company manufactures these right-angle adapters with various coaxial connector options, including N-K, N-J, SMA-K, SMA-J, K2.92-K, K2.92-J, V2.4-K, and V2.4-J, providing flexibility for different system requirements. The compact design allows for easy adaptation to various scenarios and convenient installation in space-limited devices such as satellite terminals and portable radars, making them indispensable in modern microwave systems where space optimization is a critical concern.

Waveguide to Microstrip Adapters

Waveguide to microstrip adapters represent a specialized category designed to interface between waveguide transmission lines and planar microstrip circuits common in modern RF designs. These sophisticated components solve the challenging problem of transitioning from the three-dimensional propagation mode of waveguides to the two-dimensional propagation mode of microstrip transmission lines. Advanced Microwave Technologies has developed WG adapters with exceptional performance characteristics in this category, featuring insertion loss as low as 0.15 dB and VSWR of 1.15 or better across specified frequency bands. This level of performance is crucial for preserving signal integrity in high-frequency applications where even small losses or reflections can significantly impact system performance. The company's waveguide to microstrip adapters are designed with precise impedance matching structures to ensure optimal energy transfer between the fundamentally different transmission mediums. These adapters are particularly valuable in modern integrated microwave assemblies where waveguide components must interface with microstrip-based circuits such as filters, amplifiers, and mixers. Advanced Microwave's adaptors demonstrate wide frequency coverage, with models available for various bands from S-band (2-4GHz) through to Ka-band (26.5-40GHz) and beyond, ensuring compatibility with virtually any microwave system requirement. The manufacturing process includes high-precision machining and plating to ensure dimensional accuracy and electrical performance stability over time. For applications requiring custom specifications, Advanced Microwave offers design services that can optimize performance for particular frequency ranges, power requirements, or mechanical constraints. This flexibility makes these adapters particularly valuable in specialized fields such as aerospace and defense, where off-the-shelf solutions may not meet unique system requirements. Each waveguide to microstrip adapter undergoes comprehensive quality control procedures including network analyzer measurements to verify electrical specifications and mechanical inspection to ensure proper fit and finish.

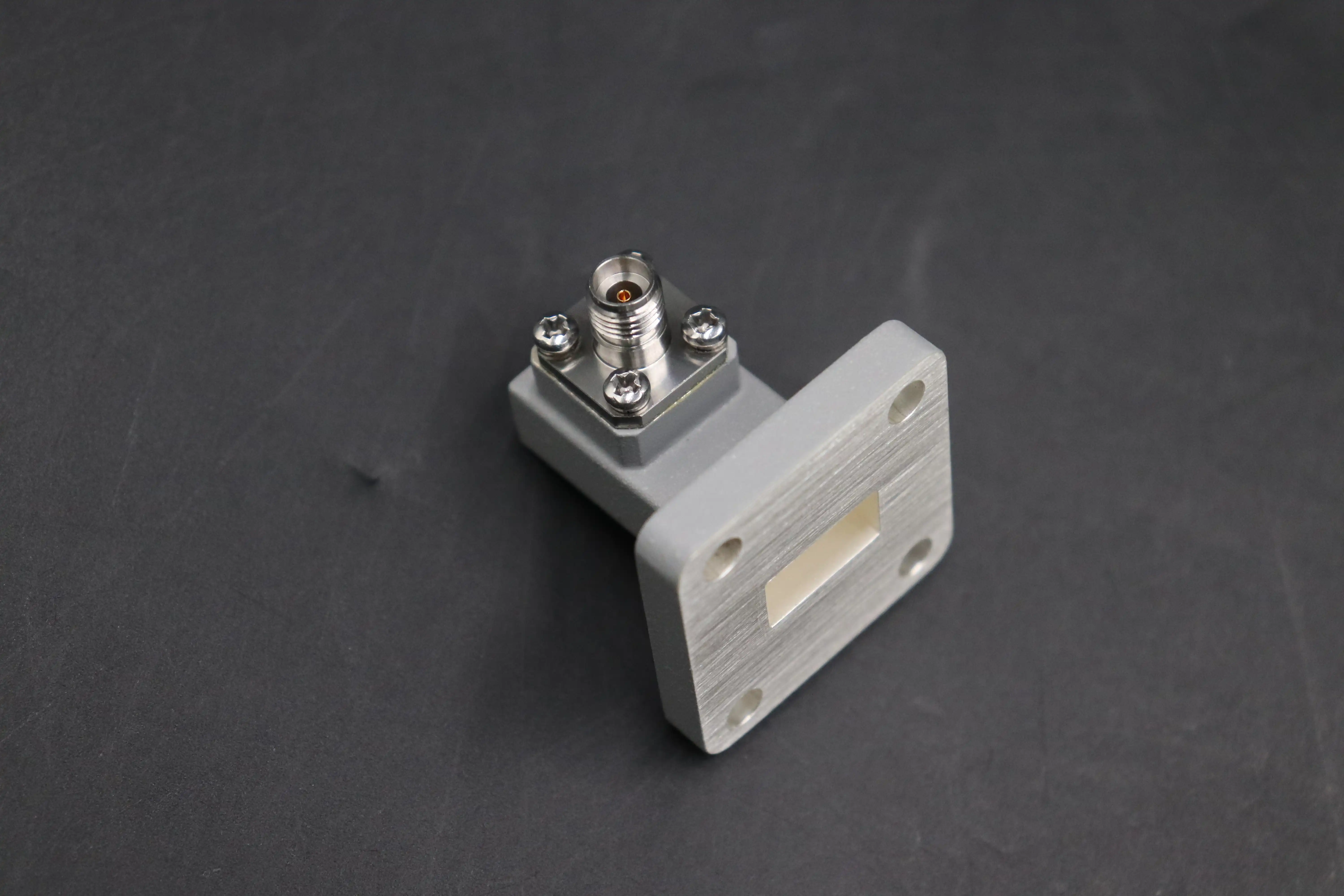

WG Adapter

Types of Waveguide Adapters Based on Frequency Bands

Waveguide adapters are carefully designed to operate within specific frequency ranges, with their dimensions and characteristics optimized for particular bands. Understanding the various frequency-based classifications is essential for selecting the appropriate WG adapter for your application.

Low-Frequency Band Waveguide Adapters (L, S, C Bands)

Low-frequency band WG adapters cover the vital frequency ranges including L-band (1-2 GHz), S-band (2-4 GHz), and C-band (4-8 GHz), serving as critical components in numerous communication systems and radar applications. Advanced Microwave Technologies produces high-quality adapters for these frequency bands with exceptional technical specifications that ensure reliable performance. These low-frequency WG adapters feature larger physical dimensions compared to their higher-frequency counterparts, reflecting the inverse relationship between frequency and wavelength. For instance, S-band adapters from Advanced Microwave are precision-engineered to maintain insertion loss as low as 0.1dB or less, ensuring minimal signal degradation during transmission. This characteristic is particularly important in applications such as weather radar systems, where signal integrity directly impacts detection accuracy. The company's low-frequency adapters also maintain a low VSWR (Voltage Standing Wave Ratio) of 1.1-1.5, minimizing signal reflections and maximizing power transfer efficiency. This feature is crucial for applications like broadcast satellite services operating in the C-band, where power efficiency translates directly to coverage area and service quality. Advanced Microwave's adapters in these bands offer exceptional power-handling capabilities, ranging from watts to kilowatts, making them suitable for high-power applications such as military radar systems. The robust construction using materials like aluminum, brass, and stainless steel ensures long-term stability and reliability even in challenging environmental conditions. These adapters undergo rigorous testing to verify their performance across temperature variations and extended operation periods, guaranteeing consistent results in field deployments. The company offers both standard configurations and custom designs to meet specific requirements, providing flexible solutions for system integrators working with these frequency bands. Whether for ground-based communication systems, maritime radar installations, or broadcast infrastructure, Advanced Microwave's low-frequency WG adapters deliver exceptional performance that meets or exceeds industry standards for insertion loss, VSWR, and power handling.

Mid-Frequency Band Waveguide Adapters (X, Ku Bands)

Mid-frequency band WG adapters encompassing X-band (8-12 GHz) and Ku-band (12-18 GHz) represent some of the most widely utilized components in modern microwave systems, particularly in satellite communications, radar applications, and point-to-point links. Advanced Microwave Technologies' adapters for these bands exemplify precision engineering, with models such as the ADM-100WCAST1 operating in the 10-11GHz range with remarkably low insertion loss of just 0.15 dB maximum and VSWR of 1.15. These specifications ensure superior signal integrity critical for applications like satellite uplinks and military radar systems where performance requirements are stringent. The company's mid-frequency adapters feature carefully optimized internal structures that maintain consistent electrical performance across their specified frequency ranges. This characteristic is particularly important in wideband applications where signal quality must remain uniform across multiple channels or frequency-hopping systems.

Manufactured using high-quality copper with silver plating on interior surfaces, these adapters provide excellent conductivity that minimizes losses even at these higher frequencies. The external anticorrosion gray paint finish ensures long-term durability in various installation environments, from climate-controlled facilities to exposed outdoor installations. Advanced Microwave offers these mid-frequency adapters in both end-launch and right-angle configurations, providing installation flexibility for system designers. Available with various connector options including N-type, SMA, K2.92, and other precision RF interfaces, these adapters can integrate seamlessly with virtually any existing infrastructure. The company's quality control processes ensure consistent performance across production batches, with each adapter undergoing individual testing to verify compliance with published specifications. These mid-frequency adapters find extensive application in critical infrastructure including air traffic control radar systems, maritime navigation equipment, and commercial satellite ground stations. With their combination of precision manufacturing, excellent electrical performance, and mechanical robustness, Advanced Microwave's X-band and Ku-band adapters represent the industry standard for these essential frequency ranges. The company's commitment to consistent quality and performance has established these products as preferred components for system integrators and OEMs working in these bands.

High-Frequency Band Waveguide Adapters (K, Ka, V, W Bands)

High-frequency band WG adapters operating in K-band (18-26.5 GHz), Ka-band (26.5-40 GHz), V-band (40-75 GHz), and W-band (75-110 GHz) represent the cutting edge of microwave technology, enabling modern millimeter-wave applications in 5G infrastructure, point-to-point communications, and advanced radar systems. Advanced Microwave Technologies has developed exceptional adapters for these demanding frequency ranges, featuring sophisticated design elements that overcome the unique challenges of millimeter-wave signal transmission. These high-frequency adapters require extraordinary manufacturing precision, as even microscopic dimensional variations can significantly impact performance at these wavelengths. Advanced Microwave utilizes state-of-the-art production techniques including high-precision CNC machining and advanced plating processes to ensure dimensional accuracy and surface conductivity essential for millimeter-wave performance. The company's WG adapters in these bands maintain impressive specifications despite the challenges of higher frequencies, with insertion loss typically ranging from 0.2 to 0.4 dB depending on the specific band and model. This performance level ensures that signal degradation is minimized even at frequencies where traditional coaxial connections become increasingly inefficient.

Advanced Microwave's high-frequency adapters feature specialized connector options including K2.92 and V2.4 interfaces that maintain consistent impedance characteristics essential for millimeter-wave applications. These precision connectors enable reliable connections even at frequencies approaching 110 GHz, the upper limit of the company's testing capabilities. The adapters undergo comprehensive testing in Advanced Microwave's specialized laboratories equipped with network analyzers capable of measurements up to 110 GHz, ensuring that published specifications are verified through direct measurement rather than extrapolation. This testing regime confirms that each adapter will perform as expected when integrated into customer systems. These high-frequency adapters find applications in emerging technologies including automotive radar systems, 5G backhaul links, and scientific research equipment where millimeter-wave frequencies provide advantages in bandwidth, resolution, or component size. Advanced Microwave offers both catalog models for standard applications and custom designs for specialized requirements, providing flexibility for system developers working at the frontiers of RF technology. With their combination of precision manufacturing, excellent electrical performance, and reliability, the company's high-frequency WG adapters represent essential components for industries leveraging the advantages of millimeter-wave frequencies.

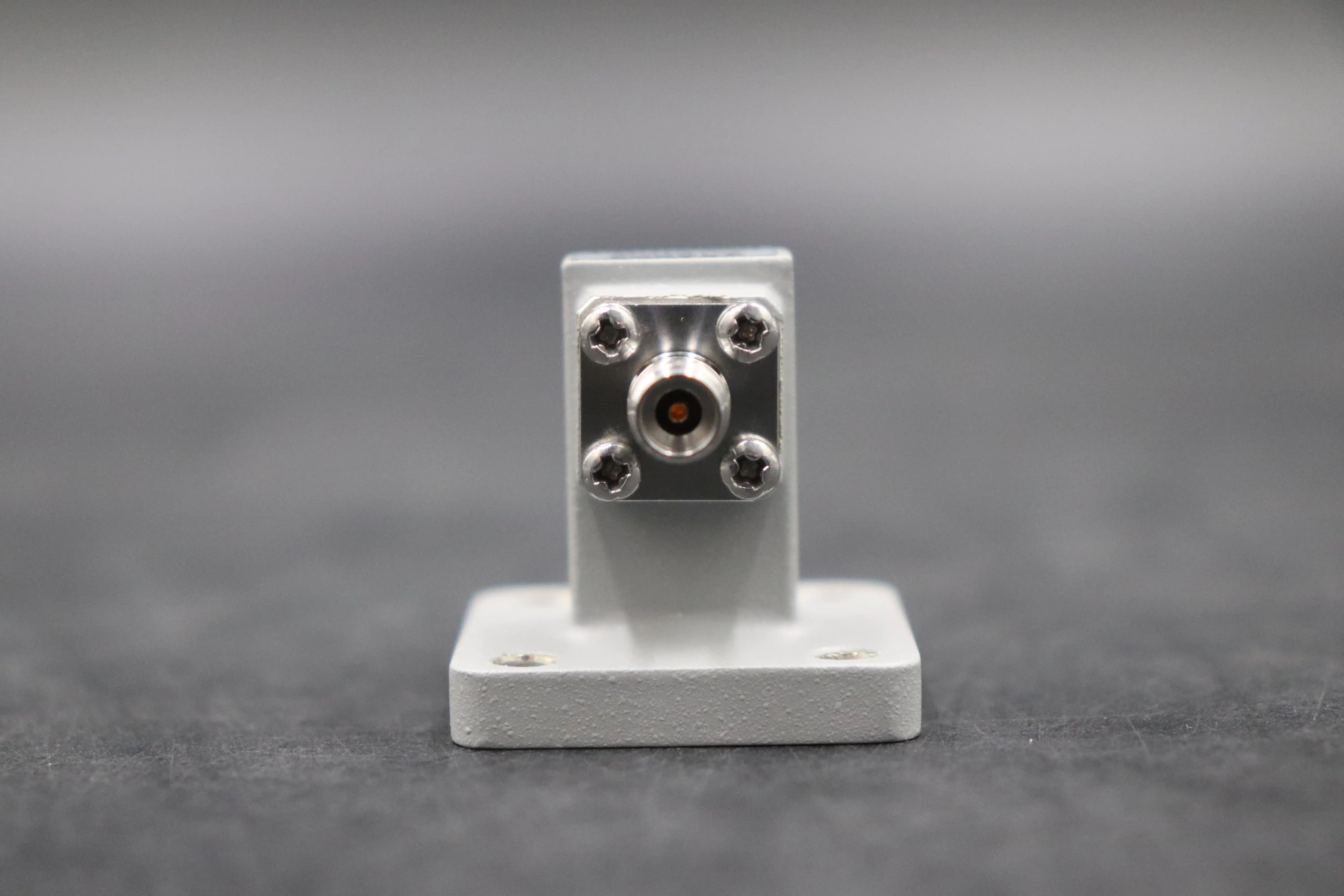

WG Adapter

Specialized Waveguide Adapter Variations

Beyond standard configurations, the market offers specialized waveguide adapter variations designed to address unique requirements and challenging application scenarios. These specialized adapters provide solutions for complex system designs and specific performance needs.

Dual-Polarization Waveguide Adapters

Dual-polarization WG adapters represent a sophisticated category designed to support applications requiring simultaneous transmission or reception of signals with different polarization orientations. Advanced Microwave Technologies has developed these specialized components to meet the growing demands of modern communication systems that utilize polarization diversity to increase channel capacity or improve signal reliability. These adapters feature carefully engineered internal structures that maintain separation between orthogonal polarization modes while providing excellent impedance matching for both channels. The WG adapter produced by Advanced Microwave Technologies stands out with its ultra-wide frequency range capability, ensuring stable signal transmission across diverse polarization scenarios. With insertion loss often reaching as low as 0.1dB or lower for each polarization channel, and VSWR typically ranging from 1.1 to 1.5, these adapters maintain excellent signal quality for both polarization orientations. This performance level is critical in applications such as satellite communication systems where polarization diversity is used to double channel capacity within the same frequency allocation.

Dual-polarization adapters from Advanced Microwave are manufactured using premium materials including brass, aluminum, and stainless steel, providing the mechanical stability needed to maintain precise internal geometry essential for polarization separation. The internal surfaces feature silver plating to maximize conductivity and minimize losses, while external surfaces receive anticorrosion treatments to ensure long-term reliability in various installation environments. These specialized adapters find applications in advanced radar systems that utilize polarization characteristics for target identification, weather monitoring systems that analyze precipitation types through polarization effects, and satellite ground stations that must interface with spacecraft using orthogonal polarization for channel separation. Advanced Microwave offers both standard dual-polarization adapter configurations and custom designs optimized for specific system requirements. Each unit undergoes comprehensive testing for both polarization channels to verify cross-polarization isolation, insertion loss, and VSWR performance, ensuring that the adapter will perform as expected when integrated into customer systems. The company's expertise in dual-polarization design allows them to provide technical guidance for system integrators, helping customers select the optimal configuration for their particular application requirements.

High-Power Waveguide Adapters

High-power WG adapters are specialized components engineered to handle substantial RF power levels without degradation, arcing, or failure, meeting the demands of high-energy applications in radar systems, broadcast transmitters, and industrial heating equipment. Advanced Microwave Technologies has developed exceptional high-power adapters that combine robust mechanical design with optimized electrical characteristics to ensure reliable performance under demanding conditions. These adapters feature enhanced power-handling capabilities from watts to kilowatts or more, achieved through careful material selection, precision machining, and specialized internal geometry that minimizes peak field strengths that could lead to breakdown. The company's high-power WG adapters maintain excellent electrical specifications even at elevated power levels, with insertion loss typically as low as 0.15 dB and VSWR maximums of 1.15, ensuring efficient power transfer critical for transmitter systems where every decibel matters. Advanced Microwave manufactures these adapters using materials selected specifically for their thermal and electrical properties, including copper alloys with excellent conductivity and heat dissipation characteristics.

Internal surfaces receive specialized plating treatments that enhance conductivity while resisting the effects of high-power RF fields, and some models incorporate direct or indirect cooling features to manage thermal loading during continuous high-power operation. These high-power adapters undergo rigorous testing beyond standard electrical verification, including power handling validation that confirms their capability to withstand specified power levels without degradation. This testing ensures that each adapter will perform reliably in customer applications without risk of failure that could damage expensive transmitter components. The company offers high-power adapters across multiple frequency bands from L-band through Ka-band, with power specifications tailored to the physical constraints and application requirements of each band. Custom designs are available for specialized requirements, including adapters with integrated monitoring ports for forward and reflected power measurement, or with specialized cooling configurations for extreme power levels. Advanced Microwave's high-power WG adapters serve critical applications in defense systems including high-power radar transmitters, broadcast infrastructure for television and radio transmission, scientific research facilities including particle accelerators and plasma physics equipment, and industrial processes such as microwave heating and material processing. Their combination of power-handling capability, electrical performance, and mechanical durability makes these adapters essential components in systems where compromise is not an option.

Precision Test and Measurement Waveguide Adapters

Precision test and measurement WG adapters represent the pinnacle of accuracy and performance in the waveguide component industry, designed specifically for metrology applications, calibration systems, and high-precision laboratory environments. Advanced Microwave Technologies has developed these specialized components with extraordinarily tight tolerances and exceptional electrical characteristics to meet the demands of the most exacting measurement requirements. These metrology-grade adapters feature remarkably low insertion loss, often reaching as low as 0.1dB or even lower, and exceptionally low VSWR, typically ranging from 1.05 to 1.15 depending on frequency range. This level of performance is achieved through meticulous design optimization, ultra-precise manufacturing processes, and comprehensive individual testing and characterization. The company's precision adapters are manufactured using premium materials with superior stability characteristics, ensuring that performance remains consistent across temperature variations and over extended time periods. Internal surfaces receive specialized plating treatments optimized for conductivity and stability rather than just maximum power handling, as precision in signal transfer takes precedence over raw power capability in measurement applications.

Advanced Microwave provides detailed calibration data with each precision adapter, including individually measured S-parameters across the specified frequency range. This data allows users to apply correction factors in their measurement procedures, further enhancing overall system accuracy. Some models offer integrated precision interfaces for direct connection to network analyzers or other test equipment, minimizing the number of connections in a measurement path and reducing associated uncertainties. These precision adapters find applications in national metrology institutes maintaining primary standards, calibration laboratories providing traceability to industry, R&D facilities developing next-generation RF components, and production test systems for high-performance microwave components. Advanced Microwave's laboratories are equipped with advanced microwave measurement equipment up to 110 GHz, enabling comprehensive verification of adapter performance across extremely wide frequency ranges. This testing capability ensures that each precision adapter meets or exceeds its published specifications. The company's precision test and measurement adapters are ISO:9001:2008 certified and RoHS compliant, providing customers with confidence in both performance and regulatory compliance. With their combination of exceptional electrical characteristics, manufacturing precision, and comprehensive documentation, these adapters represent essential tools for organizations where measurement accuracy directly impacts product quality, research outcomes, or certification results.

Conclusion

Waveguide adapters represent critical components in modern RF and microwave systems, with various types available to meet specific application requirements. From end-launch and right-angle configurations to specialized high-power and precision measurement variants, each adapter type serves a unique purpose across the frequency spectrum. Advanced Microwave Technologies Co., Ltd. stands at the forefront of this technology, offering comprehensive solutions with superior performance characteristics, customization options, and expert technical support.
