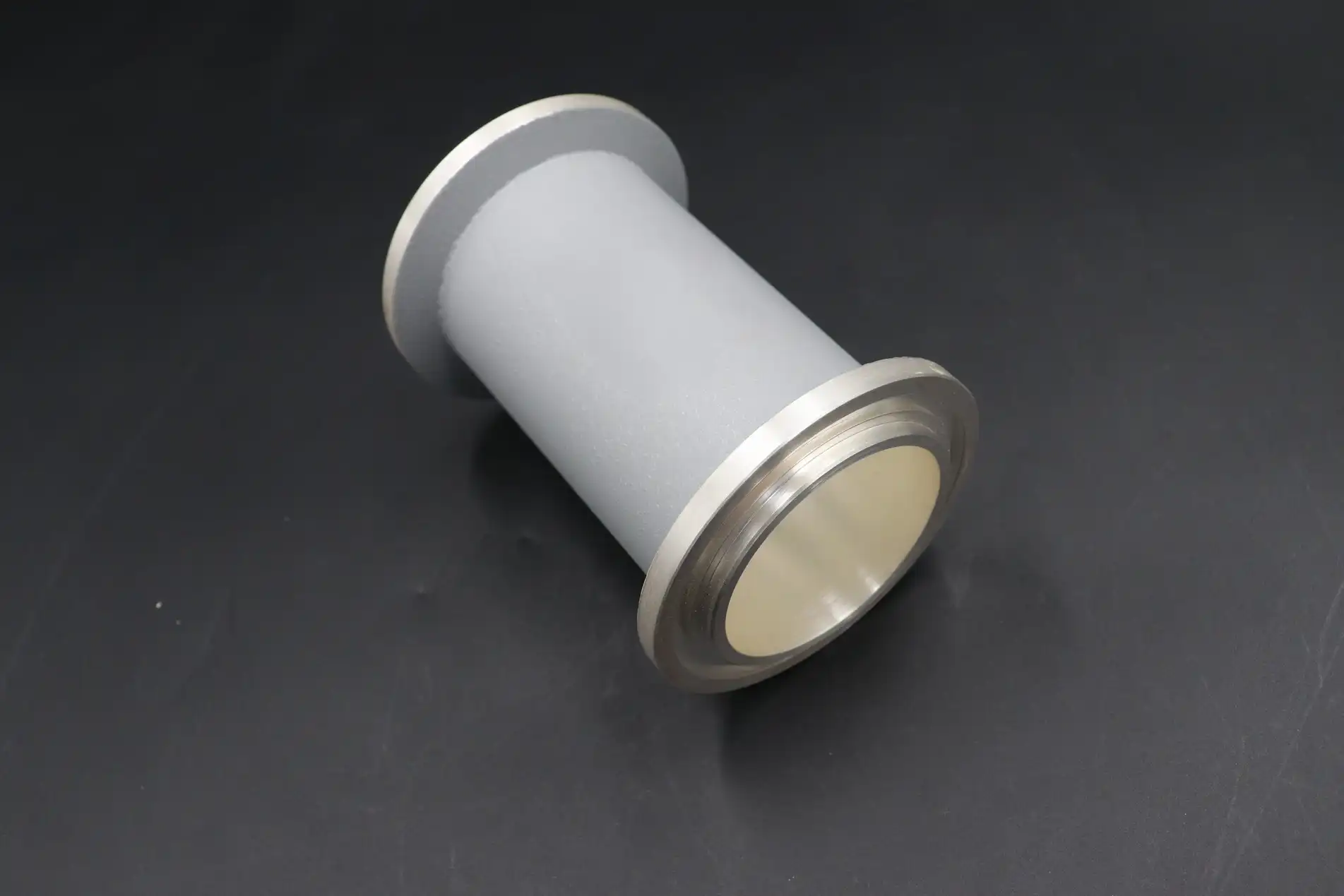

Circular Straight Waveguide

Advanced Microwave manufactures straight waveguides in various flange types with different circular inner diameters, covering waveguide sizes WR10 to WR2300.

Send Inquiry

Circular Straight Waveguide Introduction

A hollow, cylindrical metallic structure called a circular straight waveguide is made to effectively direct electromagnetic waves. Its circular cross-section facilitates high-frequency operations and guarantees little signal distortion. For applications needing strong signal integrity and minimal transmission loss, this makes it the perfect option.

Product Specifications

Specification	Detail
Frequency Range	1 GHz to 110 GHz
Material	Aluminum, Copper, or Brass
Standard Sizes	WR28C, WR42C, WR75C, WR90C
VSWR	≤1.20:1
Surface Finish	Conductive gold or silver plating
Flange Type	CPR, UBR, or custom-designed flanges
Compliance	ISO:9001:2008 certified, RoHS compliant

Circular Straight Waveguide Benefits

Improved Signal Integrity: Circular Straight Waveguide make sure that signals are transmitted steadily and without distortion.
Broad Frequency Range: Ideal for a range of uses, including defense and telecommunications.
Long-lasting and robust: Reliability in demanding settings is guaranteed by premium materials.
Customizable Options: Made to fit particular design and operational requirements.

Technical Specifications

The purpose of low attenuation is to reduce power loss over long distances.
High Power Handling: Ideal for uses requiring a lot of energy.
Precision Engineering: Manufactured to tight tolerances for superior performance.
Environmentally Friendly: In order to promote sustainable practices, it is completely RoHS compliant.

Many different industries depend on circular straight waveguide:
Telecommunications: Guarantees effective data transfer in base station and satellite networks.
Advanced weaponry, navigational aids, and radar systems all depend on aerospace and defense.
Scientific Research: Frequently used for high-frequency experiments in labs.
The smooth transmission of signals in radio and television networks is made possible by broadcasting.

OEM Services

We at Advanced Microwave Technologies Co., Ltd. provide adaptable OEM services to satisfy particular project needs. Our talented engineers are prepared to provide tailored solutions, regardless of whether you require changes in material, size, or frequency range. To guarantee on-time delivery, we also offer quick prototyping and effective production procedures.

FAQ

Q: Can the waveguide be manufactured to support unique frequency bands?
A: Yes, we offer customization to match your required frequency specifications.

Q: Are these waveguides suitable for extreme environments?
A: Absolutely! Our products are built with durable materials and finishes to perform in challenging conditions.

Q: What support do you provide for product installation?
A: We offer detailed installation guides and technical support to ensure seamless integration.

Contact Us

Get started with a reliable Circular Straight Waveguide today!
Contact our team at sales@admicrowave.com for expert assistance and tailored solutions.
