Inflatable Straight Waveguide

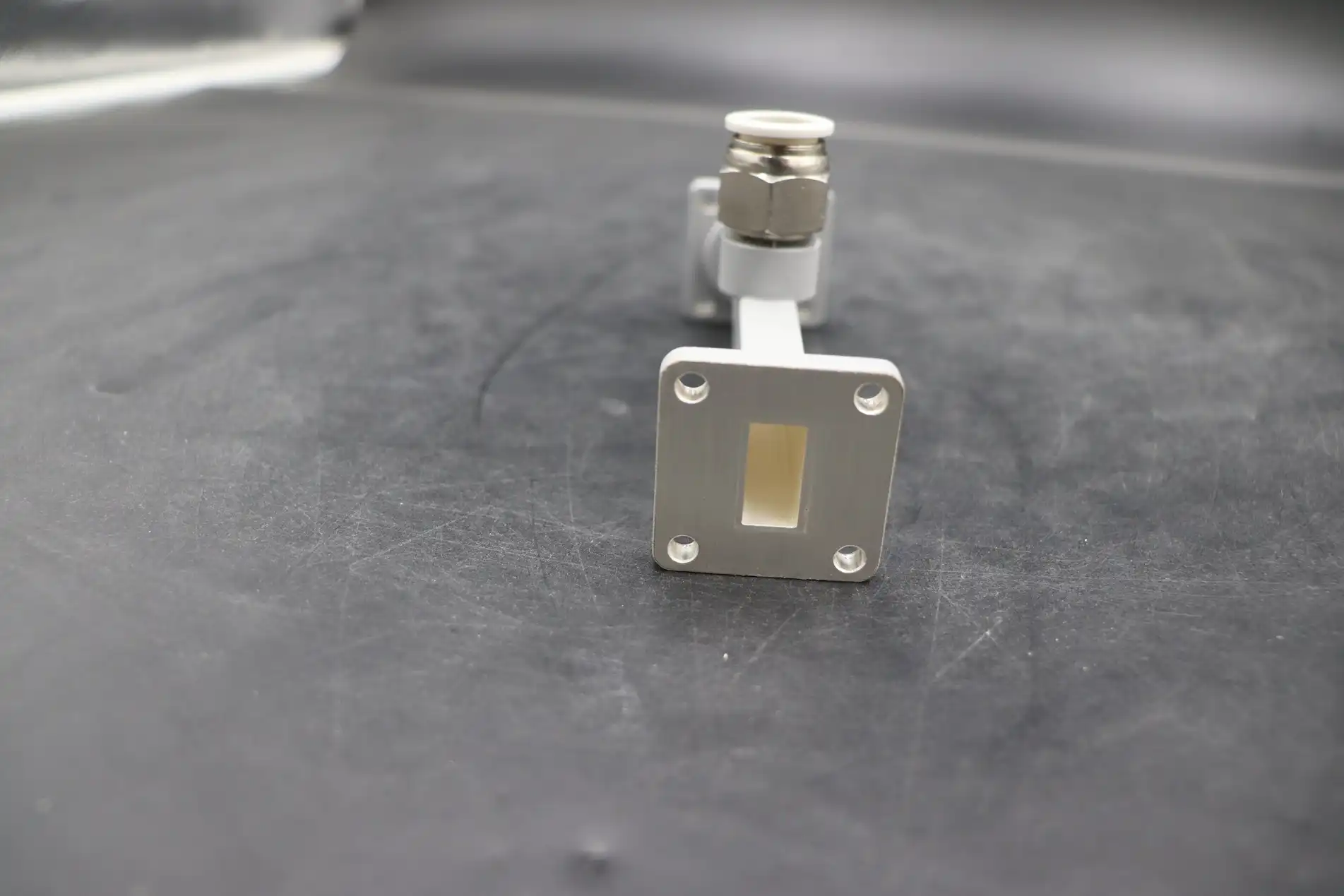

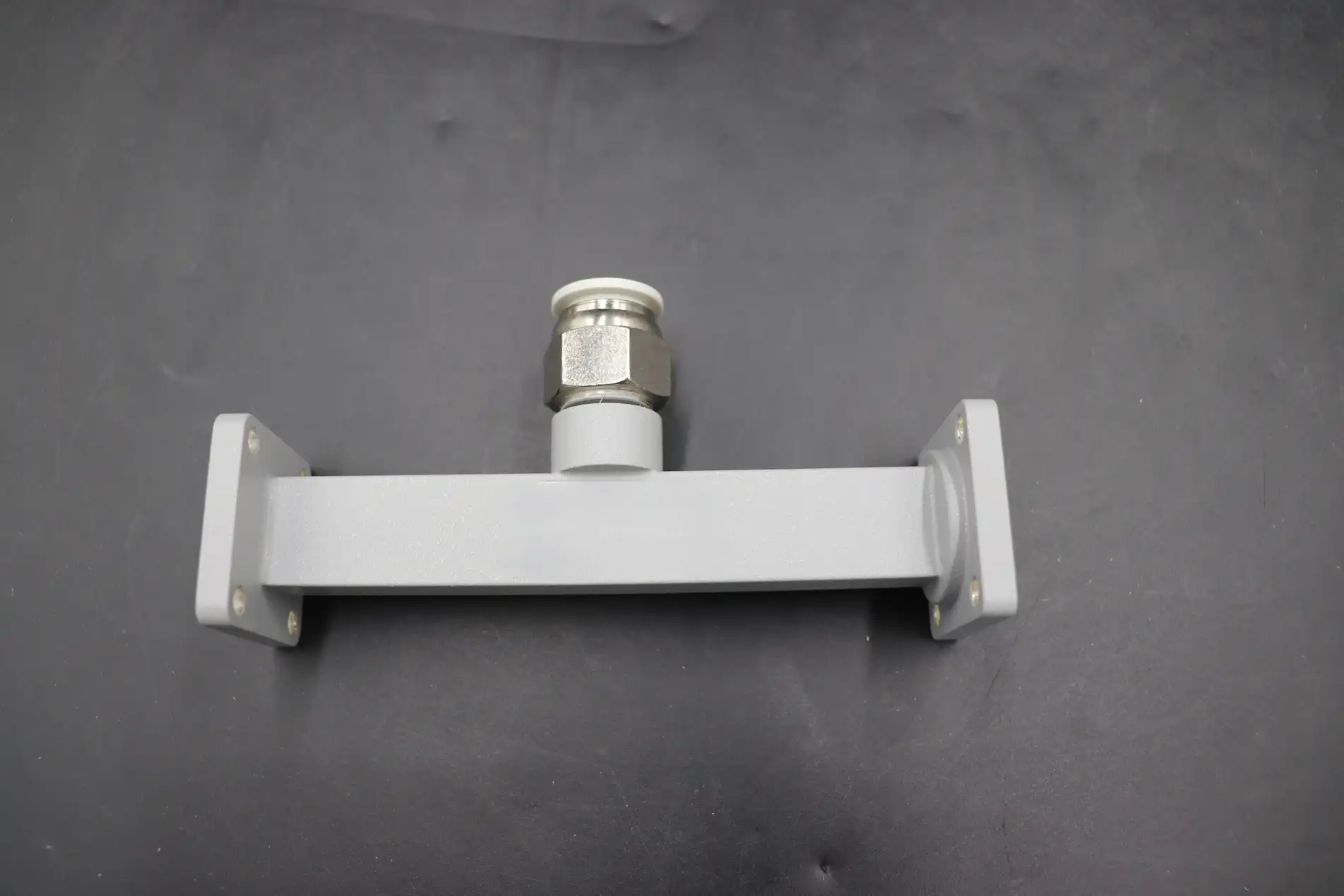

Inflatable Straight Waveguide Introduction
An inventive method for reliable, effective signal transmission in high-frequency applications is the Inflatable Straight Waveguide. This product provides unmatched performance in small, light, and flexible designs, making it perfect for satellite communications, radar systems, and cutting-edge microwave technologies. It is the preferred option for sectors requiring accuracy, dependability, and flexibility due to its customizable features.

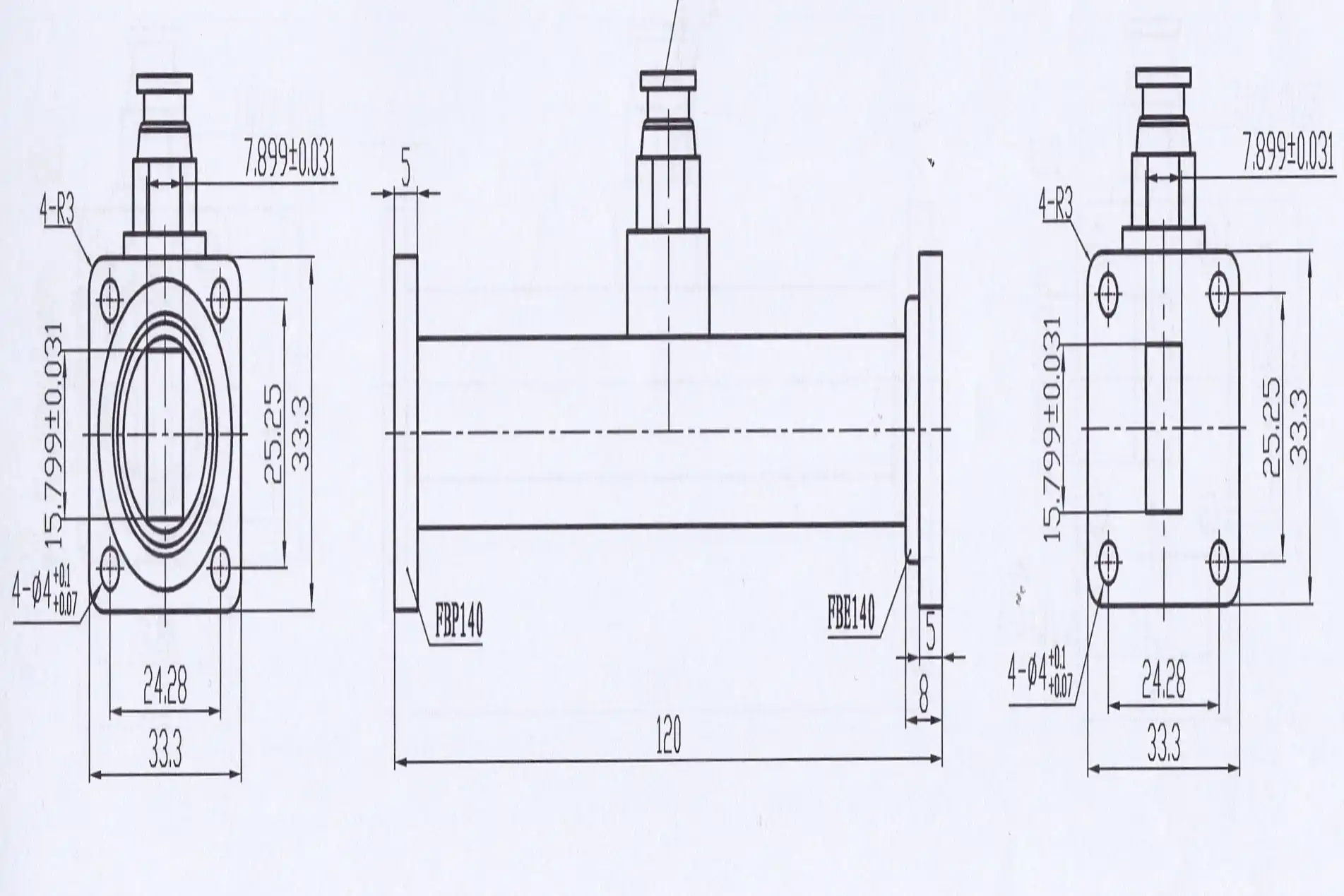

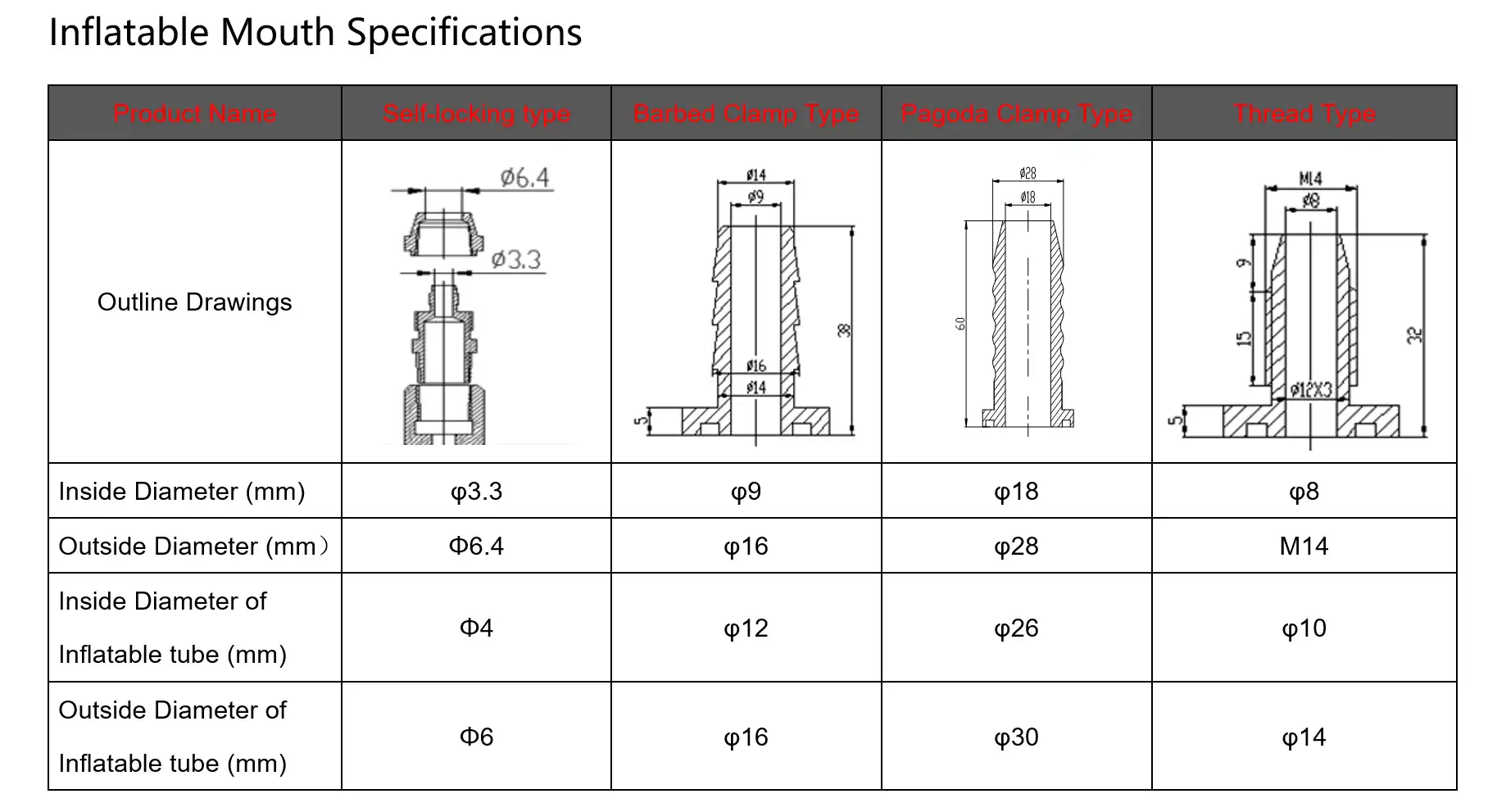

Specifications
Model No* | Freq Range (GHz) | VSWR | Standard Length (mm) | Pressure （MP） | Flange | Material | Finish |
ADM-3QWAL…PM | 0.32-0.49 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-4QWAL…PM | 0.35-0.53 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-5QWAL…PM | 0.41-0.62 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-6QWAL…PM | 0.49-0.75 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-8QWAL…PM | 0.64-0.98 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-9QWAL…PM | 0.75-1.15 | ≤1.05 | 200 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-12QWAL…PM | 0.96-1.46 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-14QWAL…PM | 1.13-1.73 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-18QWAL…PM | 1.45-2.20 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-22QWAL…PM | 1.72-2.61 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-26QWAL…PM | 2.17-3.30 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-32QWAL…PM | 2.60-3.95 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-40QWAL…PM | 3.22-4.90 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-48QWAL…PM | 3.94-5.99 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-58QWAL…PM | 4.64-7.05 | ≤1.05 | 100 | ≤0.1 | FDP/FDM | Al | Chromate conversion |
ADM-70QWAL…PM | 5.38-8.17 | ≤1.10 | 50 | ≤0.1 | FDP/FDM | Cu | Silver Plating |
ADM-84QWAL…PM | 6.57-9.99 | ≤1.10 | 50 | ≤0.1 | FBP/FBM | Cu | Silver Plating |
ADM-100QWAL…PM | 8.20-12.40 | ≤1.10 | 50 | ≤0.1 | FBP/FBM | Cu | Silver Plating |
ADM-120QWAL…PM | 9.84-15.0 | ≤1.10 | 50 | ≤0.1 | FBP/FBM | Cu | Silver Plating |
ADM-140QWAL…PM | 11.9-18.0 | ≤1.10 | 50 | ≤0.2 | FBP/FBM | Cu | Silver Plating |
ADM-180QWAL…PM | 14.5-22.0 | ≤1.10 | 50 | ≤0.2 | FBP/FBM | Cu | Silver Plating |
ADM-220QWAL…PM | 17.6-26.7 | ≤1.10 | 50 | ≤0.2 | FBP/FBM | Cu | Silver Plating |
ADM-260QWAL…PM | 21.7-33.0 | ≤1.10 | 50 | ≤0.2 | FBP/FBM | Cu | Silver Plating |
ADM-320QWAL…PM | 26.5-40.0 | ≤1.10 | 50 | ≤0.2 | FBP/FBM | Cu | Silver Plating |
Product Benefits
- Improved Performance: Even at high frequencies, excellent signal transmission with minimal loss is achieved.
- Lightweight Design: Facilitates installation and upkeep, especially for satellite and aerospace systems.
- Flexibility: Because inflatable structures can be adapted to different configurations, complicated installations are not as necessary.
- Durability: Constructed from premium materials, it can tolerate harsh conditions and changes in pressure.
Technical Features
- Wide Frequency Band: Meets sophisticated communication needs by supporting operations up to 110 GHz.
- An inventive method for small storage and deployment in tight areas is provided by the inflatable mechanism.
- Precision engineering guarantees constant signal quality and reduces transmission losses.
- Environmental Compliance: Materials with RoHS certification adhere to international environmental regulations.
Applications
For industries needing reliable and effective solutions, the Inflatable Straight Waveguide is crucial:
- Satellite communications: Provides dependable and steady signal transfer between satellites and ground stations.
- Defense Systems: Providing accuracy and versatility, these systems are perfect for radar, navigation, and weapon systems.
- Aerospace Engineering: Effective and lightweight communication systems for spacecraft and airplanes.
- Telecommunications: Provides support for 5G networks and other cutting-edge communication technologies.
OEM Services
Our OEM services offer customized answers for each particular need:
- Options for Customization: Modify the waveguide's size, composition, or frequency ranges to meet your unique requirements.
- Technical Support: Professional advice on product matching, installation, and troubleshooting.
- Quick Turnaround: Quick production and delivery to guarantee your business has as little downtime as possible.
FAQ
1. What are the advantages of an waveguide?
The inflatable design offers lightweight, space-saving advantages, easy deployment, and superior performance across various applications.
2. Is customization available?
Yes, we provide full customization for size, material, and frequency range to meet specific requirements.
3. What certifications does the Inflatable Straight Waveguide meet?
Our waveguides are ISO 9001:2008 certified and RoHS-compliant, ensuring quality and environmental safety.
4. Can you provide technical support?
Absolutely! We offer guidance on installation, product compatibility, and fault diagnosis.
