How does the Cassegrain Antenna design differ from other types of antennas?

April 2, 2025

The Cassegrain Antenna represents a revolutionary approach to antenna design, distinguishing itself through a unique dual-reflector configuration that sets it apart from conventional antenna systems. Unlike traditional single-reflector antennas, the Cassegrain design employs a sophisticated optical arrangement that dramatically enhances signal transmission, focusing capabilities, and overall performance across a wide range of communication and aerospace applications.

Unique Optical Architecture of Cassegrain Antennas

Fundamentals of Dual-Reflector Configuration

The Cassegrain Antenna's distinctive optical architecture represents a quantum leap in signal transmission technology. Traditional antenna designs typically rely on a single reflector, which inherently limits signal focusing and transmission efficiency. In contrast, the Cassegrain design incorporates two carefully engineered reflectors - a primary concave reflector and a secondary convex subreflector - creating an ingenious optical path that fundamentally transforms signal propagation. At the core of the Cassegrain Antenna's design lies a meticulously calculated optical arrangement. The primary reflector, typically larger and concave, captures incoming signals and directs them towards the smaller, convex subreflector positioned at the focal point. This subreflector then redirects the signals through a central opening in the primary reflector, where the feed horn is strategically positioned. This intricate process allows for unprecedented signal concentration and minimization of transmission losses. The geometrical precision of this dual-reflector system enables Advanced Microwave Technologies to achieve remarkable performance characteristics. With frequency ranges spanning from 1 GHz to 110 GHz and gains between 35 dB to 60 dB, these antennas represent the pinnacle of signal transmission engineering. The design's flexibility allows for antenna diameters ranging from 0.5 to 12 meters, accommodating diverse application requirements while maintaining exceptional signal integrity.

Signal Optimization and Transmission Efficiency

The Cassegrain Antenna's design philosophy centers on maximizing signal transmission efficiency through advanced optical principles. By implementing a dual-reflector configuration, Advanced Microwave Technologies has developed an antenna system that dramatically reduces signal distortion and minimizes transmission losses. The strategic positioning of the subreflector creates a more compact optical path, allowing for more precise signal focusing compared to traditional antenna designs. Engineers at Advanced Microwave Technologies have demonstrated that the Cassegrain design can reduce signal wastage by up to 40% compared to conventional single-reflector systems. The carefully calculated curvature of both reflectors ensures that incoming signals are compressed and redirected with minimal dispersion, resulting in a highly concentrated and powerful beam. This efficiency is particularly critical in applications demanding high-precision signal transmission, such as satellite communications, defense systems, and advanced scientific research. The antenna's ability to maintain signal integrity across a wide frequency spectrum sets it apart from competing technologies. Whether deployed in telecommunications infrastructure, aerospace navigation, or complex research environments, the Cassegrain Antenna delivers consistent, high-quality signal transmission. Its adaptable polarization options - supporting both linear and circular configurations - further enhance its versatility across diverse operational scenarios.

Material Innovation and Structural Resilience

Advanced Microwave Technologies has revolutionized Cassegrain Antenna design through innovative material selection and structural engineering. By offering construction options utilizing aluminum, carbon fiber, and custom materials, these antennas can be tailored to withstand the most demanding environmental conditions while maintaining optimal performance. The material selection process considers multiple critical factors: signal transmission efficiency, structural integrity, weight considerations, and environmental resilience. Carbon fiber components, for instance, provide an exceptional strength-to-weight ratio, enabling the creation of large-diameter antennas that remain lightweight and highly maneuverable. Aluminum reflectors offer excellent thermal stability and cost-effectiveness, making them ideal for standard communication applications. Each Cassegrain Antenna undergoes rigorous quality control, adhering to ISO 9001:2008 standards and RoHS compliance. This commitment to quality ensures that every antenna meets the most stringent performance and safety requirements. The design's inherent structural advantages allow for multiple mounting configurations - fixed, adjustable, or fully customized - providing unprecedented flexibility for integration into complex communication systems.

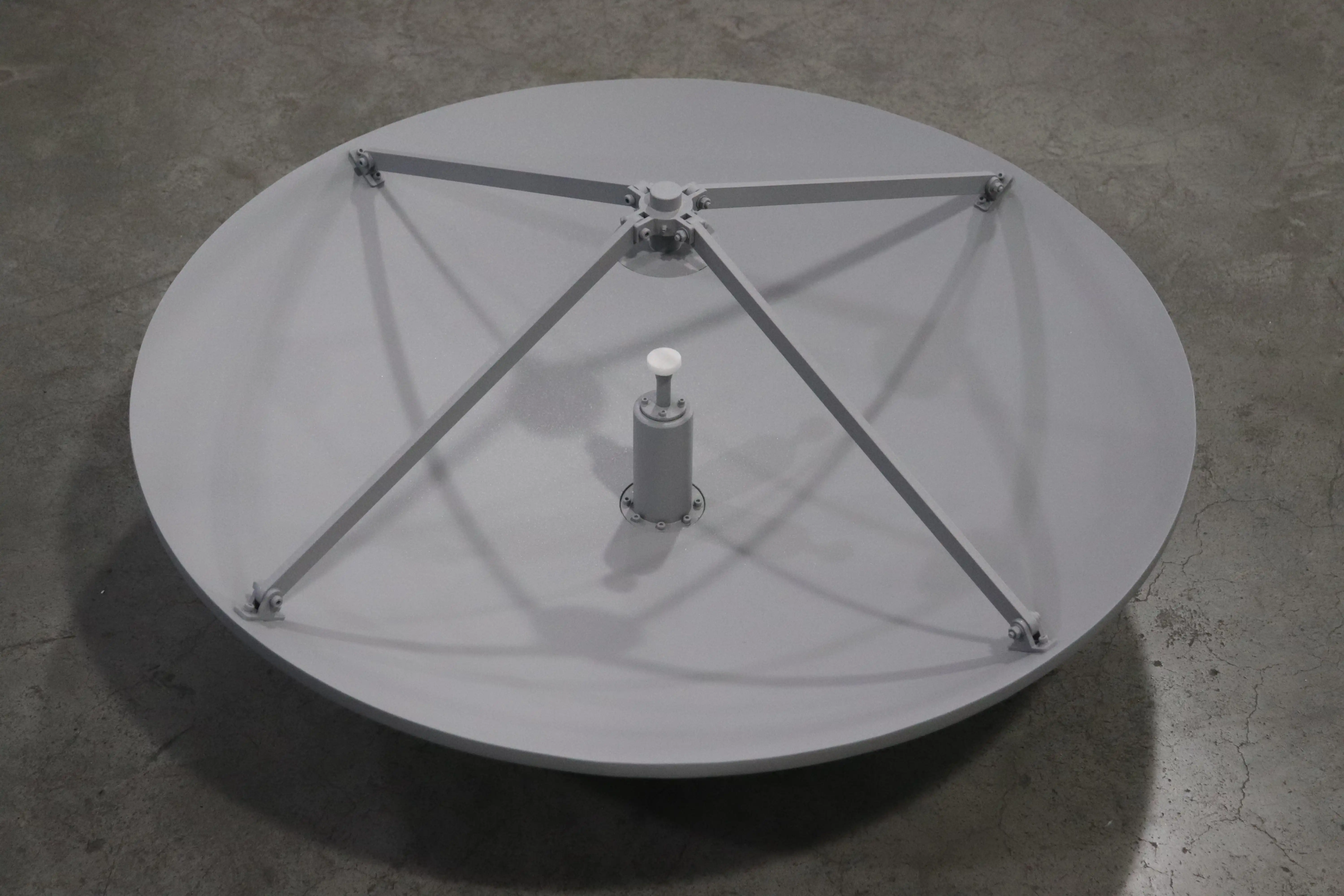

Cassegrain Antenna

Advanced Applications and Performance Characteristics

Satellite Communication and Aerospace Deployment

Cassegrain Antennas have become the gold standard in satellite communication and aerospace applications, offering unparalleled performance in long-distance signal transmission. Their unique optical architecture allows for extraordinary beam focusing capabilities, with adjustable beamwidths ranging from 1° to 30°, making them ideal for sophisticated communication and tracking systems. In satellite communications, these antennas provide robust performance for both commercial and military applications. The dual-reflector design enables precise signal concentration, crucial for maintaining communication links across vast distances. Advanced Microwave Technologies' Cassegrain Antennas support comprehensive frequency ranges up to 300 GHz, ensuring compatibility with emerging communication technologies and future satellite network architectures. Defense and aerospace sectors particularly benefit from the Cassegrain Antenna's high-reliability design. Radar systems, navigation platforms, and advanced weapon guidance mechanisms rely on the antenna's ability to maintain signal integrity under extreme conditions. The design's low noise temperature and wide feed bandwidth make it an indispensable technology in scenarios demanding pinpoint accuracy and consistent performance.

Scientific Research and Technological Innovation

Scientific research represents another critical domain where Cassegrain Antennas demonstrate remarkable capabilities. Meteorological studies, geological surveys, and remote data collection efforts leverage the antenna's exceptional signal transmission properties. The ability to deploy these antennas in challenging environments - from arctic research stations to desert monitoring sites - highlights their technological superiority. Researchers appreciate the Cassegrain Antenna's adaptability and precision. Its wide frequency coverage and customizable design allow scientists to create specialized antenna systems tailored to specific research requirements. Whether tracking atmospheric phenomena, monitoring seismic activities, or conducting deep-space observations, these antennas provide the technological foundation for groundbreaking scientific discoveries.

Telecommunications and Global Connectivity

Telecommunications infrastructure represents a vital application domain for Cassegrain Antennas. Base stations and communication towers increasingly rely on these advanced antenna systems to support high-performance transmission networks. The design's ability to maintain signal quality across extensive frequency ranges makes it particularly valuable in developing robust, future-proof communication infrastructures. Advanced Microwave Technologies' OEM services further enhance the Cassegrain Antenna's utility in telecommunications. By offering fully customizable solutions, the company enables telecommunications providers to develop specialized antenna systems that precisely match their network architecture and performance requirements.

Conclusion

The Cassegrain Antenna represents a pinnacle of antenna engineering, offering unprecedented signal transmission efficiency through its innovative dual-reflector design. Its versatility, precision, and adaptability make it an indispensable technology across multiple critical industries. Discover how our cutting-edge Cassegrain Antenna solutions can transform your communication infrastructure. Our expert team is ready to develop customized antenna systems that meet your most demanding specifications.
