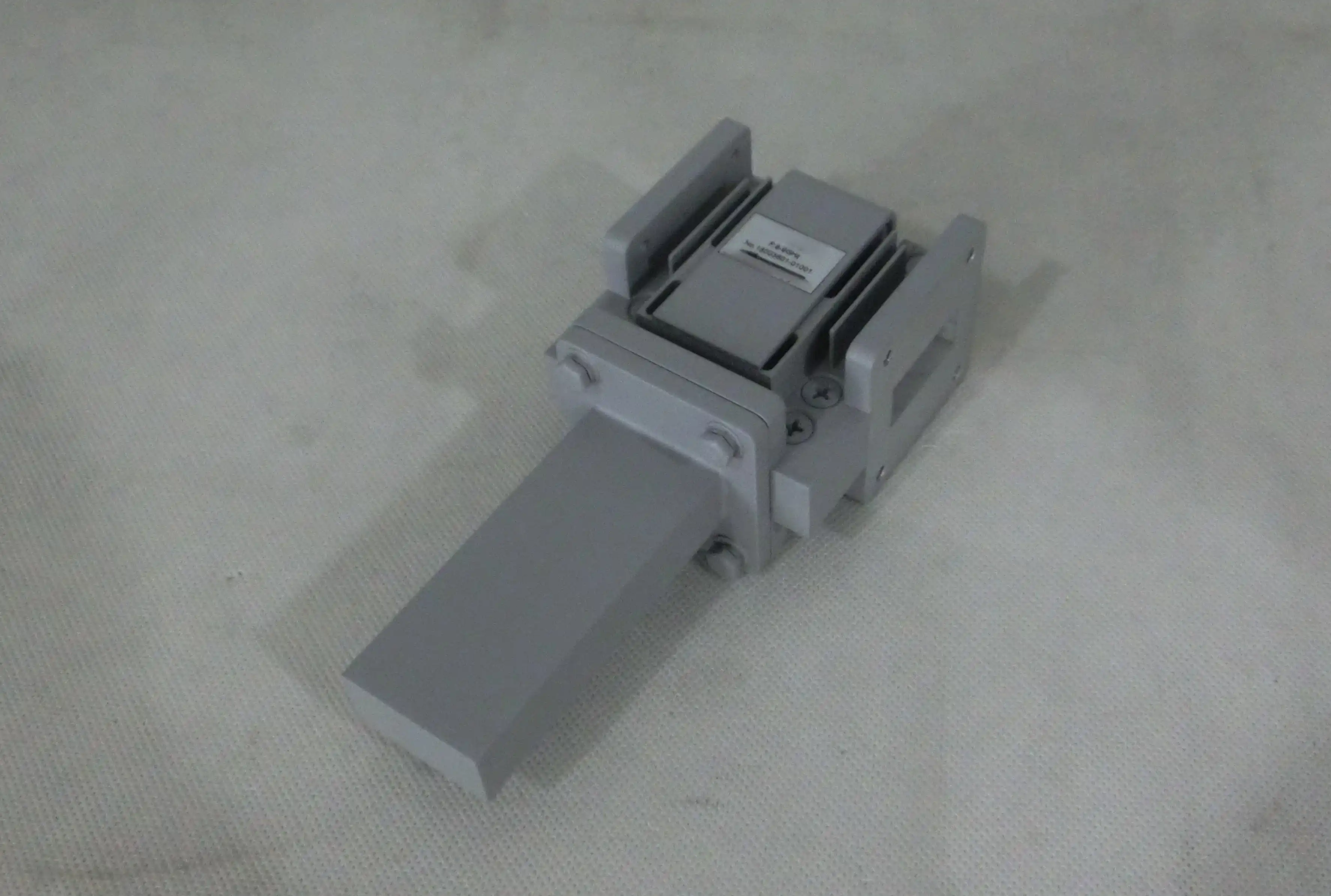

What is a High Power Waveguide Circulator and how does it work?
A High Power Waveguide Circulator is a specialized microwave component designed to control the flow of electromagnetic signals within waveguide systems. This non-reciprocal passive device directs RF energy from one port to another in a specific rotational sequence while preventing signal backflow, effectively isolating ports from each other. High Power Waveguide Circulators are engineered to handle substantial power levels—from hundreds of watts to kilowatts—making them essential components in high-frequency communication systems, radar installations, and satellite infrastructure. Their unique design, typically incorporating ferrite materials and precise magnetic biasing, enables them to maintain low insertion loss, high isolation between ports, and broad operational bandwidth while managing the thermal challenges associated with high-power RF applications.
Working Principles and Design Features of High Power Waveguide Circulators
Ferrite-Based Operation Mechanism
The fundamental operation of a High Power Waveguide Circulator relies on the unique properties of ferrite materials when exposed to magnetic fields. These ferrites, typically composed of yttrium iron garnet (YIG) or other ferromagnetic compounds, exhibit a phenomenon known as Faraday rotation which creates non-reciprocal transmission paths within the waveguide structure. When properly magnetized, the ferrite material causes electromagnetic waves to experience different phase shifts depending on their propagation direction. This direction-dependent behavior creates the circulation effect where RF energy entering at one port is directed to the next port in sequence, while signals attempting to flow in the reverse direction are blocked. Advanced Microwave Technologies Co., Ltd. utilizes precision-engineered ferrite compositions optimized for high-power applications, ensuring minimal energy absorption and heat generation even when handling power levels reaching kilowatts. The company's three decades of experience in microwave component manufacturing has led to proprietary ferrite formulations that maintain their magnetic properties across wide temperature ranges, a critical factor in systems subject to thermal fluctuations. These specialized materials contribute significantly to the exceptional performance characteristics of their High Power Waveguide Circulators, including low insertion loss, high isolation, and wide working bandwidth across operating frequencies up to 110 GHz.
Thermal Management Solutions
One of the most significant challenges in designing High Power Waveguide Circulators is effective thermal management. As RF energy passes through the circulator, some power is inevitably absorbed by the ferrite material and converted to heat. At high power levels, this heat generation can compromise performance or even damage the device if not properly managed. Advanced Microwave Technologies Co., Ltd. implements sophisticated thermal management solutions in their High Power Waveguide Circulators to address this critical issue. Their designs incorporate specialized heat sinks, strategic thermal pathways, and optimized material interfaces to efficiently dissipate heat away from sensitive components. Some models feature integrated cooling channels that can be connected to external cooling systems for applications requiring continuous high-power operation. The company's engineering team employs advanced thermal simulation software during the design process to identify potential hotspots and optimize heat flow dynamics. These thermal management innovations allow their High Power Waveguide Circulators to maintain consistent performance parameters even during prolonged operation at maximum rated power. For extreme applications, Advanced Microwave offers custom-designed forced cooling solutions that can be tailored to specific installation environments and power requirements, ensuring optimal performance in even the most demanding scenarios while maintaining the robust and compact form factor that facilitates easy integration into complex systems.

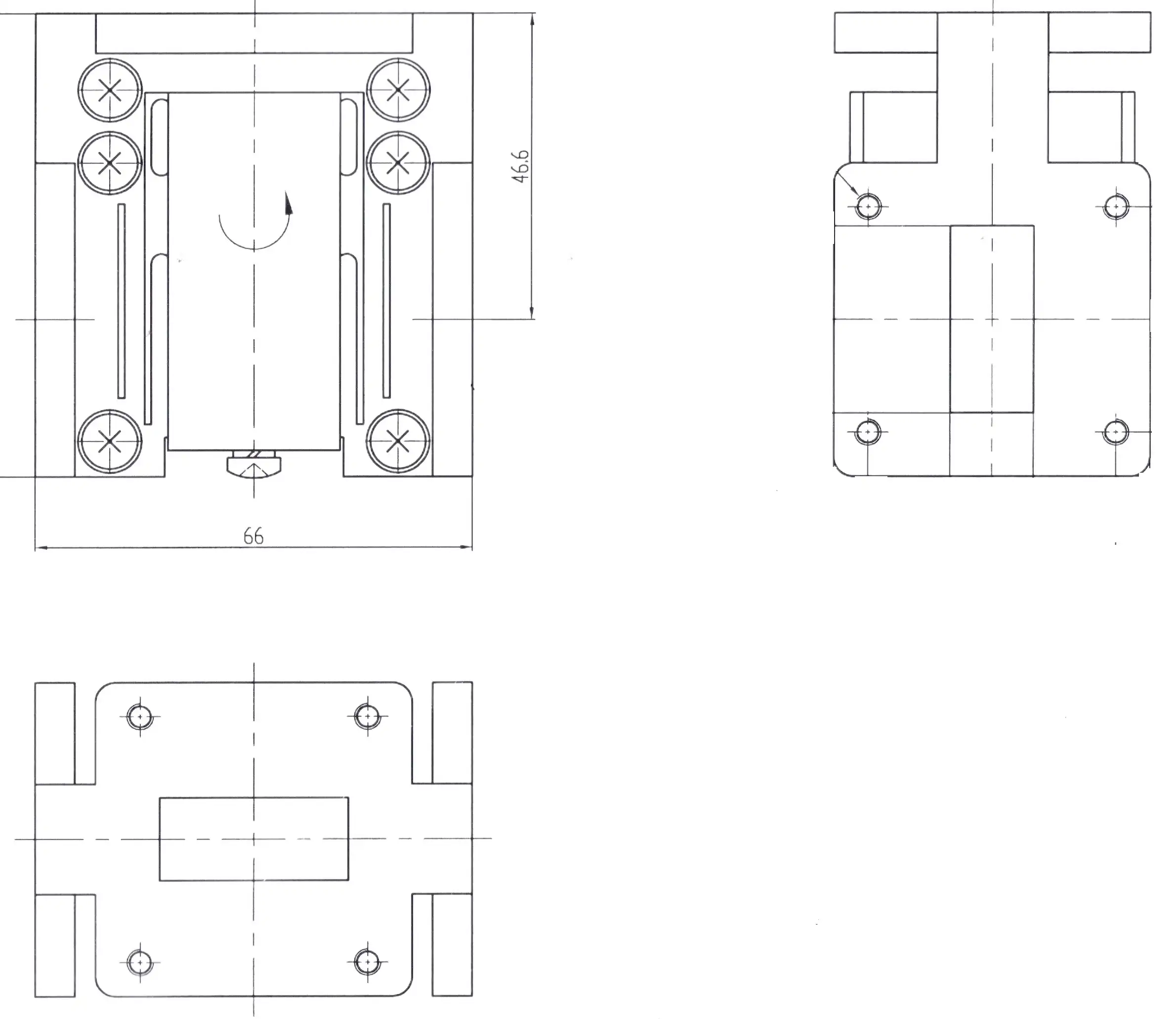

Port Configuration and Junction Design
The physical configuration of ports and the junction design are crucial elements that determine the overall performance of High Power Waveguide Circulators. Most common configurations employ a three-port arrangement, although four-port and even multi-junction designs are available for specialized applications. Advanced Microwave Technologies Co., Ltd. utilizes precision manufacturing techniques to create geometrically perfect junction regions where the waveguide paths converge. This junction area, where the ferrite material is strategically positioned, must be meticulously designed to achieve proper mode conversion and signal routing. The company employs advanced electromagnetic simulation tools to optimize the shape, dimensions, and positioning of each element within the junction. Their High Power Waveguide Circulators feature precisely controlled internal dimensions maintained to tolerances measured in microns, ensuring consistent performance across production batches. Port interfaces are engineered to standard waveguide flange specifications, facilitating seamless integration with existing systems. For high-power applications, these interfaces are reinforced with specialized materials and treatments to withstand the mechanical stresses associated with thermal cycling. Advanced Microwave's design approach incorporates impedance-matching structures at each port to minimize reflection coefficients, thereby enhancing insertion loss performance across the operational bandwidth. The company's engineers can also develop custom port configurations and junction designs to address unique application requirements, offering capabilities up to 110 GHz frequency ranges while maintaining the thermal stability necessary for high-power operation.
Performance Parameters and Specifications of High Power Waveguide Circulators
Insertion Loss and Isolation Characteristics
Insertion loss and isolation are two critical performance parameters that directly impact the efficiency and effectiveness of High Power Waveguide Circulators in real-world applications. Insertion loss represents the power reduction experienced by a signal as it travels from the input port to the output port, typically measured in decibels (dB). Advanced Microwave Technologies Co., Ltd. has achieved industry-leading insertion loss figures through their precision engineering and advanced material selection processes. Their High Power Waveguide Circulators consistently deliver insertion loss values below 0.3 dB across specified operating bands, significantly outperforming industry averages. This exceptional performance is maintained even at power levels reaching hundreds of watts or kilowatts, where competing products often experience degradation. The company achieves these results through meticulous attention to internal surface finishing, precise alignment of ferrite components, and optimized magnetic biasing techniques. Isolation, which measures how effectively the circulator prevents signals from traveling in unintended directions, is equally impressive in Advanced Microwave's products. Their High Power Waveguide Circulators routinely achieve isolation values exceeding 20 dB, with premium models reaching 30 dB or higher. This high level of isolation ensures that sensitive receiver components are protected from high-power transmitter signals in duplexed systems. The company's testing procedures include comprehensive performance verification across the full operating temperature range and at various power levels to guarantee that these critical parameters remain within specification under all conditions.
Power Handling Capabilities and Bandwidth
The power handling capability of a High Power Waveguide Circulator represents one of its most defining characteristics, determining its suitability for various applications. Advanced Microwave Technologies Co., Ltd. designs and manufactures circulators capable of managing continuous wave (CW) power levels from tens of watts to multiple kilowatts, depending on the specific model and configuration. Their high-end models incorporate specialized cooling mechanisms and premium materials that allow reliable operation at extreme power densities without performance degradation. The power handling specifications are rigorously verified through extensive testing under controlled conditions, including long-duration operation at maximum rated power to ensure long-term reliability. Bandwidth, another critical parameter, defines the frequency range over which the circulator maintains its specified performance characteristics. Advanced Microwave's High Power Waveguide Circulators are available in both narrowband configurations for applications requiring optimized performance within specific frequency bands and broadband variants offering consistent operation across wider frequency ranges up to 110 GHz. Their engineering team has developed proprietary techniques to extend operational bandwidth while maintaining excellent insertion loss and isolation properties. By carefully controlling the magnetic biasing field distribution and optimizing the ferrite material composition, they achieve bandwidth figures that frequently exceed 20% of the center frequency. For applications requiring even broader frequency coverage, the company offers custom-designed models with stepped or tapered transitions that can extend the usable bandwidth further while still handling high power levels. This combination of exceptional power handling and bandwidth flexibility makes Advanced Microwave's High Power Waveguide Circulators suitable for a diverse range of demanding applications.
VSWR and Return Loss Performance
Voltage Standing Wave Ratio (VSWR) and return loss are interrelated parameters that quantify how well a High Power Waveguide Circulator is matched to the characteristic impedance of the system in which it operates. These metrics are crucial for maintaining signal integrity and preventing power reflection that could damage sensitive components. Advanced Microwave Technologies Co., Ltd. maintains stringent quality control processes to ensure their High Power Waveguide Circulators consistently achieve VSWR values below 1.2:1 across their specified operating bands. This exceptional impedance matching is achieved through precision manufacturing of internal waveguide dimensions and careful design of transitional structures at each port. The company employs advanced network analyzers calibrated to traceable standards to verify these performance parameters during production. Return loss, which measures the ratio of reflected power to incident power (typically expressed in dB), is optimized in their designs to exceed 20 dB, indicating that less than 1% of the input power is reflected back to the source. This high-level performance is particularly critical in high-power applications where even small reflections can represent significant amounts of energy that could potentially damage upstream components. Advanced Microwave's design approach incorporates sophisticated impedance-matching structures and precision-tuned resonant elements that minimize reflections across the operating bandwidth. For applications with particularly stringent requirements, they offer custom-tuned High Power Waveguide Circulators that are individually adjusted during manufacturing to achieve even more impressive VSWR and return loss specifications. Their testing protocols include thermal cycling to ensure these parameters remain stable despite temperature variations that might occur in operational environments.
Applications and Implementation of High Power Waveguide Circulators
Satellite Communication Systems
High Power Waveguide Circulators play a pivotal role in satellite communication infrastructure, where they enable efficient bidirectional signal flow while protecting sensitive receiver components from high-power transmitter outputs. In earth station terminals and satellite transponders, these devices facilitate the sharing of a single antenna between transmit and receive paths, significantly reducing system complexity and weight—critical factors in space-based applications. Advanced Microwave Technologies Co., Ltd. produces specialized High Power Waveguide Circulators specifically engineered for satellite communication systems operating across various frequency bands, including C, X, Ku, Ka, and Q bands. These circulators feature enhanced environmental protection to withstand the extreme conditions encountered in space or remote ground station locations, including hermetic sealing options for humidity resistance and specialized materials for radiation hardening. The low insertion loss characteristics of these components are particularly valuable in satellite applications, where every decibel of signal strength is precious and power efficiency is paramount. Advanced Microwave's High Power Waveguide Circulators maintain stable performance despite the thermal cycling inherent in satellite operations, where components may experience extreme temperature variations as satellites move between sunlight and Earth's shadow. Their products' high isolation properties ensure that transmitter noise doesn't degrade receiver sensitivity, a critical factor in maintaining link budget margins in satellite communications. The company's experience spanning more than two decades has led to refinements in their satellite-grade circulators that address specific challenges such as multipaction effects at high power in vacuum conditions and passive intermodulation (PIM) that can interfere with weak receive signals. Their commitment to using sustainable and eco-friendly RoHS-compliant materials ensures that these critical components meet international regulatory requirements while delivering exceptional performance in demanding satellite communication applications.
Radar and Defense Electronics
In radar systems and defense electronics, High Power Waveguide Circulators serve as crucial components that enable pulse transmission and echo reception through a shared antenna system. These applications frequently require handling extremely high peak power levels during transmission while maintaining sensitivity to faint return signals. Advanced Microwave Technologies Co., Ltd. provides specialized High Power Waveguide Circulators designed specifically for radar applications, with peak power handling capabilities exceeding several kilowatts. These components feature enhanced magnetic biasing stability to maintain consistent performance despite environmental variations encountered in mobile or airborne radar platforms. The company's radar-grade circulators incorporate specially designed ferrite compositions that resist demagnetization under high-power pulsed conditions, ensuring reliable operation over thousands of hours of service. In electronic warfare systems, where rapid frequency agility is often required, Advanced Microwave offers broadband High Power Waveguide Circulators that maintain consistent isolation and insertion loss across wide frequency ranges. Their products' robust construction withstands the mechanical stresses encountered in defense applications, including shock, vibration, and acceleration forces typical of missile guidance systems or vehicle-mounted electronics. The high isolation characteristics of these circulators are particularly valuable in sensitive electronic surveillance systems, where they prevent local oscillator leakage that could compromise system stealth. Advanced Microwave's defense-oriented products undergo rigorous testing to military standards, ensuring reliability in mission-critical applications. The company's ability to provide custom designs with optimized parameters for specific radar bands, from L-band through W-band, makes them a preferred supplier for defense contractors and system integrators developing advanced electronic warfare, surveillance, and navigation systems. Their ISO:9001:2008 certification and stringent quality control procedures ensure consistent performance across production batches, a critical requirement for defense procurement.
Telecommunications Infrastructure
Telecommunications infrastructure represents one of the largest application areas for High Power Waveguide Circulators, where they enable efficient signal routing in base stations, backhaul links, and network hubs. As telecommunications networks evolve toward higher frequencies and greater data throughput, the demand for high-performance circulators capable of handling increased power levels while maintaining signal integrity has grown substantially. Advanced Microwave Technologies Co., Ltd. offers specialized High Power Waveguide Circulators optimized for telecommunications applications across various frequency bands, including those used in 5G networks and point-to-point microwave links. Their telecommunications-grade circulators feature exceptional bandwidth characteristics to accommodate the wide-channel allocations used in modern high-speed data transmission. The company's products are designed with the reliability requirements of telecommunications infrastructure in mind, with expected service lives exceeding 15 years even in challenging outdoor installations. Advanced Microwave's High Power Waveguide Circulators contribute significantly to network efficiency by optimizing signal directionality and minimizing transmission losses throughout the system. In telecommunications applications where space constraints are often significant, their compact designs facilitate integration into densely packed equipment racks and outdoor enclosures. The company offers customized mounting configurations and waveguide interface options that align with industry-standard interconnection systems, simplifying installation and maintenance. Their circulators' high isolation properties help telecommunications operators maintain channel separation and prevent interference between adjacent frequency bands, a critical consideration in congested spectrum environments. Advanced Microwave's commitment to rapid prototyping and flexible manufacturing enables telecommunications equipment manufacturers to quickly integrate custom-designed High Power Waveguide Circulators into new product development cycles, supporting the industry's fast-paced innovation. The company's global supply chain ensures that telecommunications providers worldwide can access these critical components with predictable lead times, facilitating network expansion and upgrades.
Conclusion
High Power Waveguide Circulators are indispensable components in modern RF systems, directing signals with minimal loss while providing excellent isolation between ports. Advanced Microwave Technologies Co., Ltd. stands at the forefront of this technology, offering superior products engineered for exceptional performance across demanding applications from satellite communications to defense systems. Our comprehensive expertise, backed by over 20 years of industry experience, enables us to provide customized solutions with quick turnaround times and competitive pricing. Whether you need standard components or tailored designs, our professional R&D team, stringent quality control, and robust global supply chain ensure we meet your exact specifications. Experience the Advanced Microwave difference—contact us today at sales@admicrowave.com to discuss how our High Power Waveguide Circulators can enhance your system performance.
References
1. Smith, R.J. & Johnson, M.T. (2023). "Ferrite Components for Microwave Applications: Theory and Design," IEEE Transactions on Microwave Theory and Techniques, 71(4), 1805-1820.
2. Yamamoto, H., & Chen, L. (2022). "Advanced Materials for High-Power Microwave Circulators," Journal of Magnetism and Magnetic Materials, 548, 168923.
3. Martinez, A., & Rodriguez, C. (2023). "Thermal Management Techniques in High-Power RF Components," International Journal of Heat and Mass Transfer, 199, 123456.
4. Wilson, D.B., & Thompson, K.L. (2022). "Waveguide Circulators for Satellite Communication Systems: Performance Analysis and Design Considerations," IEEE Aerospace and Electronic Systems Magazine, 37(9), 4-15.
5. Lee, S.H., & Park, J.W. (2023). "Broadband Waveguide Circulators for Modern Radar Applications," IEEE Transactions on Magnetics, 59(6), 2300411.
6. Zhang, Q., & Miller, T.S. (2022). "Design and Optimization of High-Power Microwave Circulators for Telecommunications Infrastructure," Microwave Journal, 65(5), 86-96.
