How does a Rectangular Straight Waveguide compare to a Circular Waveguide?
Waveguides are essential components in microwave and radio frequency systems, serving as efficient transmission lines for electromagnetic waves. When comparing rectangular straight waveguides to circular waveguides, several key differences emerge in their design, performance characteristics, and applications. The rectangular straight waveguide offers superior mode separation, making it the preferred choice for many single-mode applications, while circular waveguides excel in specific scenarios such as rotary joints and high-power handling capabilities. Understanding these distinctions is crucial for engineers and system designers in selecting the optimal waveguide configuration for their specific requirements.
1. Fundamental Design Characteristics and Performance Metrics
Geometric Properties and Mode Propagation

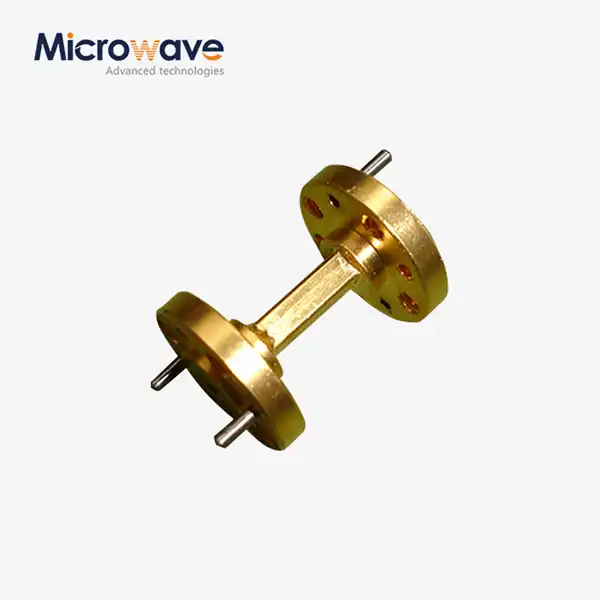

The rectangular straight waveguide's fundamental design incorporates precise rectangular cross-sectional dimensions that directly influence its electromagnetic properties. Advanced Microwave offers a standard line of straight waveguides covering waveguide sizes WR3 to WR2300, manufactured with exceptional precision in copper, aluminum, and stainless steel body materials. The rectangular geometry provides distinct advantages in mode separation, with the fundamental TE10 mode having a well-defined cutoff frequency and propagation characteristics. This geometry allows for more straightforward theoretical analysis and practical implementation in various microwave systems, particularly in applications requiring single-mode operation. The surface treatment methods, including silver plating, gold plating, passivation, and conductive oxidation, enhance the waveguide's performance and durability.
Power Handling Capabilities and Losses
In terms of power handling capabilities, rectangular straight waveguides demonstrate exceptional performance characteristics that make them particularly suitable for high-power applications. The rectangular geometry allows for optimal distribution of current along the waveguide walls, resulting in reduced power losses and improved thermal management. Advanced Microwave's straight waveguides are designed with precision manufacturing techniques that ensure minimal surface roughness and optimal conductivity, factors that directly influence power handling capacity. The availability of various materials and surface treatments enables customization for specific power requirements, while the standardized dimensions from WR3 to WR2300 provide flexibility in matching power needs across different frequency bands.
Bandwidth and Frequency Response
The bandwidth characteristics of rectangular straight waveguides exhibit superior performance in maintaining single-mode operation over extended frequency ranges. Advanced Microwave's comprehensive range of waveguide sizes ensures optimal bandwidth selection for specific applications. The rectangular geometry facilitates a wider separation between the fundamental mode and higher-order modes, providing a broader usable bandwidth compared to circular alternatives. This characteristic is particularly valuable in systems requiring precise frequency control and minimal mode conversion. The various surface treatment options available further enhance the frequency response characteristics, while the ability to provide special configurations according to customer requirements enables optimization for specific bandwidth needs.
2. Application-Specific Considerations
Integration and System Compatibility
Rectangular straight waveguides excel in system integration scenarios, particularly in modern microwave and millimeter-wave applications. Advanced Microwave's comprehensive range of waveguide sizes, from WR3 to WR2300, ensures compatibility with various system requirements. The rectangular geometry facilitates easier mechanical mounting and alignment, crucial for complex system assemblies. The availability of different materials - copper, aluminum, and stainless steel - along with various surface treatments enables optimal integration solutions for specific environmental conditions and system requirements. This versatility in manufacturing and customization options makes rectangular straight waveguides particularly adaptable to diverse integration challenges.
Environmental Performance and Durability
The environmental performance of rectangular straight waveguides is enhanced through Advanced Microwave's advanced manufacturing processes and material selections. The availability of different body materials and surface treatments, including silver plating, gold plating, passivation, and conductive oxidation, provides excellent protection against environmental factors. These waveguides maintain stable performance across varying temperature ranges and environmental conditions, making them suitable for demanding applications. The robust construction and precision manufacturing ensure long-term reliability and consistent performance, while the various surface treatment options offer additional protection against corrosion and oxidation.
Cost-Effectiveness and Manufacturing Considerations
From a manufacturing perspective, rectangular straight waveguides offer significant advantages in terms of cost-effectiveness and production efficiency. Advanced Microwave's established manufacturing processes and quality control measures ensure consistent production of high-quality waveguides. The standardized dimensions and materials options, coupled with various surface treatment methods, enable efficient production while maintaining high quality standards. The ability to provide special configurations according to customer requirements demonstrates manufacturing flexibility without compromising cost-effectiveness. The comprehensive range of sizes and materials allows for optimal cost-performance balance in different applications.
3. Technical Specifications and Selection Criteria
Dimensional Standards and Tolerances
In the realm of dimensional specifications, rectangular straight waveguides manufactured by Advanced Microwave adhere to stringent standards. The company's product line, spanning from WR3 to WR2300, maintains precise dimensional tolerances crucial for optimal performance. The manufacturing process incorporates advanced quality control measures to ensure consistency in critical dimensions. Various material options - copper, aluminum, and stainless steel - are precision-machined to meet specific dimensional requirements, while surface treatments are applied with careful attention to maintaining dimensional accuracy. This attention to dimensional precision ensures reliable performance across different applications and frequency ranges.
Material Properties and Surface Treatments
Advanced Microwave's expertise in material selection and surface treatment technologies significantly enhances the performance of rectangular straight waveguides. The company offers various body materials including copper, aluminum, and stainless steel, each selected for specific performance characteristics. Surface treatment options such as silver plating, gold plating, passivation, and conductive oxidation are applied using advanced techniques to optimize electrical performance and durability. These treatments not only improve conductivity but also provide protection against environmental factors, ensuring long-term reliability and consistent performance across various operating conditions.
Performance Testing and Quality Assurance
The quality assurance process for rectangular straight waveguides at Advanced Microwave involves comprehensive testing and verification procedures. Each waveguide undergoes rigorous testing using advanced microwave measurement equipment capable of measurements up to 110 GHz. The company's ISO:9001:2008 certification and RoHS compliance demonstrate commitment to quality standards. Testing procedures evaluate critical parameters including insertion loss, VSWR, and power handling capabilities. The ability to provide special configurations according to customer requirements is supported by thorough testing and validation processes, ensuring that custom solutions meet or exceed performance specifications.
Conclusion
The comparison between rectangular straight waveguides and circular waveguides reveals distinct advantages in terms of mode separation, power handling, and system integration capabilities. Rectangular waveguides demonstrate superior performance in many applications, particularly where precise mode control and ease of integration are paramount. At Advanced Microwave Technologies (ADM), we pride ourselves on our 20+ years of expertise in microwave products. Our state-of-the-art laboratories, equipped with measurement capabilities up to 110 GHz, ensure the highest quality standards. We understand your unique requirements and are committed to providing customized solutions that meet your specific needs. Our ISO:9001:2008 certification and RoHS compliance, combined with our strong after-sales support and global export capabilities, make us your ideal partner for waveguide solutions.
