What are the advantages of circular straight waveguides over other types of waveguides?

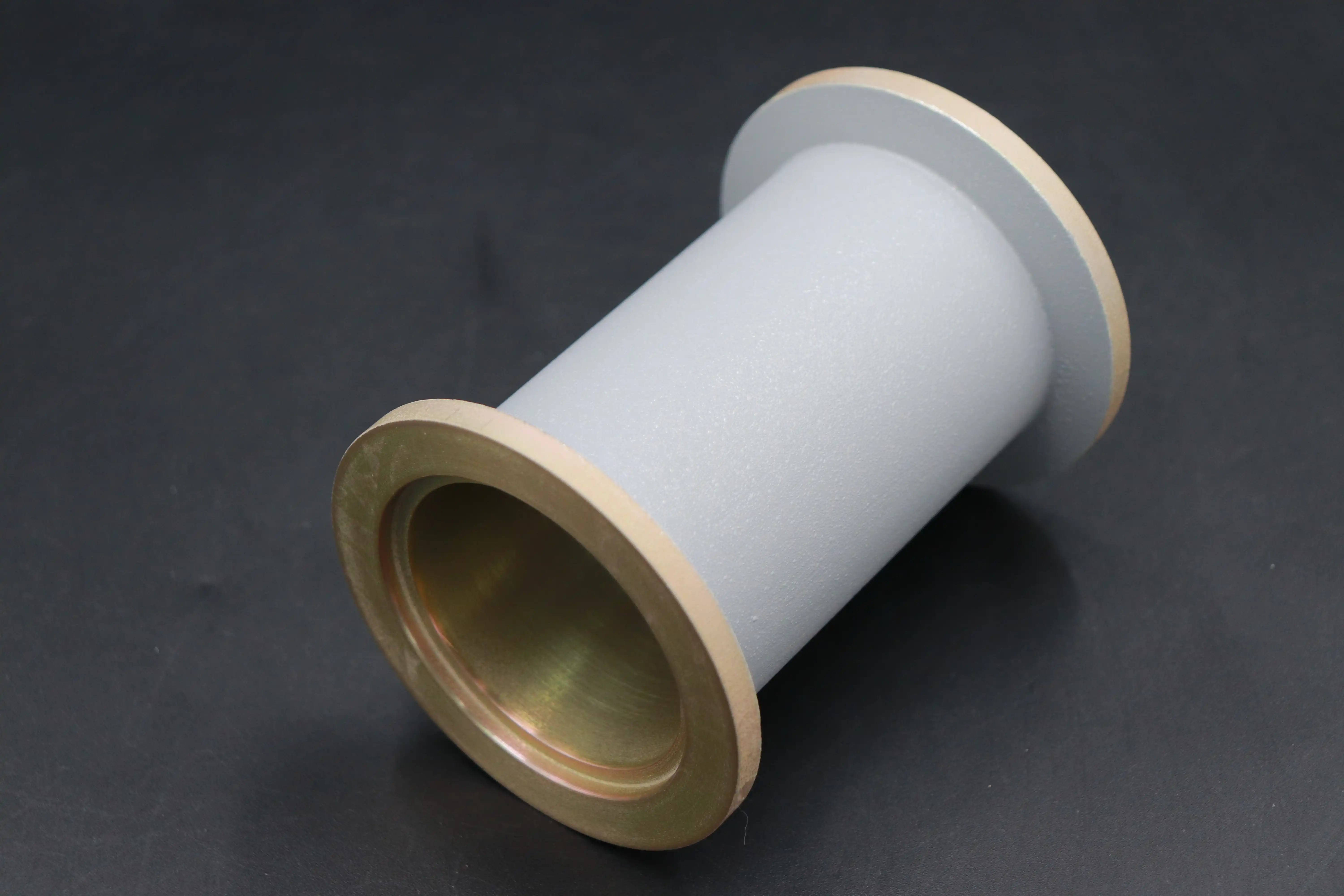

Circular straight waveguides represent a significant advancement in electromagnetic wave transmission technology, offering numerous advantages over alternative waveguide configurations. These specialized components, characterized by their cylindrical cross-section, have gained prominence across various high-frequency applications due to their superior performance characteristics. The Circular Straight Waveguide stands apart from rectangular, elliptical, and other waveguide geometries through its unique ability to maintain signal integrity while minimizing losses across broad frequency ranges.
Superior Electromagnetic Performance Characteristics
Enhanced Mode Propagation Capabilities
Circular Straight Waveguide structures excel in supporting specific electromagnetic wave modes that provide significant advantages in many applications. Unlike rectangular waveguides that primarily support TE (Transverse Electric) and TM (Transverse Magnetic) modes with distinct cutoff frequencies, circular waveguides offer more flexibility in mode propagation. The cylindrical geometry allows for the efficient transmission of circularly symmetric TE₀₁ modes, which experience remarkably low attenuation at higher frequencies. This characteristic makes Circular Straight Waveguide components particularly valuable in millimeter-wave systems operating between 30 GHz and 110 GHz. Advanced Microwave's circular waveguides are precisely manufactured to maintain these mode propagation advantages across their entire product range from WR10 to WR2300, ensuring optimal performance regardless of the specific frequency requirements. The superior mode propagation capabilities directly translate to improved signal quality in telecommunications infrastructure, satellite communications, and defense radar systems where maintaining signal fidelity over distance is paramount. Additionally, these propagation characteristics enable more efficient power handling, as the electromagnetic fields distribute more evenly across the circular cross-section, reducing the likelihood of dielectric breakdown or arcing at high power levels.
Superior Bandwidth and Frequency Response
One of the most significant advantages of Circular Straight Waveguide systems lies in their exceptional bandwidth capabilities and frequency response characteristics. The circular geometry provides a more uniform frequency response across broad operating ranges, from as low as 1 GHz to as high as 110 GHz in Advanced Microwave's product offerings. This wide frequency coverage makes them exceptionally versatile components for multiband applications. The circular cross-section minimizes frequency-dependent distortion effects that commonly plague rectangular waveguides, particularly at band edges. This translates to more consistent performance across the entire operating band, with fewer variations in phase velocity and group delay – critical parameters for maintaining signal integrity in high-speed data transmission systems. Furthermore, the smooth transition between frequency bands makes Circular Straight Waveguide components ideal for broadband applications requiring continuous coverage across multiple traditional waveguide bands. The carefully engineered dimensions of these components, with their precisely controlled circular inner diameters, ensure optimal frequency response while minimizing unwanted resonances or cutoff effects. Advanced Microwave's manufacturing processes maintain strict dimensional tolerances throughout production, guaranteeing that each waveguide delivers the expected bandwidth performance regardless of size, from the smallest WR10 components to the largest WR2300 structures.
Lower Attenuation and Power Losses
Circular Straight Waveguide designs fundamentally offer superior performance in minimizing signal attenuation and power losses compared to other waveguide geometries. The circular cross-section eliminates the sharp corners found in rectangular waveguides where current concentrations can lead to increased resistive losses. This advantage becomes particularly pronounced at higher frequencies, where skin effect losses typically dominate. Advanced Microwave's circular waveguides, manufactured from high-conductivity materials like aluminum, copper, or brass with conductive gold or silver plating, further enhance this inherent advantage. The surface finish quality, maintained at ≤1.20:1 VSWR across the product line, ensures minimal reflection losses and maximum power transfer. This low-loss characteristic makes Circular Straight Waveguide components especially valuable in long-distance transmission applications, such as satellite ground station links or cellular network backhaul systems, where cumulative losses can significantly impact system performance. Additionally, the reduced attenuation directly correlates with improved power handling capabilities, making these components ideal for high-power radar systems, broadcast transmitters, and industrial microwave applications where efficient power delivery is essential. The combination of optimized geometry and premium materials in Advanced Microwave's circular waveguides creates transmission systems that consistently deliver more power to the intended destination with less waste, improving overall system efficiency and reducing operating costs.
Mechanical and Structural Advantages
Enhanced Structural Integrity and Durability
Circular Straight Waveguide designs inherently provide superior structural integrity compared to rectangular or other non-circular waveguide geometries. The cylindrical form distributes mechanical stresses more evenly across the structure, eliminating stress concentration points that can lead to structural failure under vibration, thermal cycling, or physical impact. This uniform stress distribution makes Circular Straight Waveguide components exceptionally resilient in demanding environments, such as aerospace applications, where mechanical reliability is paramount. Advanced Microwave's manufacturing processes further enhance this inherent structural advantage through precise material selection and quality control. Their circular waveguides are crafted from premium aluminum, copper, or brass, materials carefully chosen for their combination of excellent electrical conductivity and mechanical properties. The seamless construction methods employed eliminate weak points in the waveguide structure, ensuring consistent performance even under extreme conditions. Additionally, the circular geometry provides natural resistance to deformation from external pressure or vacuum conditions, maintaining critical internal dimensions that directly impact electrical performance. This structural stability ensures that the waveguide's electrical characteristics remain consistent throughout its operational lifetime, preventing gradual degradation of system performance due to mechanical wear or environmental factors. For applications in harsh environments, such as defense systems or outdoor telecommunications infrastructure, this durability translates directly to reduced maintenance requirements and extended service life.
Installation and Integration Flexibility
Circular Straight Waveguide systems offer significant advantages in installation flexibility and system integration compared to alternative waveguide types. The rotational symmetry of circular waveguides greatly simplifies installation procedures, as there is no need to maintain specific orientation alignment between connected components. This feature is particularly valuable in complex systems where space constraints may limit access during installation or maintenance. Advanced Microwave's circular waveguides come equipped with various flange options, including CPR, UBR, or custom-designed flanges, further enhancing installation versatility across different system architectures. The uniform exterior dimensions of circular waveguides also facilitate more efficient routing through confined spaces, with the ability to incorporate gradual bends without significant impact on electrical performance. This installation flexibility directly translates to reduced system integration complexity and lower installation costs, particularly in large-scale deployments such as telecommunications networks or satellite ground stations. Additionally, the circular geometry more readily accommodates specialized mounting hardware and support structures, making these waveguides easier to secure in applications subject to vibration or movement. The compatibility with standard connection interfaces ensures seamless integration with other RF components, while the availability of custom flange options enables specialized connections when standard solutions are insufficient. Advanced Microwave's comprehensive range of circular waveguide sizes, covering WR10 to WR2300, ensures that system designers can maintain consistent installation methodologies across different frequency bands within the same system.
Manufacturing Precision and Consistency
The manufacturing advantages of Circular Straight Waveguide components translate directly to performance benefits in the field. The circular geometry fundamentally simplifies certain critical manufacturing processes, enabling more precise control of internal dimensions and surface finish quality. Advanced Microwave leverages this inherent advantage through sophisticated production techniques that maintain exceptional dimensional accuracy and consistency across their entire product range. The precision-controlled circular inner diameters, manufactured to strict tolerances, ensure reliable electrical performance that meets or exceeds the specified VSWR ≤1.20:1 requirements. This manufacturing precision is particularly critical at higher frequencies, where even minor dimensional variations can significantly impact performance. The circular cross-section also enables more uniform application of conductive plating materials, such as gold or silver, ensuring consistent surface conductivity without the irregularities that often occur at the corners of rectangular waveguides. This uniform plating directly contributes to the superior signal integrity and low-loss characteristics of these components. Furthermore, Advanced Microwave's ISO:9001:2008 certified manufacturing processes incorporate comprehensive quality control procedures, including advanced microwave measurement techniques up to 110 GHz, to verify that each Circular Straight Waveguide meets rigorous performance standards before shipment. This commitment to manufacturing excellence ensures that system designers can rely on consistent performance across multiple production runs, eliminating the variability concerns that often plague more complex waveguide geometries. The simplified manufacturing geometry also contributes to more efficient production workflows, enabling faster turnaround times on both standard and custom components.
Application-Specific Performance Benefits
Telecommunications Infrastructure Advantages
Circular Straight Waveguide technology offers compelling advantages specifically tailored to modern telecommunications infrastructure requirements. The superior signal integrity characteristics of circular waveguides directly address the increasing bandwidth demands of 5G networks and beyond, where minimizing signal distortion and maximizing spectral efficiency are paramount concerns. Advanced Microwave's circular waveguides, with their broad frequency coverage from 1 GHz to 110 GHz, provide the versatility needed to support multiple telecommunications bands within unified infrastructure designs. The low-loss characteristics of Circular Straight Waveguide components significantly extend the effective range of high-frequency transmission systems, reducing the number of repeater stations required in large-scale network deployments and consequently lowering infrastructure costs. This efficiency becomes increasingly important as telecommunications networks expand into millimeter-wave frequencies, where atmospheric attenuation compounds the challenges of maintaining signal quality over distance. Additionally, the structural durability of circular waveguides ensures reliable performance in outdoor telecommunications installations exposed to weather extremes, reducing maintenance requirements and increasing network uptime. The optimized propagation characteristics enable more efficient frequency reuse in densely populated areas, improving overall network capacity without increasing spectrum allocation. Advanced Microwave's circular waveguides, with their carefully controlled VSWR ≤1.20:1 specifications, ensure minimal signal reflections that could otherwise create interference issues in complex network architectures. Furthermore, the availability of customized solutions through Advanced Microwave's OEM services enables telecommunications providers to address specific deployment challenges with tailored waveguide configurations that optimize performance for particular environmental or technical constraints.
Aerospace and Defense System Benefits
The unique characteristics of Circular Straight Waveguide technology provide critical advantages in demanding aerospace and defense applications. The exceptional power handling capabilities of circular waveguides make them ideal for high-power radar systems, electronic countermeasures, and other defense electronics where signal strength and reliability are mission-critical. Advanced Microwave's circular waveguides, manufactured from premium materials with conductive gold or silver plating, deliver the precise electrical performance required for sensitive defense systems operating across frequency ranges from 1 GHz to 110 GHz. The reduced weight of circular waveguides compared to equivalent rectangular variants offers significant advantages in aerospace applications, where every gram impacts fuel efficiency and payload capacity. This weight reduction becomes especially valuable in satellite communications systems, where launch costs are directly tied to component weight. The superior structural integrity of Circular Straight Waveguide components ensures reliable performance under the extreme vibration, acceleration, and temperature fluctuations encountered in aerospace environments. This reliability translates directly to increased mission success rates and reduced maintenance requirements for critical systems. Additionally, the simplified installation characteristics of circular waveguides contribute to more efficient assembly and integration of complex defense electronic systems, reducing production time and costs. Advanced Microwave's ISO:9001:2008 certified manufacturing processes ensure that each component meets the stringent quality standards required for defense applications, with comprehensive testing confirming performance before integration into critical systems. The availability of custom specifications through Advanced Microwave's OEM services enables defense contractors to obtain precisely tailored waveguide solutions that address the unique requirements of specialized radar, communication, or electronic warfare systems, from rapid prototyping through full-scale production.
Scientific Research and Industrial Applications
Circular Straight Waveguide technology delivers significant advantages across various scientific research and industrial applications where precision, reliability, and performance are essential requirements. The exceptional frequency response characteristics and mode stability of circular waveguides make them invaluable tools in scientific experiments involving high-frequency electromagnetic phenomena, from particle accelerators to plasma research facilities. Advanced Microwave's circular waveguides, with their precisely controlled dimensions and surface properties, provide researchers with reliable components for constructing complex experimental setups requiring consistent electromagnetic performance. In industrial applications, the superior power handling capabilities of Circular Straight Waveguide components enable more efficient energy delivery in microwave heating, drying, and processing systems across industries from food processing to materials manufacturing. The reduced attenuation characteristics translate directly to improved energy efficiency and more uniform heating profiles, enhancing product quality while reducing operating costs. Additionally, the structural durability of circular waveguides ensures reliable performance in harsh industrial environments, where exposure to vibration, temperature extremes, or corrosive conditions can compromise less robust waveguide geometries. Advanced Microwave's comprehensive product range, covering waveguide sizes from WR10 to WR2300, provides solutions across the full spectrum of industrial frequency requirements, from low-frequency heating applications to high-precision measurement systems operating at millimeter-wave frequencies. The RoHS compliance of these components ensures they meet increasingly stringent environmental regulations for industrial equipment, simplifying regulatory compliance for equipment manufacturers. Furthermore, the advanced measurement capabilities at Advanced Microwave's laboratories, equipped with sophisticated testing equipment up to 110 GHz, enable precise characterization and verification of waveguide performance for critical research applications where exact electromagnetic parameters must be known with high confidence.
Conclusion
Circular Straight Waveguides represent the optimal choice for applications demanding superior signal integrity, mechanical durability, and versatile performance across broad frequency ranges. Their unique electromagnetic characteristics, combined with structural advantages, make them indispensable components in telecommunications, defense, aerospace, and scientific research. Advanced Microwave Technologies Co., Ltd. delivers industry-leading circular waveguide solutions with unparalleled quality and customization options.
Want to experience these advantages firsthand? Contact our expert team today to discuss your specific requirements and discover how our circular waveguide technology can elevate your system's performance. With our perfect supply chain system, professional R&D team, competitive pricing, and strong after-sales support, we're ready to become your trusted partner. Email us at sales@admicrowave.com to start the conversation.
